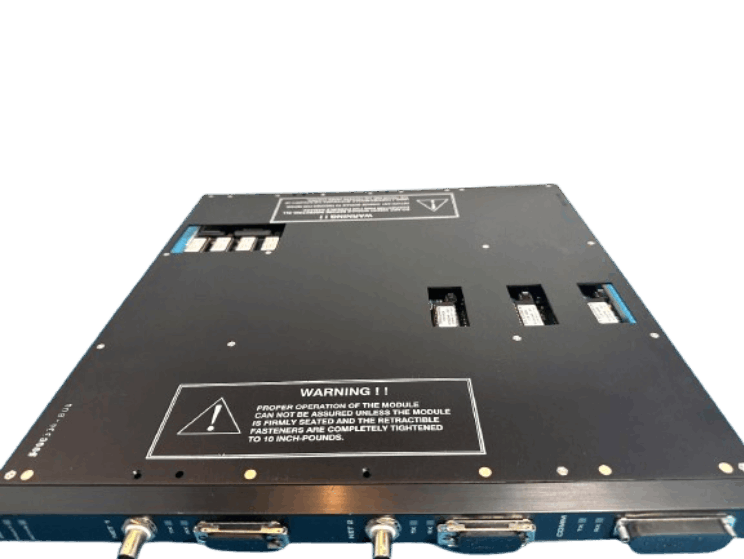

Triconex 4329 Network Communication Module
Item Number:4329
Brand: Tricnoex
Lead Time: In stock
Description:Network Communication Module
Payment: T/T
Product Description
Triconex 4329 Network Communication Module (NCM) is installed in a Tricon system to enable it to communicate with other Tricon systems and external hosts over an Ethernet (802.3) network. In addition to the functions of the NCM, the NCMG module can also perform time synchronization based on the GPS system.
The NCM provides two BNC ports and supports a variety of Triconex proprietary protocols and applications, as well as user-written applications. Two NCMs can be installed in one logical slot of the Tricon chassis and operate independently of each other, not in a hot standby relationship.
Function & Features
- Protocol and application support: Triconex 4329 supports a range of Triconex proprietary protocols and applications, such as TriStation, SOE, OPC Server, DDE Server, etc. It also supports user-written applications using the TSAA protocol.
- Port function: Triconex 4329 provides two BNC connector ports. The NET 1 port is specifically designed to support peer-to-peer communication and time synchronization protocols for a safety network consisting of only Tricon;
- Multi-module installation: Two Triconex 4329 NCMs can be installed in the logical slots of a Tricon chassis. They run independently, and the external host can read and write Tricon variables that have been assigned aliases.
Specifications
| Model | 4329 |
|
Ethernet (802.3) Ports |
2 × BNC connectors (RG58 50-ohm thin cable) |
|
External Transceiver Ports |
2 × 15-pin D-connectors |
|
Serial Port |
1 × RS-232 compatible port |
|
Port Isolation |
500 VDC minimum |
|
Supported Protocol |
TSAA (TCP/UDP/IP/802.3) |
FAQ
Q: What is the brand?
A:Tricnoex
Q: What is the type?
A:Network Communication Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
