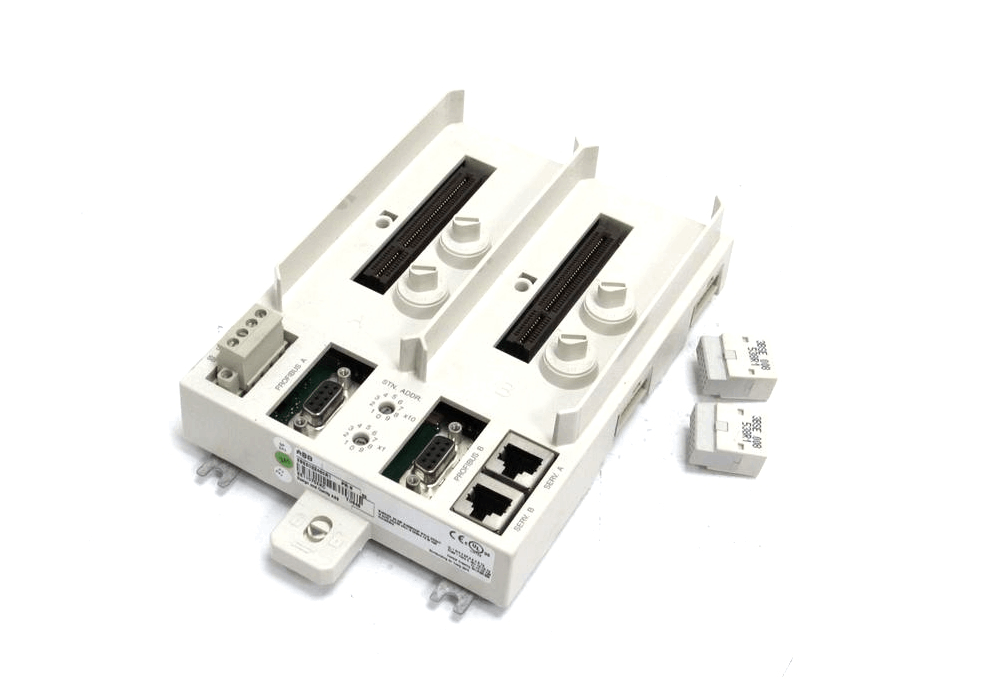

ABB TU847 3BSE022462R1 Module Termination Unit
Item Number:TU847 3BSE022462R1
Brand: ABB
Lead Time: In stock
Description:Module Termination Unit
Payment: T/T
Product Description
ABB TU847 3BSE022462R1 TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.
Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).
Function & Features
• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• ModuleBus connections.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
Specifications
|
Parameter |
Details |
| Series | 800xA |
| Model | TU847 |
| Ordering Number | 3BSE022462R1 |
|
Primary Connector |
PROFIBUS, DSUB9 connector |
|
Service Ports |
RJ45 connector for network connections |
|
24 V Consumption (typical) |
N/A (Not applicable or not provided) |
|
ModuleBus Current Distribution - Maximum 5 V |
1.5 A |
|
ModuleBus Current Distribution - Maximum 24 V |
1.5 A |
|
Mechanical Keys |
36 different combinations, likely referring to connector configurations or jumper settings |
|
Acceptable Wire Sizes |
0.25-2.5 mm²; 24 - 14 AWG (American Wire Gauge) |
|
Recommended Torque for Connections |
0.5-0.6 Nm (Newton - meters) |
|
Stripping Length of Wire |
6-7.5 mm (0.24 - 0.30 inches) |
|
Rated Insulation Voltage |
50 V |
|
Dielectric Test Voltage |
500 V AC (alternating current) |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A:Module Termination Unit(MTU)
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
Loading comments...
ABB TU847 3BSE022462R1 Module Termination Unit
Item Number:TU847 3BSE022462R1
Brand: ABB
Lead Time: In stock
Description:Module Termination Unit
Payment: T/T
Product Description
ABB TU847 3BSE022462R1 TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.
Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).
Function & Features
• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• ModuleBus connections.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
Specifications
|
Parameter |
Details |
| Series | 800xA |
| Model | TU847 |
| Ordering Number | 3BSE022462R1 |
|
Primary Connector |
PROFIBUS, DSUB9 connector |
|
Service Ports |
RJ45 connector for network connections |
|
24 V Consumption (typical) |
N/A (Not applicable or not provided) |
|
ModuleBus Current Distribution - Maximum 5 V |
1.5 A |
|
ModuleBus Current Distribution - Maximum 24 V |
1.5 A |
|
Mechanical Keys |
36 different combinations, likely referring to connector configurations or jumper settings |
|
Acceptable Wire Sizes |
0.25-2.5 mm²; 24 - 14 AWG (American Wire Gauge) |
|
Recommended Torque for Connections |
0.5-0.6 Nm (Newton - meters) |
|
Stripping Length of Wire |
6-7.5 mm (0.24 - 0.30 inches) |
|
Rated Insulation Voltage |
50 V |
|
Dielectric Test Voltage |
500 V AC (alternating current) |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A:Module Termination Unit(MTU)
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
