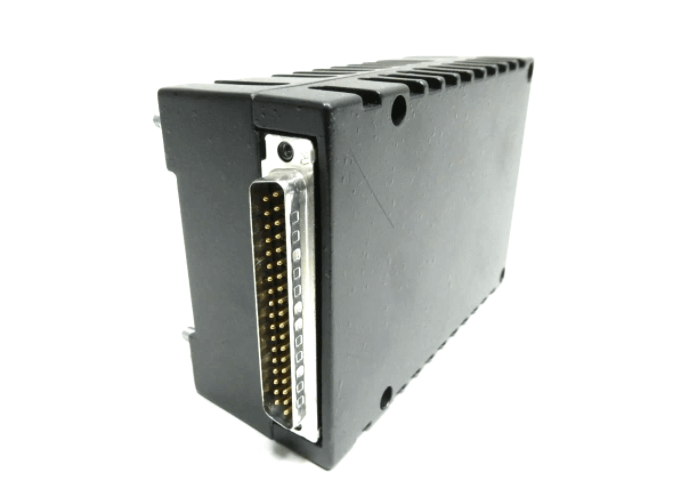

General Electric IS220PVIBH1A Vibration Monitor
Product Description
The IS220PVIBH1A is a vibration monitor from the GE Mark Vie series. This module can communicate via multi-channel sensor input and Ethernet. For example, it can monitor shaft vibration and eccentricity in gas or steam turbines, or check for looseness or wear on machinery.
Note:When replacing a module, the controller automatically sends the configuration file and no manual configuration is required.
Function & Features
Multi-channel Sensors
- Channels 1-8: Supports: Eddy-current sensors (proximitors) (displacement/broadband vibration), output accelerometers (channels 1-3 only), velocity sensors (velomitors), and low-frequency vibration sensors (seismic).
- Channels 9-12: Supports only eddy-current sensors (displacement signals).
- Channel 13: Can receive keyphasor or eddy-current sensor signals for phase reference.
IS220PVIBH1A hardware architecture:
- processor board (runs self-tests and loads firmware)
- BAFA board (signal conditioning)
- KAPA board (vibration signal processing).
Specifications
|
Parameter |
Details |
|
Model |
IS220PVIBH1A |
|
Belonged Series |
Mark Vie |
|
Common Mode Voltage |
≥5V DC |
|
CMRR (50/60Hz) |
≥50dB |
|
Sampling Rate |
Up to 100Hz (configurable: 3.125/6.25/12.5/25/50/100Hz) |
|
Length |
83mm |
|
Width |
42mm |
|
Height |
120mm |
|
Weight |
Approx. 0.5kg |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Vibration Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
