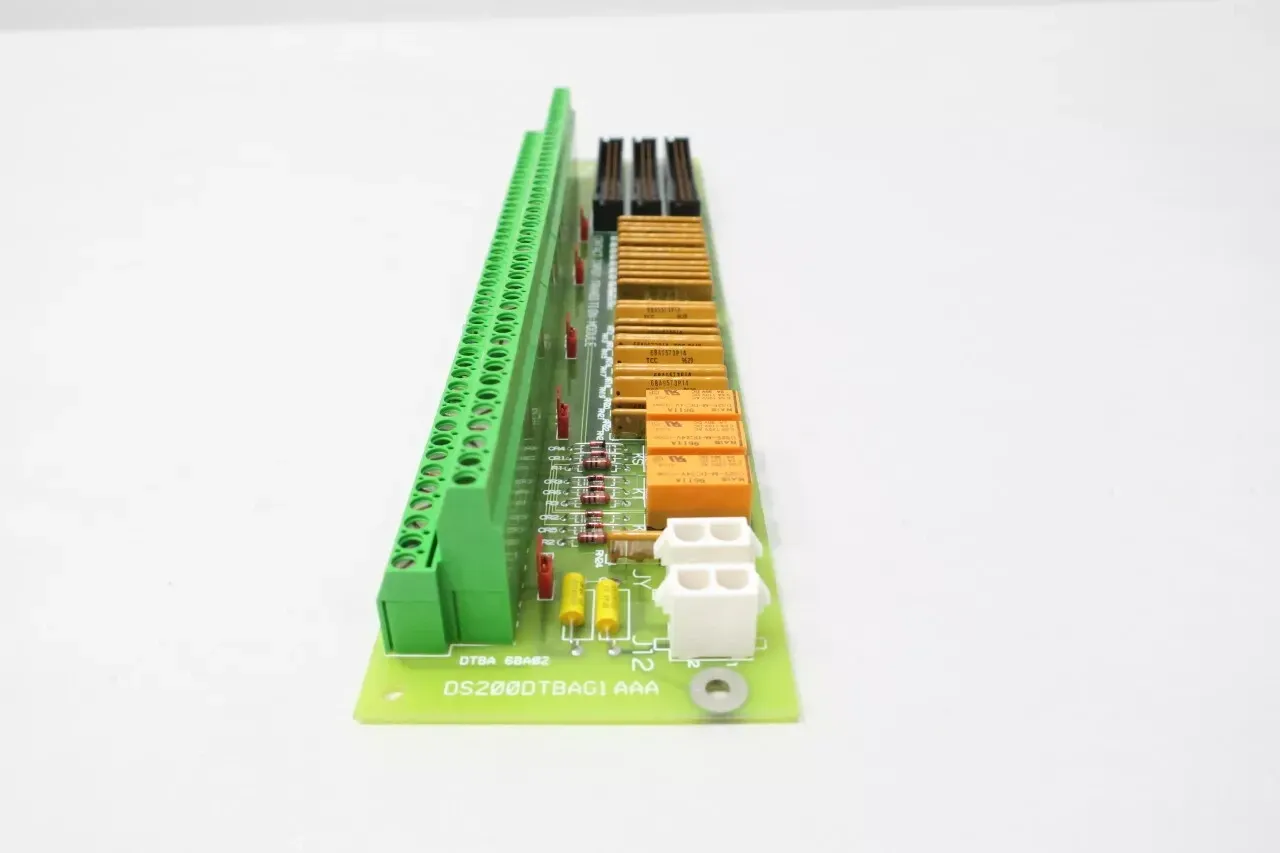

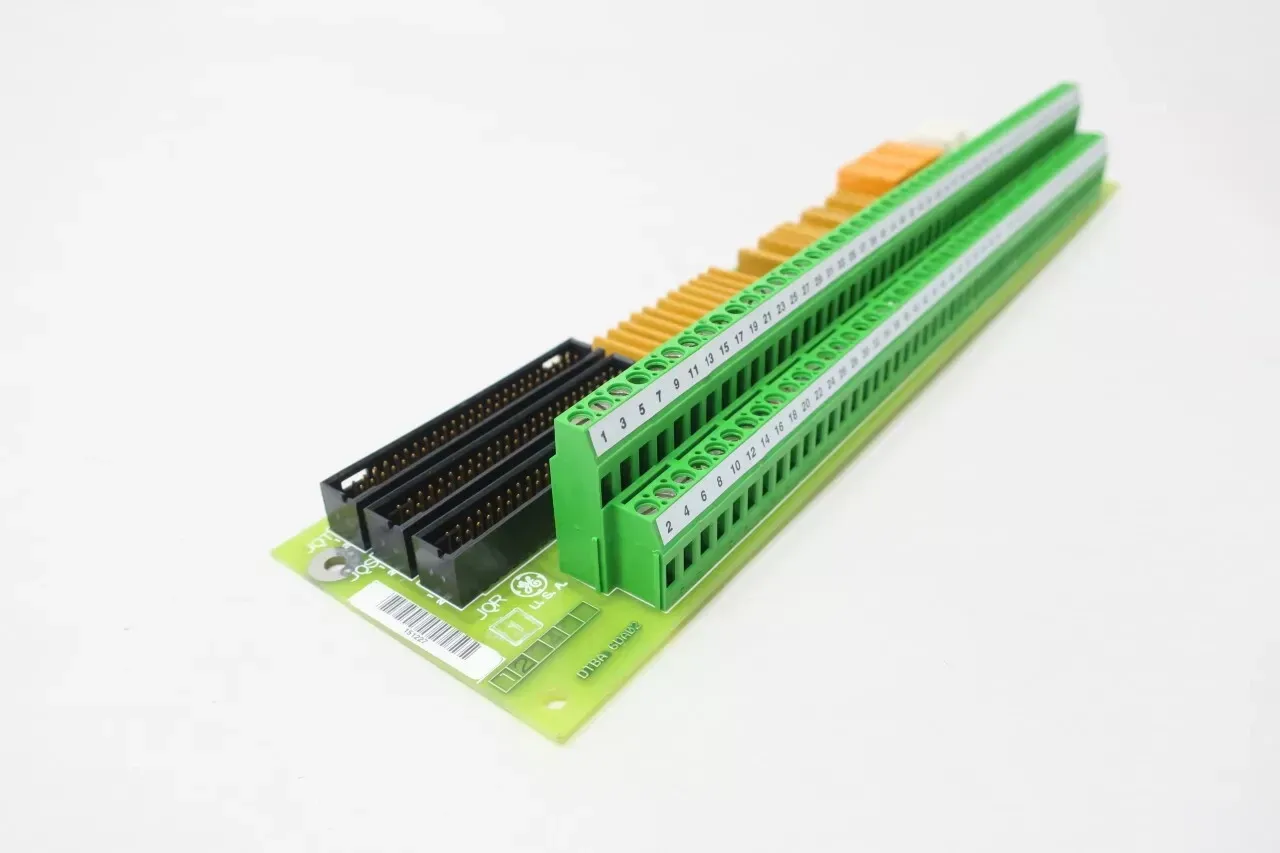

General Electric DS200DTBAG1A DS200DTBAG1AAA Digital Contact Terminal Board
Item Number:DS200DTBAG1A DS200DTBAG1AAA
Brand:GE
Lead Time: In stock
Description:Digital Contact Terminal Board
Payment: T/T
Product Description
GE DS200DTBAG1A DS200DTBAG1AAA is a digital contact terminal board developed by General Electric (GE), mainly used for signal connection and terminal processing in industrial automation and control systems. This module is part of the GE Mark V series control system, and the contact input terminal module (DTBA) can be installed in the Q11, Q21 and Q51 positions.
Fuctions & Features
Contact Input Connections: The GE DS200DTBAG1A terminal board serves as a contact input terminal block (DTBA) and can be installed in positions Q11, Q21, and Q51.
Optical Isolation: On the TCDA board, each contact input is optically isolated.
Excitation Voltage Supply: The GE DS200DTBAG1A terminal board allows the supply of excitation voltage to the contact input DTBA and DTBB terminal boards in the digital core, the excitation voltage can be selected from 125 V DC or 24 V DC0 from the core.
Contact Sense Inversion: For fail-safe contact input functionality, the input can be configured in the IO configuration of the TCDA to invert the contact sense.
Specification
|
Item |
Details |
|
Module Model |
DS200DTBAG1A / DS200DTBAG1AAA |
|
Module Type |
Digital Contact Terminal Board |
|
Series |
GE Mark Series Control System |
|
Input Voltage |
Can accept a power input of either 125 V dc or 24 V dc for different functions and configurations. |
|
Power Source |
Obtain the 125 V dc or 24 V dc power from the power distribution core. |
