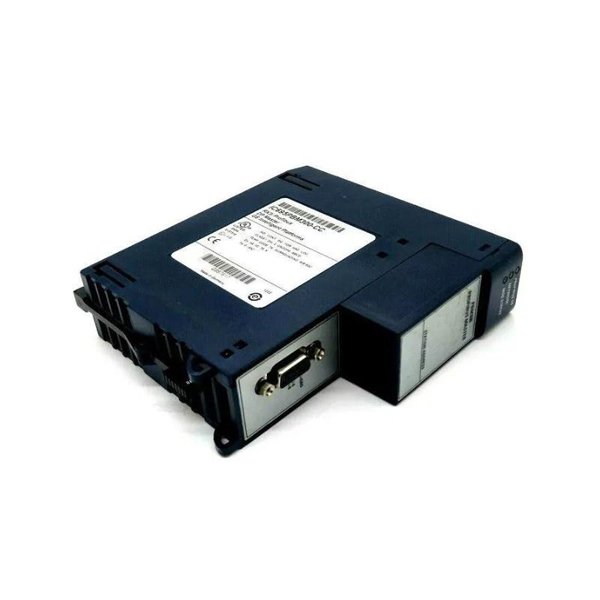

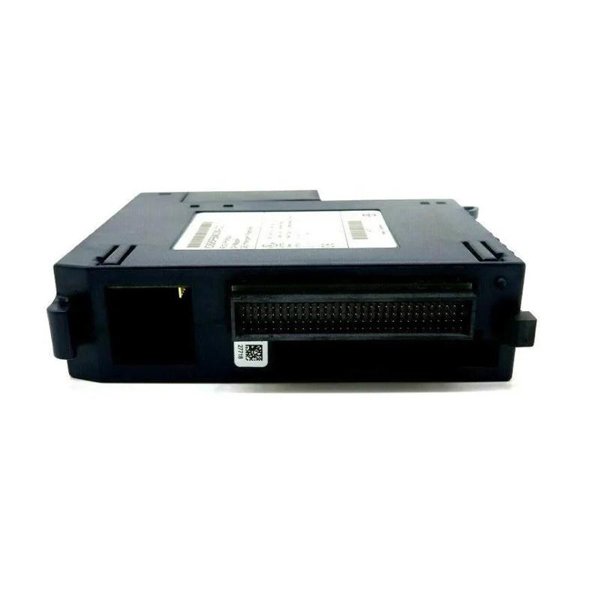

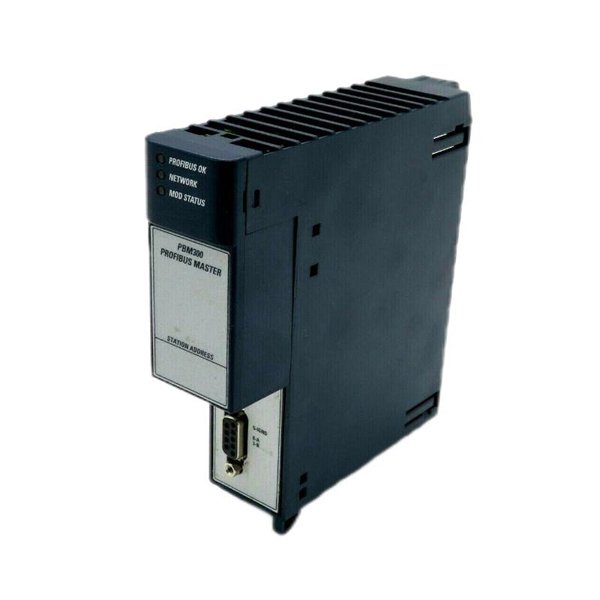

General Electric IC695PBM300 RX3i Fieldbus Master Module

The GE IC695PBM300 is a high-performance Programmable Battery Module designed for use with GE’s PACSystems RX3i programmable automation controllers (PACs). This module ensures uninterrupted operation of the controller by providing backup power during main power failures. It is a critical component for applications requiring data retention and continuous operation in industrial automation environments.

The IC695PBM300 is compatible with various RX3i CPU modules and is designed for easy installation and maintenance. Its robust construction and reliable performance make it suitable for harsh industrial environments.

Product Parameters

Product Applications

The GE IC695PBM300 is widely used in industries where backup power is essential for maintaining controller operations. Key applications include:

• Industrial Automation – Ensures uninterrupted operation of PLCs in manufacturing plants.

• Energy & Power Systems – Provides backup for power distribution control systems.

• Oil & Gas – Maintains critical operations in remote or hazardous locations.

• Water/Wastewater Treatment – Prevents data loss during power fluctuations.

• Transportation Systems – Supports rail and traffic control systems.

• Building Automation – Keeps HVAC and security systems running during outages.

Product Advantages

1. Reliable Backup Power – Ensures continuous operation during power interruptions.

2. Long Battery Life – Rechargeable lithium battery with extended backup duration.

3. Easy Installation – Plug-and-play design compatible with RX3i CPUs.

4. Wide Temperature Range – Operates in extreme industrial conditions.

5. Low Maintenance – No frequent battery replacements required.

6. Compact & Lightweight – Saves space in control cabinets.

7. High Compatibility – Works seamlessly with multiple RX3i CPU models.

8. Safety Certifications – Complies with CE, UL, and RoHS standards.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the IC695PBM300?

A1: It provides backup power to RX3i CPUs to retain memory and ensure continuous operation during power loss.

Q2: How long does the battery last on backup power?

A2: Typically 30+ days, depending on CPU load and environmental conditions.

Q3: Is the battery replaceable?

A3: Yes, the lithium battery is replaceable when it reaches end-of-life.

Q4: What CPUs are compatible with the IC695PBM300?

A4: It works with RX3i CPUs like IC695CPE310, IC695CPU315, and others in the series.

Q5: Does the module require any configuration?

A5: No, it is plug-and-play and does not need software configuration.

Q6: What is the operating temperature range?

A6: -20°C to 60°C (-4°F to 140°F).

Q7: How do I know when the battery needs replacement?

A7: The CPU can monitor battery status, and a low-battery alert is generated when replacement is needed.

Q8: Can the IC695PBM300 be used in hazardous environments?

A8: It is designed for industrial use but check specific hazardous location certifications if needed.

Q9: What are the dimensions and weight?

A9: 34 x 145 x 140mm, 0.31kg.

Q10: Is the module RoHS compliant?

A10: Yes, it complies with RoHS environmental standards.
