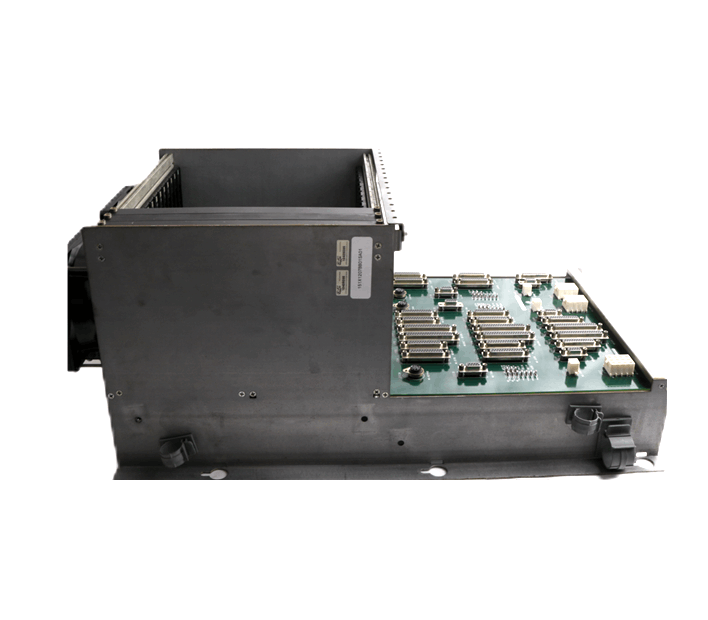

General Electric IS200EBKPG1C IS200EBKPG1CAA Exciter Backplane Board

IS200EBKPG1C, as the rack backplane excitation control module in GE's EX2100 series excitation control system, provides a backplane for the control board and a connection point for the I/O terminal board cable, building the basic architecture of the system hardware connection, enabling each control board and I/O device to be connected to each other, providing a physical channel for signal transmission and data interaction.

Function & Features

• Hardware architecture foundation: IS200EBKPG1C provides a backplane for the control board and a connection point for the I/O terminal board cable, building the basic architecture of the system hardware connection, so that each control board and I/O device can be connected to each other.

• Partitioning and power supply: The IS200EBKPG1C module is divided into three parts: M1, M2 and C. The M1 and M2 parts have ACLA, DSPX, EISB, EMIO and ESEL boards, and the C part has DSPX, EISB and EMIO boards. Each part has an independent power supply.

• Connection interface function: There are 24 DIN connectors on the upper part of the backplane, which can be used to connect various DIN-compliant devices or modules. The 27 D-SUB connectors and 3 circular DIN connectors on the lower part of the backplane can meet the signal connection needs of different types and specifications.

Specifications
