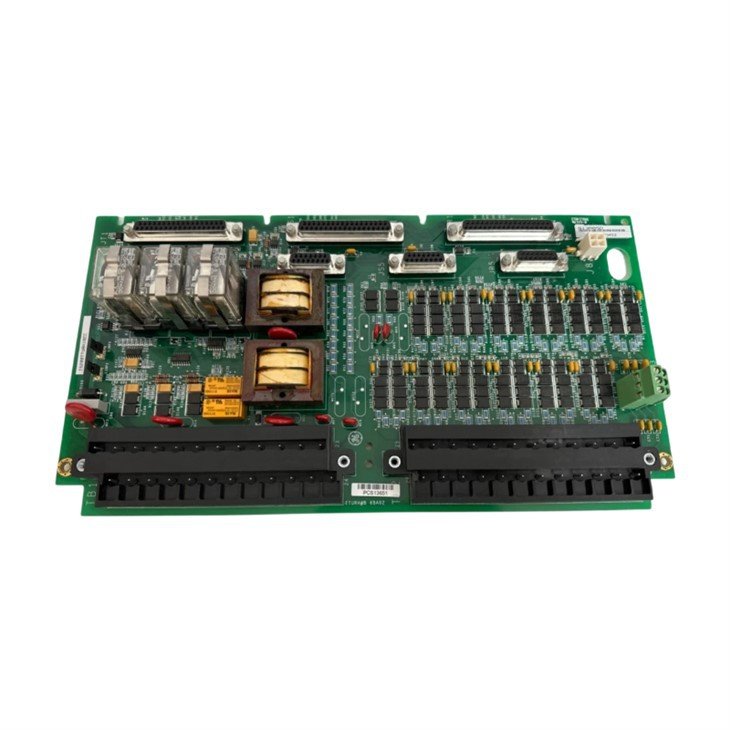

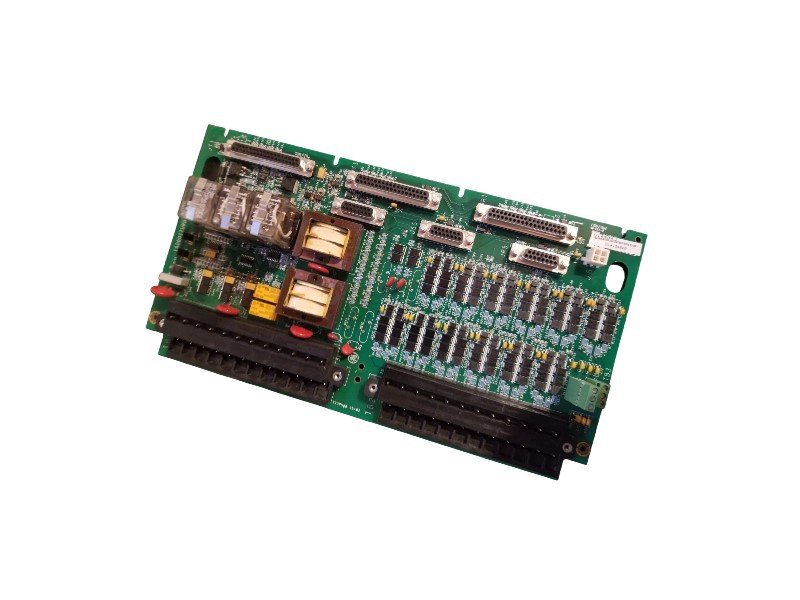

General Electric IS200TTURH1B Turbine Protection Input Terminal Board
Item Number:IS200TTURH1B
Brand:GE（General Electric）
Lead Time: In stock
Description:Turbine Protection Input Terminal Board
Payment: T/T
Product Description
GE IS200TTURH1B is a Turbine Protection Input Board (TPIB). It receives and processes signals related to turbine speed and voltage, controls the closing of the generator's main circuit breaker, and controls the power supply to the main circuit breaker coil. It receives signals from the TMR system through multiple connectors and communicates with the K25, K25P, and K25A relays to provide power to the DC main circuit breaker.
Specifications
|
Item |
Description |
| Product Model | IS200TTURH1B |
| Cooperating Modules | VTUR (Turbine Controller), VPRO, TREG |
| Sensor Type | 12 channels, supports passive magnetoresistive sensors |
| Input Sensitivity | 27 mV peak (detects speeds as low as 2 rpm) |
| Interface | Connected via terminal block TB3 |
| Signal Type | Measures AC |
| Shaft Voltage Test | -DC Test-AC Test |
| Maximum Two-Wire Resistance | 15 Ohms |
| Maximum Shaft Voltage Wiring Distance | Up to 300 meters (984 feet) |
|
Weight |
0.84kg |
Function & Features
Triple Relay Logic:
The IS200TTURH1B has three key relays, K25, K25P, and K25A, built in. All three relays must be closed to supply closing power to the main circuit breaker.
Speed Monitoring:
The IS200TTURH1B supports up to 12 passive reluctance sensors, measuring turbine speed by sensing the gear teeth. TTL active speed sensors are also optional.
Shaft Voltage/Current Monitoring:
The IS200TTURH1B monitors shaft voltage (frequency signal) and shaft current, and provides AC and DC test functions.
FAQ
Q: What are the main functions of the IS200TTURH1B?
A:Its core functions are threefold: monitoring, protection, and control.
Q: What should I pay attention to when purchasing this board?
A： The model number IS200TTURH1B must be exactly correct. Different suffixes may represent different versions.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
