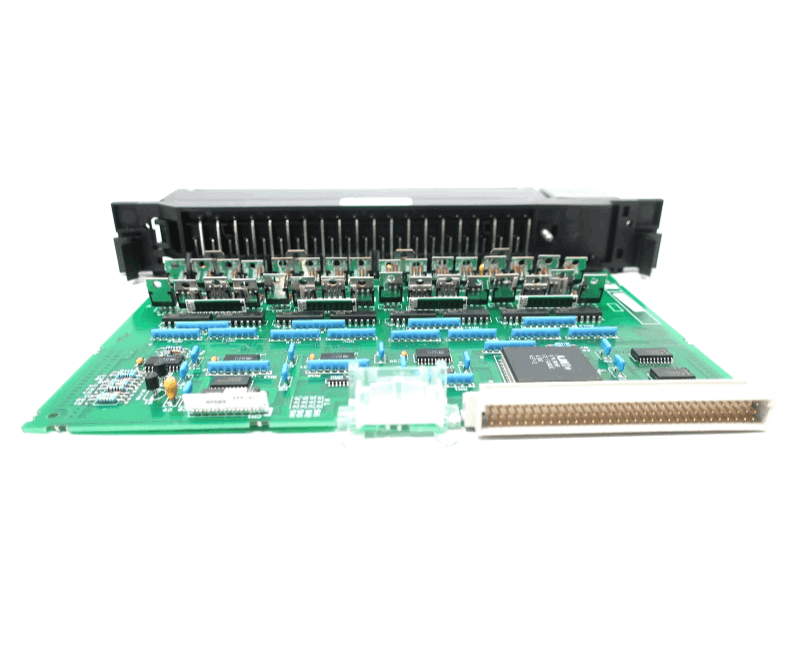

General Electric IC697MDL750 32-Point Output Module
Item Number:IC697MDL750
Brand: GE
Lead Time: In stock
Description:32-Point Output Module
Payment: T/T
Product Description
GE IC697MDL750 is a 24/48 VDC, 0.5 A output module with 32 output points, divided into four independently isolated groups of eight points each.This module can drive loads such as solenoid valves and motor starters, and supports I/O parameter configuration via MS-DOS or Windows programming software (running on Windows 95/NT systems) through Ethernet TCP/IP or the SNP port.
Function & Features
- Group current limit: Due to heat dissipation limitations of the IC697MDL750 module, the maximum total current per group (8 points) must not exceed 2 A.
- Software configuration: The I/O addresses of the IC697MDL750 module are configured using PLC programming software (running on Windows 95/NT or MS-DOS systems), with support for connections via Ethernet TCP/IP or the SNP port.
- Door label: The IC697MDL750 module is supplied with insertable cabinet door labels for recording wiring information, and colored stripes (blue/red) are used to quickly identify the module's voltage type.
Specifications
|
Parameter |
Details |
|
Model |
IC697MDL750 |
|
Rated Voltage |
24 or 48 VDC |
|
Outputs per Module |
32 (4 isolated groups of 8 outputs each) |
|
• 1500V between any output and backplane • 500V between output groups |
|
|
Output Voltage Range |
20 to 60 VDC |
|
Output Current |
• 0.5A max per point • 2A max per group |
|
Inrush Current |
10A max for 20ms |
|
Output Voltage Drop |
1V max (2Ω) |
|
Response Time |
• ON: ≤1ms • OFF: ≤1ms |
|
Output Leakage Current |
≤1mA |
|
5V Bus Current Draw |
0.25A |
|
Standards Compliance |
VME Standard C.1 |
