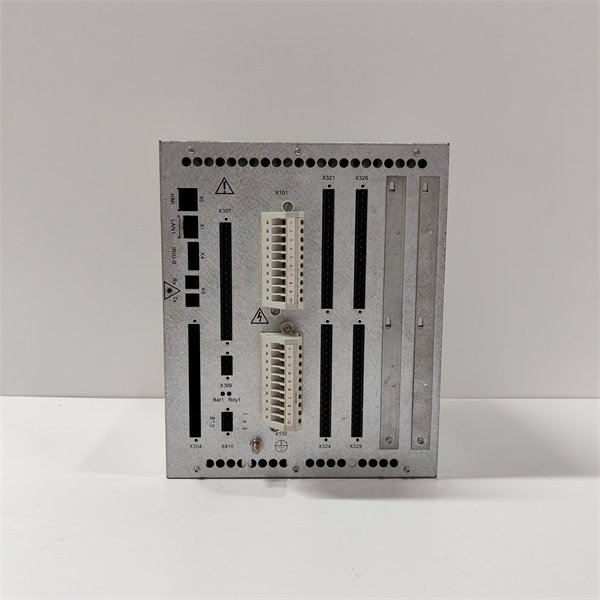

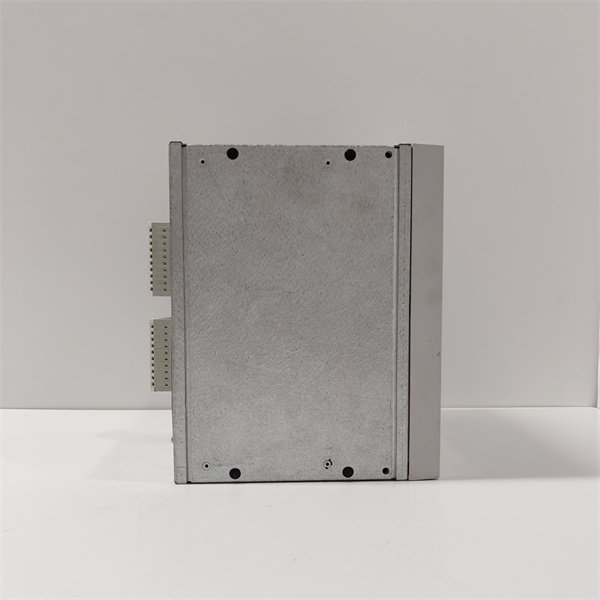

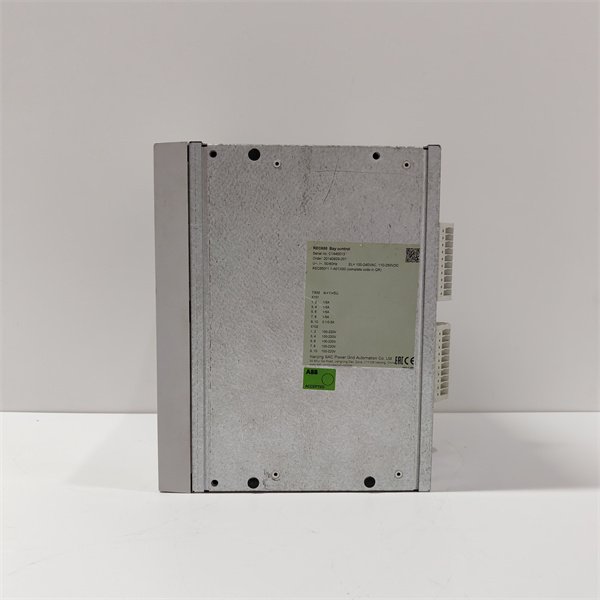

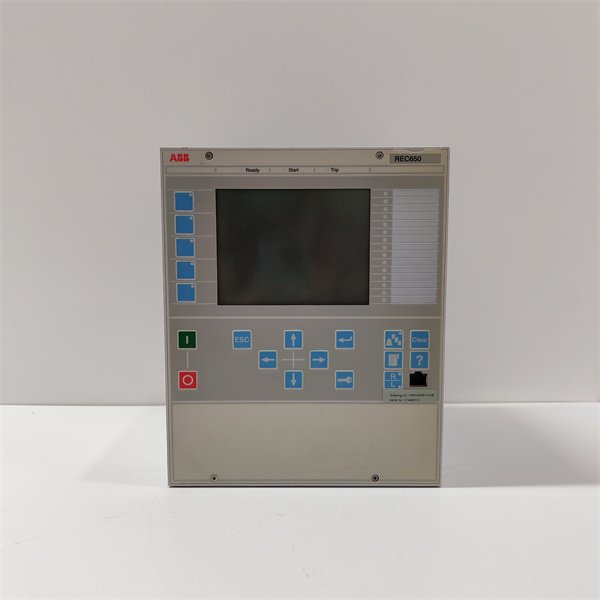

ABB REC650 1MRK008514-CB Bay control unit

The ABB REC650 1MRK008514-CB is a state-of-the-art bay control unit designed for protection, control, and monitoring of medium-voltage switchgear in power distribution networks. As a key component of ABB’s Distribution Automation system, this unit integrates advanced protection algorithms with flexible control logic, making it suitable for a wide range of applications from urban distribution grids to industrial power systems.

Equipped with a powerful dual-core processor and extensive I/O capabilities, the ABB REC650 1MRK008514-CB delivers real-time protection against faults such as overcurrent, earth fault, and thermal overload, while providing comprehensive control functions for circuit breakers, disconnectors, and other switchgear components. Its native support for IEC 61850, the global standard for substation communication, ensures seamless integration into modern digital substations.

Within power distribution systems, the ABB REC650 1MRK008514-CB acts as a intelligent node that connects field devices to the SCADA system. It enables remote operation, data logging, and condition monitoring, reducing the need for on-site interventions and improving network reliability. This combination of protection and automation features makes it an essential component in the transition toward smart grids.

Core advantages and technical highlights

Advanced protection functionality: The ABB REC650 1MRK008514-CB incorporates a comprehensive suite of protection algorithms, including adaptive overcurrent protection, directional earth fault detection, and breaker failure protection. These algorithms are designed to operate with ultra-fast response times (<20 ms) to minimize fault duration, reducing equipment damage and improving network stability. The unit’s adaptive settings automatically adjust to network changes, ensuring optimal protection performance even as the distribution grid evolves.

IEC 61850 compliance: As a fully IEC 61850-compliant device, the ABB REC650 1MRK008514-CB supports all key features of the standard, including sampled values (SV) and generic object-oriented substation event (GOOSE) messaging. This enables seamless interoperability with other IEC 61850 devices from different manufacturers, simplifies system integration, and future-proofs the installation for upcoming smart grid technologies. The unit’s configuration tool allows easy mapping of logical nodes, reducing engineering time by up to 30% compared to traditional devices.

Rugged design for harsh environments: Built to withstand extreme conditions, the ABB REC650 1MRK008514-CB operates reliably in temperatures ranging from -40°C to 70°C, making it suitable for deployment in remote areas with harsh climates. Its wide input voltage range (24-220 V DC/AC) ensures compatibility with various substation power supplies, while its IP40 front panel protection safeguards against dust and water ingress in outdoor switchgear installations.

Flexible communication options: The ABB REC650 1MRK008514-CB offers multiple communication protocols, including IEC 61850, Modbus TCP/IP, DNP3.0, and Profibus DP, enabling integration into both legacy and modern SCADA systems. Its dual gigabit Ethernet ports support redundant network configurations, ensuring uninterrupted communication even if one network path fails. This flexibility allows utilities to gradually migrate to digital substations without replacing existing infrastructure.

Detailed parameter table

Typical application scenarios

In urban distribution networks, the ABB REC650 1MRK008514-CB is installed in 10-35 kV ring main units (RMUs) to protect and control feeders supplying residential and commercial areas. It monitors load currents, detects faults, and automatically isolates faulty sections using GOOSE messaging to coordinate with other REC650 units in the network. This enables fast fault clearance and automatic restoration of supply to unaffected areas, reducing outage durations by up to 80%.

Within industrial power systems, such as manufacturing plants or data centers, the ABB REC650 1MRK008514-CB protects critical feeders supplying sensitive equipment. Its thermal overload protection prevents motor damage, while its under/overvoltage protection safeguards against voltage fluctuations that could disrupt production. The unit’s Modbus TCP/IP interface connects to the plant’s SCADA system, providing real-time data on power consumption and equipment status for energy management.

In renewable energy installations, such as solar farms or wind parks, the ABB REC650 1MRK008514-CB controls the connection of distributed generation to the grid. It monitors power quality parameters, detects islanding conditions, and disconnects the renewable source in case of grid faults, ensuring compliance with grid codes. Its IEC 61850 interface enables seamless integration with the renewable energy management system, optimizing power output and grid stability.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the ABB REC650 1MRK008514-CB, ensure the 19-inch rack is securely mounted in a clean, dry switchgear compartment with proper ventilation. Verify the operating voltage matches the supply (24/48/110/220 V DC/AC) and that the supply is fused at 2A. Required tools include a torque screwdriver (0.5-1.5 Nm), wire strippers, and a multimeter. Use shielded twisted-pair cables for analog and communication connections, with shields grounded at both ends to minimize electromagnetic interference.

Maintenance suggestions: Inspect the ABB REC650 1MRK008514-CB annually for loose connections, dust accumulation, or signs of corrosion; clean with compressed air if necessary. Verify protection settings quarterly using ABB’s PCM600 configuration software to ensure they match current network conditions. Monitor event logs regularly for fault records and communication errors. Perform a functional test annually by simulating faults and verifying correct operation of protection functions and output relays. Back up configuration data to a secure location whenever changes are made.

Service and guarantee commitment

The ABB REC650 1MRK008514-CB comes with a 5-year warranty from the date of commissioning, covering manufacturing defects and ensuring compliance with published performance specifications. ABB guarantees replacement of faulty units within 48 hours for critical applications, minimizing downtime in power distribution networks.

Technical support includes access to ABB’s global team of power system specialists, available 24/7 for assistance with configuration, protection coordination, and troubleshooting. Online resources include detailed application notes, firmware updates, and training materials specific to the ABB REC650 1MRK008514-CB. Customers can opt for extended service contracts that include annual preventive maintenance, software updates, and on-site support, ensuring the unit delivers reliable protection and control throughout its 20-year design lifespan.
