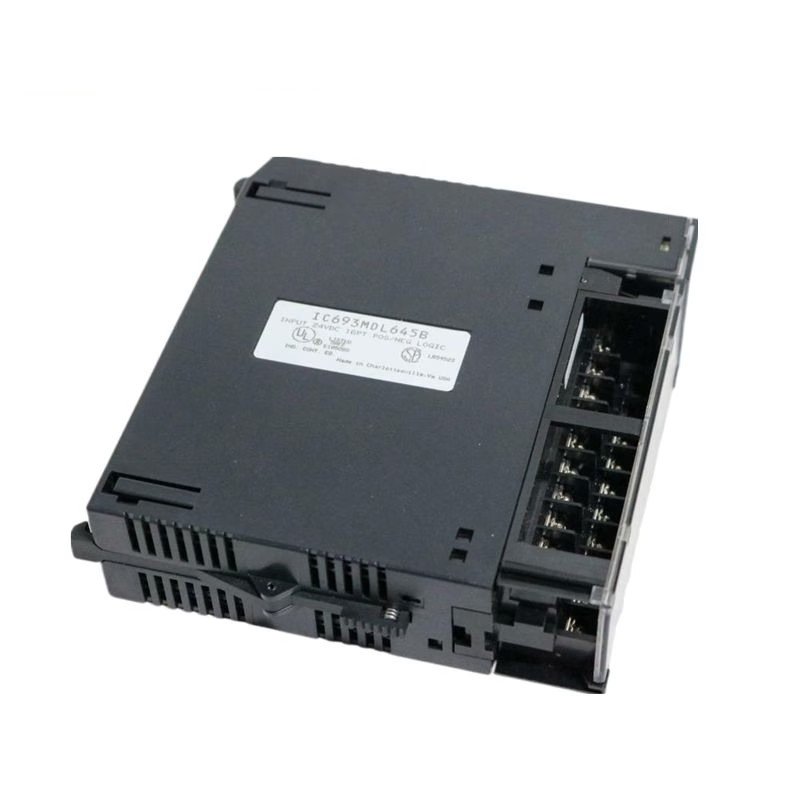

The GE Fanuc IC693MDL645B is a 16-point, 24 VDC input module designed for use in GE Fanuc Series 90-30 programmable logic controller (PLC) systems. It is commonly used in industrial automation to interface with input devices such as pushbuttons, limit switches, and proximity sensors. The module supports both positive and negative logic configurations, providing flexibility in wiring and sensor selection. Its non-isolated inputs share a common power input terminal, simplifying integration with control systems.

Technical Specifications

• Product Type: 24-Volt DC Positive/Negative Logic Input Module
• Manufacturer: GE Fanuc
• Application: Compatible with GE Series 90-30 PLC systems
• Number of Inputs: 16 discrete input points in one group, with a common power input terminal
• Input Voltage: 0 to +30 volts DC
• Input Current: 7 mA (typical) at rated voltage
• On-State Voltage: 11.5 to 30 volts DC
• Off-State Voltage: 0 to +5 volts DC
• On-State Current: 3.2 mA minimum
• Off-State Current: 1.1 mA maximum
• On Response Time: 7 ms typical
• Off Response Time: 7 ms typical
• Isolation: 1500 volts between field side and logic side
• Power Consumption:
  • 80 mA from 5V bus on backplane (all inputs on)
  • 125 mA from isolated 24V backplane bus or user-supplied power
• Dimensions: 5.08 in x 2.36 in x 1.97 in
