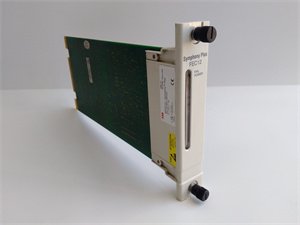

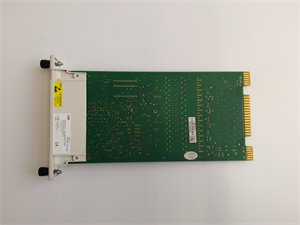

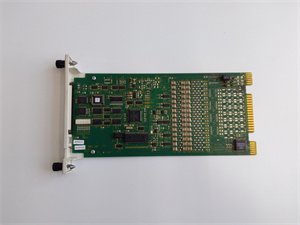

ABB SPFEC12 Profibus DP-V1 Slave Communication Interface

The ABB SPFEC12 is a high-performance Profibus DP-V1 slave communication module designed for mission-critical industrial automation systems. As an integral component of ABB’s S800 I/O series, this interface module enables seamless integration of field devices with distributed control architectures. The SPFEC12 acts as a protocol gateway, converting Profibus DP-V1 signals for use within ABB’s control ecosystems like System 800xA or AC 800M controllers.

Engineered for both standard and safety applications, the ABB SPFEC12 supports SIL 3 safety loops while delivering deterministic data exchange at speeds up to 12 Mbps. Its dual-channel architecture ensures continuous communication even during partial network failures. The module serves as the backbone for real-time I/O data transfer, enabling precise control of motors, valves, sensors, and safety interlocks across complex production environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

Functional Robustness:

The ABB SPFEC12 features galvanic isolation between PROFIBUS channels and backplane, eliminating ground loop interference. Its integrated diagnostics monitor signal integrity, cable breaks, and slave device status, triggering instant alarms via LED indicators and system events.

Safety-Certified Performance:

Certified for SIL 3 applications under IEC 61508, the module incorporates cyclic redundancy checks (CRC) and time-stamped data validation. This ensures failsafe communication in emergency shutdown (ESD) systems and fire/gas detection networks.

Operational Efficiency:

Hot-swappable design allows module replacement without system shutdown. Automatic baud rate detection simplifies commissioning, while the configurator-free setup reduces engineering effort. The SPFEC12 supports up to 244 bytes of I/O data per node, minimizing network congestion.

Environmental Resilience:

Operating reliably from -25°C to +70°C with 95% non-condensing humidity tolerance, the module withstands harsh industrial environments. Conformal-coated PCBs resist corrosion from dust, chemicals, and moisture.

Typical Application Scenarios

In oil & gas facilities, the ABB SPFEC12 integrates SIL 3-rated safety systems such as emergency shutdown valves and fire detection sensors across offshore platforms. It enables real-time monitoring of pressure/temperature transmitters via Profibus PA segments through DP/PA couplers.

Chemical plants leverage the SPFEC12 for batch process control, connecting flow meters and analytical instruments to distributed control systems. Its dual-channel redundancy ensures uninterrupted communication during reactor safety interlocks. In power generation, the module interfaces turbine vibration sensors and burner management systems, providing millisecond-level response for critical trip functions.

Installation, Commissioning and Maintenance Instructions

Installation Preparation:

Ensure DIN rail mounting area meets IP20 protection. Verify ambient temperature below 70°C. Use shielded PROFIBUS cable (Type A) with proper grounding. Disconnect power before module insertion. Align SPFEC12 with TB820 base unit guides until locking clip engages.

Maintenance Recommendations:

Quarterly inspect PROFIBUS connectors for corrosion. Monitor LED status (RUN/GREEN=normal; SF/RED=fault). Replace modules during planned shutdowns using hot-swap procedure: Unlock lever → Slide out module → Insert replacement → Verify diagnostics. Maintain firmware updates via Control Builder M software.

Service and Guarantee Commitment

ABB provides a 36-month warranty for the SPFEC12, covering manufacturing defects and premature failures. Global technical support includes 24/7 emergency hotlines and on-site assistance within 48 hours for critical failures. Lifecycle management guarantees spare parts availability for 15 years after product discontinuation.

Registered users receive firmware updates and access to ABB’s Knowledge Base containing configuration templates, SIL verification reports, and migration guides. All modules undergo 72-hour burn-in testing with temperature cycling prior to shipment, ensuring <0.1% FIT rate throughout operational life.
