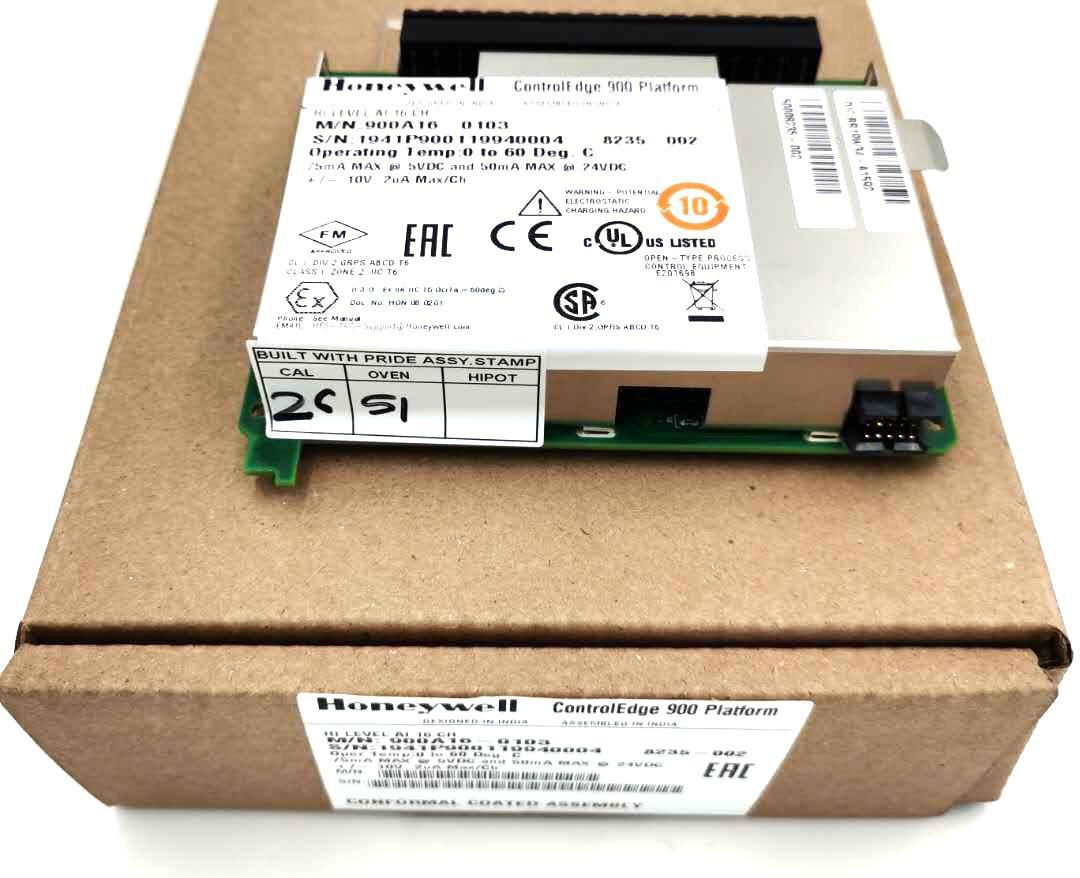

Honeywell 900A16-0103 High Level Analog Input Module
Item Number: 900A16-0103
Brand:Honeywell
Lead Time: In stock
Description: High Level Analog Input Module
Payment: T/T
Product Description
Honeywell 900A16-0103 is a high-level analog input module that supports 16 independently configurable voltage or current inputs. Each channel can be independently configured as a voltage or current input (customizable by the user point by point). The module has three status indicators:
Green (flashing): The module is operating normally and scanning.
Yellow (flashing): The channel is forced (simulation/test mode).
Red: Module failure.
Function & Features
- Input Configuration: The 900A16-0103 has a built-in 250Ω shunt resistor (enabled via DIP switch) to facilitate current signal measurement.
- Data Processing: The analog-to-digital (A/D) conversion is performed in synchronization with the CPU to eliminate data latency. All input signals are processed in parallel, so system scan time remains unchanged when extension modules are added.
- Wiring Method: The 900A16-0103 utilizes a 36-pin European-type terminal connector.
- Dual Calibration Mode: Model 900A16-0103 supports both factory calibration and field (on-site) calibration.
Specifications
|
Parameter |
Specification |
|
Model |
900A16-0103 |
|
Series |
HC900 |
|
Inputs per module |
16 (isolated) |
|
Input types |
V, mA |
|
Input Impedance |
>1 megohm for volts and 250 ohms for mA inputs |
|
Galvanic Input Isolation |
400 VDC point to point, solid state switching; 1K VDC to logic. |
|
Noise Rejection |
Series Mode >31dB; Common Mode >90dB at 120VAC |
|
Over-range limit |
+/- 10% for linear ranges (volts). |
|
A/D Converter |
One per module |
|
A/D Resolution |
±15 Bits |
|
Update rate |
100ms (Analog to Digital Converter per module) |
|
Long term Stability |
0.1% per year |
