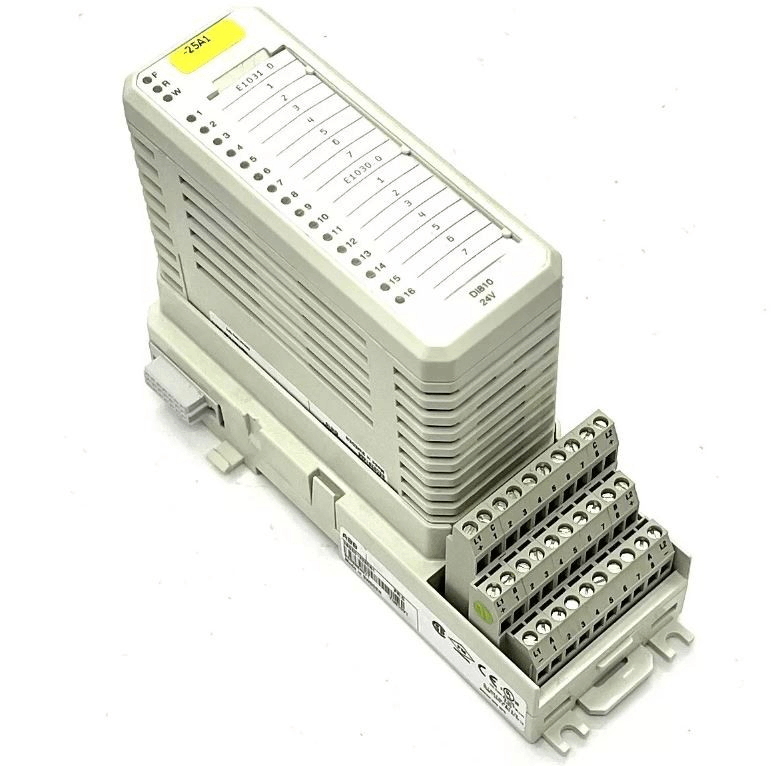

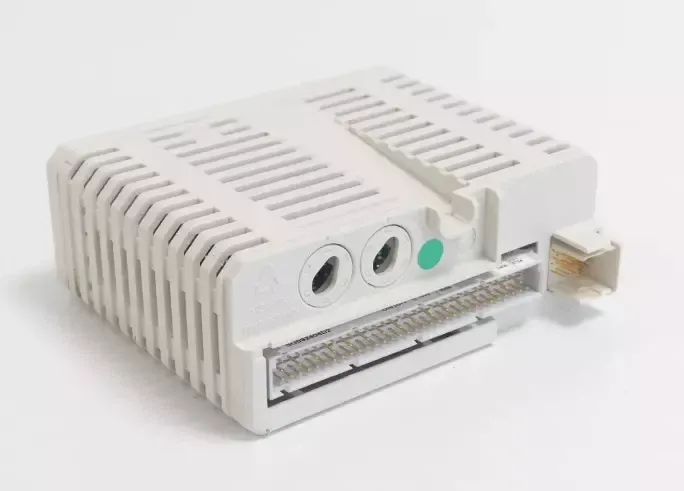

ABB DI810 3BSE008508R1 Digital Input 24V 16 Ch Module
Item Number:DI810 3BSE008508R1
Brand: ABB
Lead Time: In stock
Description:Digital Input 24V 16 ch Module
Payment: T/T
Product Description
ABB DI810 3BSE008508R1 is a digital input module primarily used in industrial automation and control systems. It is designed to receive digital signals-such as switch states or sensor outputs-and convert them into digital data for use by the control system. The ABB DI810 module features 16 digital input channels. Each channel includes a current-limiting component, EMC protection component, input status indicator LED, and an optical isolation barrier. If the voltage is lost, the process voltage monitoring input will generate a channel error signal, which can be read via the ModuleBus.
Fuctions & Features
- 16-channel digital input: supports 24V DC current sink input (current absorption type, the module provides a ground path for external sensors/switches).
- Wide voltage input range: The DI810 input voltage range is 18-30V DC, and the input current is 6mA when the standard input voltage is 24V DC, which can adapt to voltage fluctuations within a certain range.
- Isolated input grouping: two groups of isolated 8-channel inputs (16 channels in total). Each group has 8 channels and each contains a voltage monitoring input.
- Input status indicator: Each channel is equipped with an LED status light to display the signal status (ON/OFF).
Specification
|
Parameter |
Value |
|
Input voltage range, "0" |
-30..+5 V |
|
Input voltage range, "1" |
15..30 V |
|
Input impedance |
3.5 kΩ |
|
Type |
Digital Input |
|
Signal specification |
24 V d.c. |
|
Number of channels |
16 |
|
Width |
45 mm |
|
Depth |
102 mm |
|
Height |
119 mm |
|
Weight |
0.15 kg |
| Supervision | Process voltage, 1 per group |
| Front LED's | F(ault), R(un), W(arning), Channel 1-16 ("0" or "1") |
| Use with MTU | TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
Typical application scenarios
√valve status monitoring, motor operation feedback.
√ emergency stop circuit, safety interlock.
√ conveyor belt sensor, robot arm limit detection.
