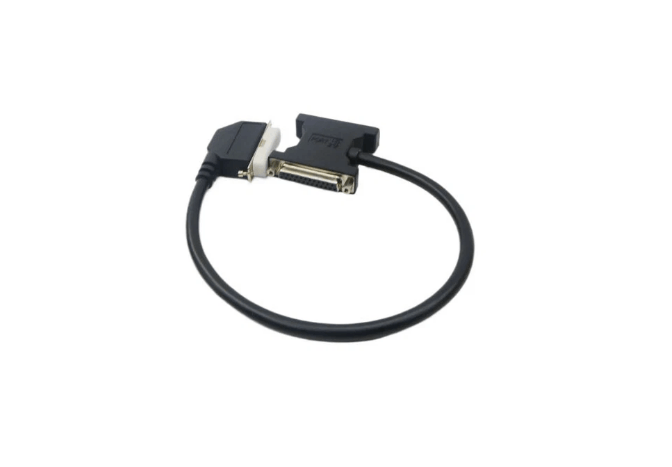

General Electric IC693CBL305 Wye-type Cable

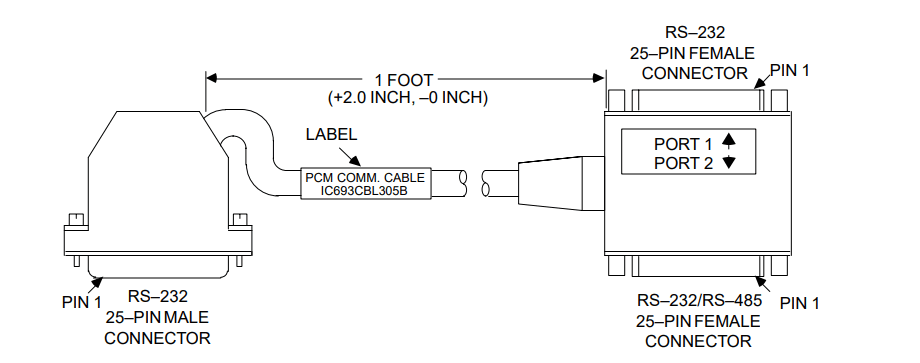

GE IC693CBL305 is a Wye-type (forked) cable for GE Fanuc series SCM modules. It can be used when both serial ports (Port 1 and Port 2) of an SCM (Serial Communication Module) need to be used simultaneously. This cable is a star-shaped cable that connects Port 1 and Port 2 on a single connector on the module, splitting them into two independent connectors. Applications requiring only a single SCM port do not require this cable, and it should not be used in multi-drop networks (see the note below).

Note: The IC693CBL305 star-shaped cable should not be used to connect an SCM to a multi-drop network, as it introduces signal reflections in the network. Multi-drop networks should be connected directly to the SCM serial connector via the cable.

Function & Features

• Applications: The GE IC693CBL305 is designed for use when both serial ports on the SCM need to be enabled simultaneously. Single-port applications do not require this module.

• Structure: The GE IC693CBL305 utilizes a star-shaped split design, splitting the dual ports on the module's single connector into two independent connectors.

• Restrictions: The GE IC693CBL305 is not intended for use in multi-point networks to avoid signal reflections that could affect network communication. Multi-point networks require a direct connection to the SCM serial connector.

Specifications

FAQ

Q: What is the brand?

A: GE

Q: What is the type?

A: Wye-type Cable

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
