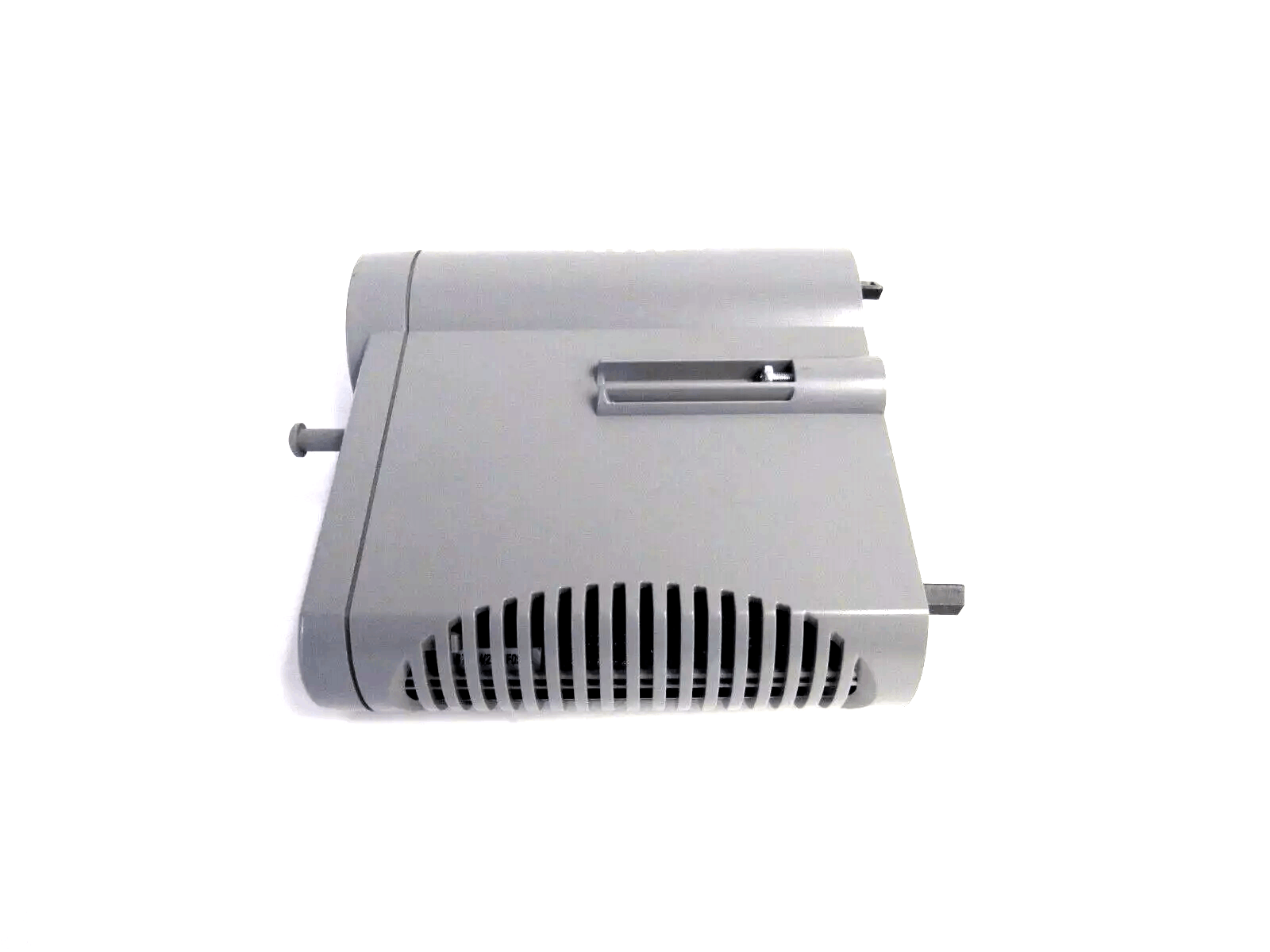

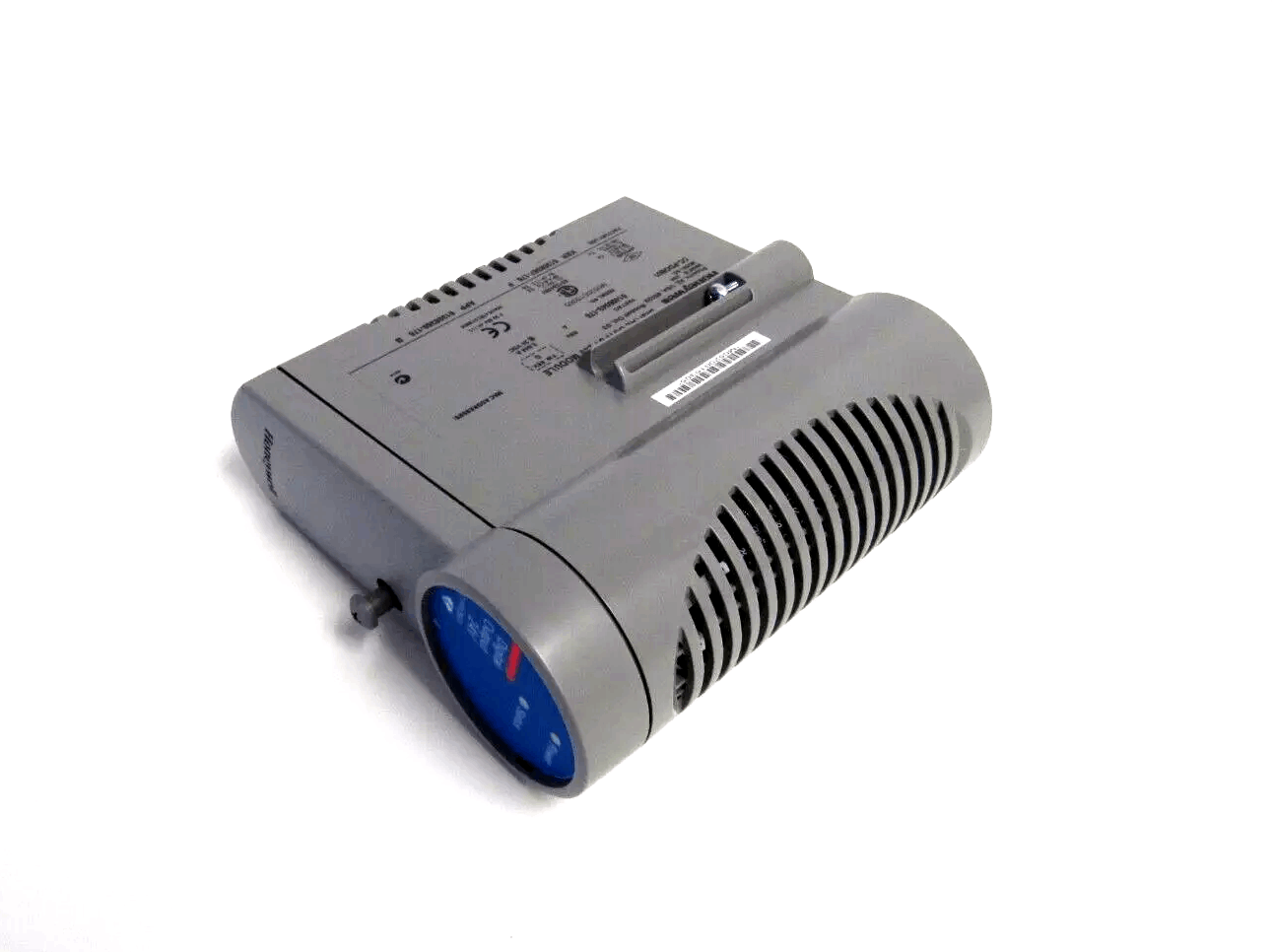

Honeywell CC-PDOB01 Digital Output Module

Honeywell CC-PDOB01 is a 24V DC digital output (DO) module. This module belongs to Honeywell Experion® PKS Series C I/O series.

It is a bus-​type 24VDC digital output module used to provide 24V digital output signals for other process equipment, solenoid valves and intermediate relays. It can support high-energy output and reduce the number of peripheral components in the output circuit.

It supports forward/reverse output and optional redundant configuration for controlling field devices such as solenoid valves, relays, and motors.

Features of CC-PDOB01

why choose Honeywell CC-PDOB01

Safety features: With safe state (FAILOPT) behavior, the output can be configured to hold the last value or switch to a safe value by channel. The safe value can be set by the user.

Short-circuit protection: Unique "fuseless" short-circuit protection function. When a short circuit occurs, the internal circuit detects and cuts off the field connection power supply. The channel remains powered off before the short circuit is repaired.

Output mode: Each channel can achieve latched, pulsed or pulse width modulated output.

Power supply selectable: Internal or external field power excitation can be selected. When an external power supply is selected, the output can be galvanically isolated from the Series C power supply system.

Specifications
