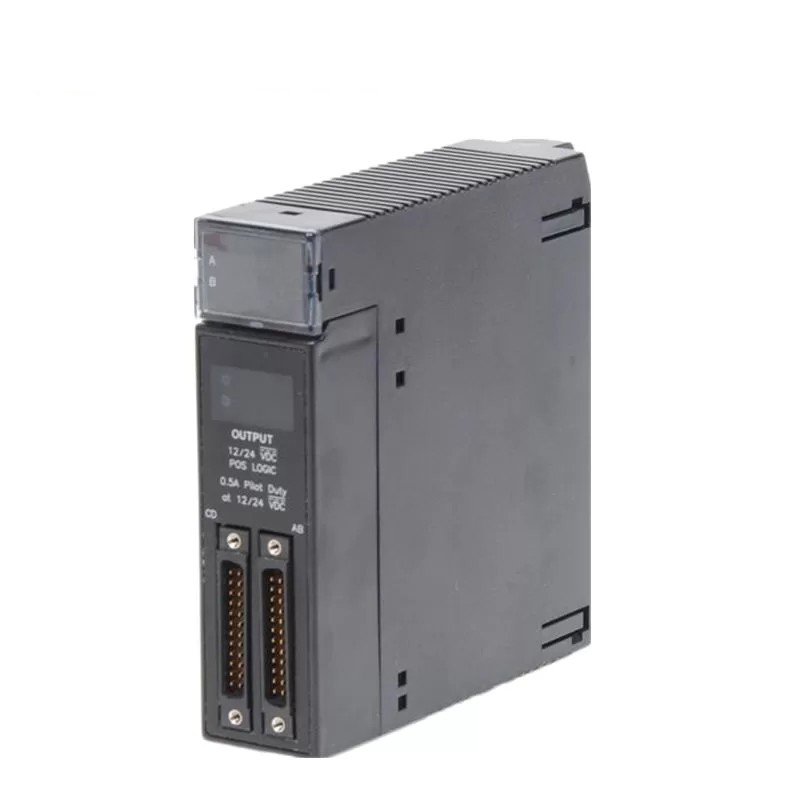

GE Fanuc IC693MDL753 Discrete Output Module

The GE Fanuc IC693MDL753 is a discrete output module for the Series 90-30 PLC system. It provides 32 output points to control external devices such as solenoids, relays, or motors. This module is ideal for industrial automation applications.

Key Features

• 32 Discrete Outputs: Control multiple devices flexibly with 32 separate output points.
• 12/24 Volt DC: Operates on either 12 or 24 VDC power supply, versatile for various applications.
• 0.5A Output Current: Each output delivers up to 0.5 amps, suitable for most small to medium-sized loads.
• Positive Logic: High logic state equals active output, simplifying logic operations.
• Isolated Groups: Outputs are divided into four isolated groups of eight, enhancing reliability.
• Dedicated Common: Each group features its own dedicated common, easing wiring and boosting noise immunity.
• Load Switching: Switches loads from +12 to +24 VDC with a tolerance of +20% to -15%.

Technical Specifications

• Power Supply: 12/24 VDC
• Output Current: 0.5A per point
• Logic Type: Positive
• Number of Outputs: 32
• Operating Temperature: 0 to 60°C
• Humidity: 5 to 95% non-condensing

Applications

The IC693MDL753 module is versatile in various applications:

• Machine Control: Operate machines and equipment.
• Process Automation: Automate industrial processes efficiently.
• Packaging: Manage packaging machines and conveyors.
• Material Handling: Control material handling systems effectively.
