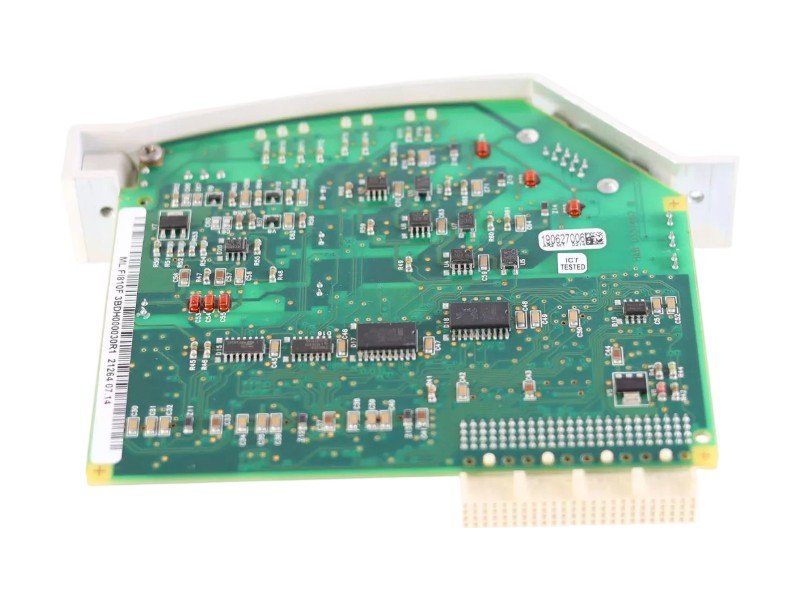

ABB FI810F 3BDH000030R1 Fieldbus Module CAN
Product Description
ABB FI810F 3BDH000030R1 is a CAN bus fieldbus module,This module is used in conjunction with the AC 800F field controller, which typically supports approximately 1000 I/Os per controller.
ABB FI810F 3BDH000030R1 module connects to the Freelance 2000 rack-mount I/O, provides CAN 2.0 compliant functionality, and can operate redundantly with a second AC 800F. Only one FI810F module can be connected to each AC 800F; the module slot is defaulted to F1.
Function & Features
Speed Signal: The DS200PTBAG1B (DS200PTBAG1BBA) receives and processes speed sensor signals from the high-pressure (HP) and low-pressure (LP) shafts for overspeed protection.
Flame Detection Signal: The DS200PTBAG1B (DS200PTBAG1BBA) receives signals from ultraviolet (UV) flame detectors and monitors combustion conditions.
Trip Logic Interface: The DS200PTBAG1B (DS200PTBAG1BBA) board provides a direct path between external trip input signals and the internal turbine trip board.
Generator protection: DS200PTBAG1B (DS200PTBAG1BBA) processes generator and bus voltage, current signals, and circuit breaker status.
Specifications
| Parameter | Details |
|---|---|
| Product Model | FI810F |
| Part Number | 3BDH000030R1 |
|
Transmission Rate |
Up to 1 MBd |
|
Supported Bus Standard |
CAN 2.0 |
|
Rated Voltage |
5 V, ± 3% from basic unit |
|
Power Consumption |
1.6 W - 2.6 W, depending on communication |
|
Channel Supply |
Rated voltage: 5 V, ± 10%; Power consumption: 0.15 W when idling, 0.30 W per channel during communication |
|
Weight |
Approximately 0.145 kg |
|
Interface |
CAN 3, 9-pin female connector |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
