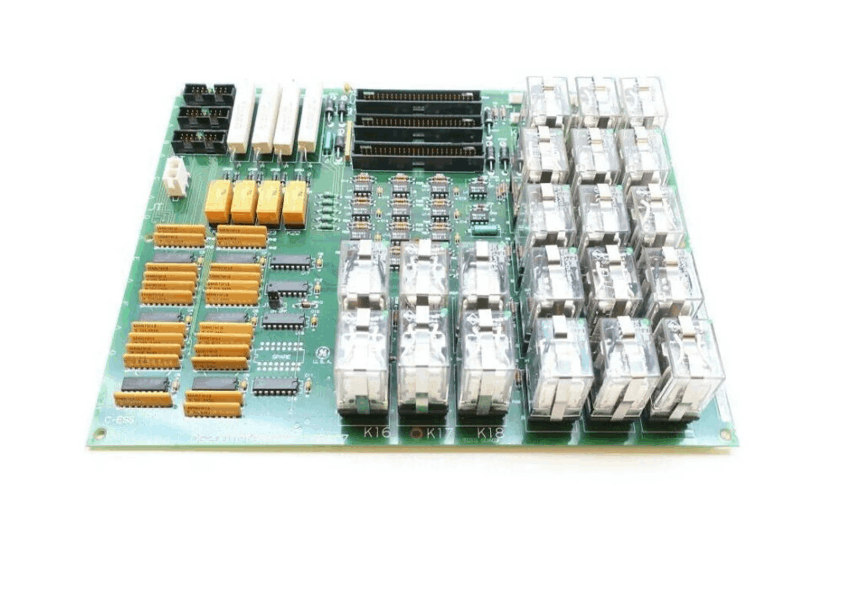

General Electric DS200TCTGG1AFF DS200TCTGG1ACC Simplex Trip Board
Item Number:DS200TCTGG1AFF DS200TCTGG1ACC
Brand:GE
Lead Time: In stock
Description:Simplex Trip Board
Payment: T/T
Product Description
GE DS200TCTGG1A is a turbine trip board (TCTG) developed by GE, which is mainly used to control the fuel shut-off valve of the turbine, usually installed in the core position 4.This trip board provides two different types of trip relays to ensure the safe shutdown function of the fuel valve, including the main trip relay (PTRs) and the emergency trip relay (ETRs).
Fuctions & Features
- Safety Trip Function: The GE DS200TCTGG1A board provides two trip relays, the Main Trip Relay (PTRs) and the Emergency Trip Relay (ETRs), to ensure the safe shutoff function of the fuel valve.
- Hardwire Trip Function: The hardwire trip button of the GE DS200TCTGG1A can cut off the 24V DC power supply, stopping the PTR and ETR relays from working, thereby initiating the trip.
- Synchronization Function: The GE DS200TCTGG1A board also contains synchronization relays. There are 21 plug-in relays on the board
- Connector Configuration: The GE DS200TCTGG1A has two 12-pin connectors, marked JN and JM, and three 50-pin connectors, marked JLY, JLX, and JLZ. The 50-pin connectors are usually connected via ribbon cables.
Appilications
- Thermal power station: In thermal power stations, GE DS200TCTGG1A can be used to control the fuel shut-off valve of steam turbines. When a safety situation occurs, the main trip relay or emergency trip relay can quickly cut off the fuel supply to ensure safety.
- Gas turbine power station: Gas turbines use natural gas as fuel. During the power generation process, GE DS200TCTGG1A can accurately control the fuel shut-off valve of gas turbines.
FAQs
Q: What is the brand?
A:GE
Q: What is the type?
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
