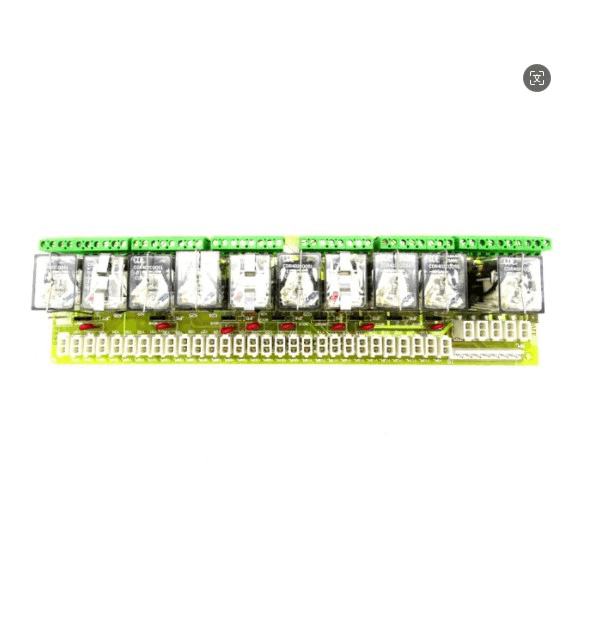

General Electric DS200RTBAG3AGC RTBA Relay Terminal Board

GE DS200RTBAG3AGC is a GEMark V Series RTBA relay terminal board, typically installed as an auxiliary board in a drive or exciter cabinet. This terminal board features 10 relays that can be operated remotely or directly via control relays on the LAN I/O terminal board.

Seven of the 10 relays are double-pole, double-throw (DPDT) relays, each with two Form C contacts; the remaining three are four-pole, double-throw (4PDT) relays, each with four Form C contacts.

Function & Features

The GE DS200RTBAG3AGC relay configuration includes:

• Seven double-pole, double-throw (DPDT) relays, each with two sets of Form C contacts (normally open/normally closed/common).
• Three four-pole, double-throw (4PDT) relays, each with four sets of Form C contacts, enabling simultaneous control of multiple circuits.

Replacing a relay:

• Disconnect power to the driver;
• Open the cabinet door and release the retaining clip;
• Remove the old relay and insert a new one.
