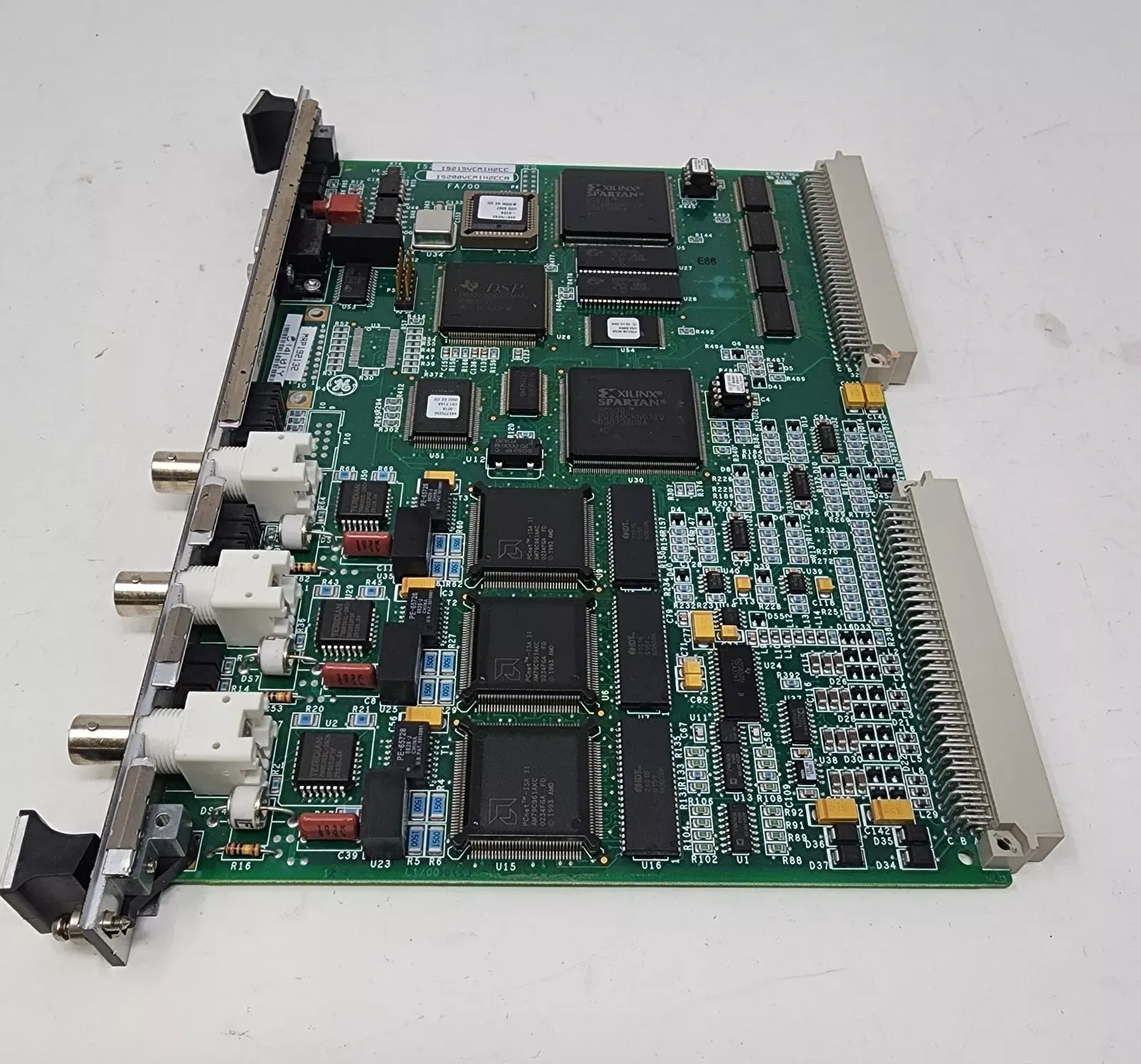

General Electric IS200VCMIH2B Bus Master Controller Board
Item Number:IS200VCMIH2B
Brand:GE
Lead Time: In stock
Description:Bus Master Controller Board
Payment: T/T
Product Description
GE IS200VCMIH2B is a VME bus master board developed for the GE Mark VI control system. This VCMI board is a control and interface module that communicates internally with the I/O boards in the rack and with other VCMI cards via IONet. The IS200VCMIH2B board uses multiple types of memory such as dual-port memory, SRAM, and flash memory to work together.IS200VCMIH2B connects to other modules on the backplane through the VME bus.
Fuctions & Features
- The IS200VCMIH2B is based on the Texas Instruments TMS320C32 32-bit digital signal processor, which can operate and analyze input signals and data.
- The IS200VCMIH2B uses different types of memory such as dual-port memory, SRAM and flash memory to work together. It communicates with other devices through the IONet Ethernet port.
- In a simplex system, a single cable connects the control module to one or more interface modules to achieve data transmission and command issuance.
- The IS200VCMIH2B uses the VME bus for block transmission to achieve data transmission between other devices or modules on the backplane.
Specification
|
Category |
Details |
|
Model |
IS200VCMIH2B |
|
Part of |
GE Mark VI Control System |
|
Processor |
Texas Instruments TMS320C32 32-bit DSP |
|
Memory |
- Dual-port memory: 32 KB (32-bit) - SRAM: 64k x 32 - Flash: 128k x 8 |
|
- IONet: 3 x 10 Base2 Ethernet ports (10 Mbits/sec, BNC connectors) - VME bus block transfers - 1 RS-232C serial port (9600, 19,200, or 38,400 bits/sec) - 1 parallel port (8-bit bi-directional, EPP Version 1.7) |
|
|
Frame Rate |
- Simplex: 10 ms (100 Hz) - TMR: 40 ms (25 Hz) |
|
Fault Tolerance |
Software Implemented Fault Tolerance (SIFT) |
|
System Compatibility |
- Simplex systems (1 Ethernet port) - TMR systems (3 Ethernet ports) |
