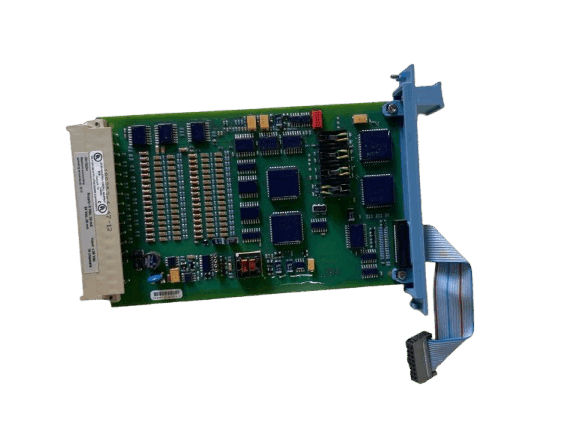

Honeywell FC-SAI-1620M Safe High-density Analog Input Module (16 Channels)
Item Number:FC-SAI-1620M
Brand:Honeywell
Lead Time: In stock
Description:Safe High-density Analog Input Module (16 channels)
Payment: T/T
Product Description
The FC-SAI-1620M is a 16-channel high-density safety analog input module in Honeywell Safety Manager. It has 16 analog input channels (input range 0 - 4V) and an external voltage readback input (0 - 4V). All 16 channels are safety channels, and the analog 0V of the 16 channels are isolated from each other.
Field signals need to be converted from 0-20 mA to a level suitable for this module. This can be achieved through the field terminal assembly module or the analog input conversion module BSAI-1620mE located on the programming connector (Px) on the rear of the IO backplane of the 19-inch chassis.
Features of FC-SAI-1620M
why choose Honeywell FC-SAI-1620M
- Channel parameters: 16 input channels, input range 0 - 4.1V, input resistance greater than 1 MΩ, maximum load capacitance 100 nF.
- Conversion performance: 12-bit A/D converter is used, A/D converter error is ± 1 LSB, module error is less than 0.25%.
- Signal limit: The absolute maximum input signal is ± 36 V DC.
- Channel isolation: The crosstalk between channels is greater than 60 dB, and the analog 0V of the 16 channels are isolated from each other, with high safety (up to SIL3).
Specifications
|
Parameter |
Value |
|
Number of input channels |
16 |
|
Input range |
0 - 4.1 V |
|
Input resistance |
> 1 MΩ |
|
Maximum load capacitance |
100 nF |
|
A/D converter |
12 - bit |
|
A/D converter inaccuracy |
± 1 LSB |
|
Module inaccuracy |
< 0.25% |
|
Absolute max. input signal |
± 36 V DC |
|
Cross talk between channels |
> 60 dB |
