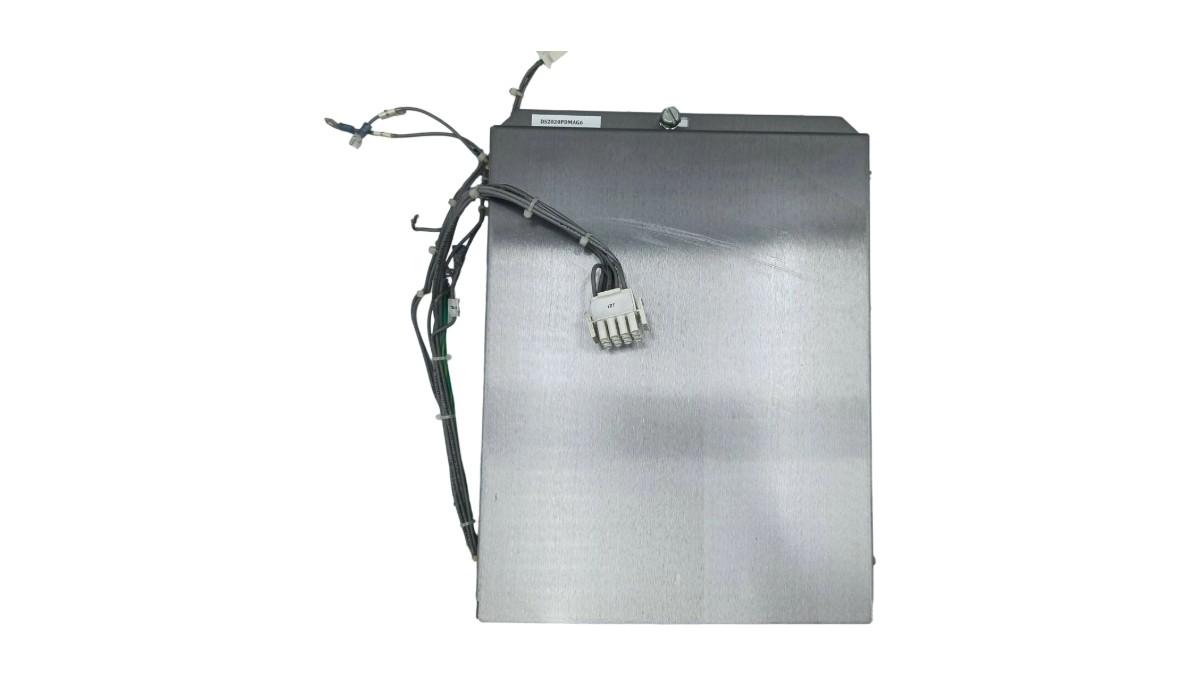

General Electric DS2020PDMAG6 Power Distribution Module
Item Number:DS2020PDMAG6
Brand:GE
Lead Time: In stock
Description:Power Distribution Module
Payment: T/T
Product Description
GE DS2020PDMAG6 is a Power Distribution Module (PDM) for providing DC and AC power to all racks and terminal blocks of the GE Mark VI system. There is also a second version of this module that can be used in control cabinets in remote I/O cabinet systems.
Note: The relevant model DS200TCPDG2BEC is the circuit distribution board for the DS2020PDMAG6 module. This board contains switches for individually shutting down the power of each core.
Function & Features
Power distribution: The DC power supply of the DS2020PDMAG6 is blown off and distributed to the interface (I/O) cabinet and protection module, while the AC power supply is blown off through the J17-20 terminal and distributed to the relay terminal block.
Power Conversion: The DS2020PDMAG6 is equipped with one or two AC/DC converters. The DC voltage is fed back to the PDM via a cable and connected to the main DC power supply via a diode.
Input power: The DS2020PDMAG6 supports both DC and AC input and can be connected to the PDM via a power filter.
Specifications
| Parameter | Details |
|---|---|
| Product Model | DS2020PDMAG6 |
| Related model | DS200TCPDG2BEC |
| Main Components |
-AC/DC Converters, -Control Power Filter (CPF), -Fuses |
| Interfaces |
-JTX1, JTX2 -J17-20 -J301 -TB2 |
| Weight | 3.2kg |
FAQ
Q: How is the AC power distributed?
A: The AC power is output through interface J17-20. These outputs are protected by fuses and then connected to the relay terminal block via cables.
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
