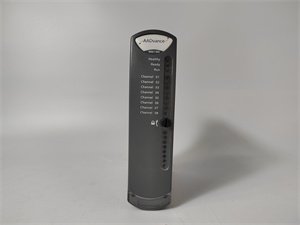

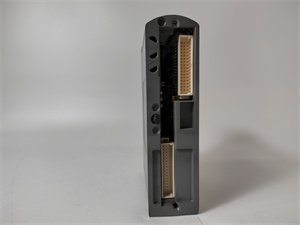

ICS Triplex T3484 SIL 3 Certified TMR Safety Controller Module

Key Technical & Structural Features

• Fault-Tolerant TMR Architecture: The module adopts a triple modular redundancy (TMR) structure with three independent processing channels. It uses voting logic. When one channel fails, the system can still maintain continuous operation without affecting the industrial process. This fault-tolerant design greatly improves the stability of the module in long-term operation and meets the high reliability requirements of critical industrial control occasions.
• High Safety and Rapid Deployment: It complies with the SIL 3 standard specified in IEC 61508 and has obtained TÜV certification, which can fully meet the safety requirements of safety instrumented systems in high-risk industrial scenarios. At the same time, it is equipped with pre-configured control algorithms. Users do not need to carry out complex programming from scratch during application, which shortens the deployment cycle of the module in the system.
• Strong Connectivity and Control Accuracy: It is equipped with dual 10/100 Mbps Ethernet/IP ports, supporting device-level ring, star and linear network topologies, which can realize seamless connection and data transmission with the Rockwell Automation ecosystem. In terms of control performance, its output current range covers 0 – 20mA or 4 – 20mA, the resolution can reach 0.1%, and the response time of each channel is ≤5ms, which can achieve precise control of industrial equipment.
• Adaptability to Industrial Environments: It can be optionally treated with conformal coating, which enables the module to resist the erosion of corrosive substances in harsh industrial environments. In addition, different versions of the module can adapt to different temperature ranges, which can meet the use needs of most industrial sites, whether it is a general factory environment or a relatively extreme temperature field.

Field Application & Problem Solved

In industrial fields such as petrochemicals, electric power, and turbomachinery, once the safety control system fails, it is likely to cause major safety accidents and economic losses. Conventional control modules often have problems such as single structure, poor fault tolerance, and difficulty in integrating with the existing automation ecosystem, which cannot meet the high safety and stability requirements of critical links.

The T3484 well solves these pain points. For example, in the turbomachinery control system of a chemical plant, the module can rely on its pre-configured control algorithms to quickly connect with the turbomachinery control system, and the TMR architecture ensures that the turbomachinery will not shut down abnormally due to module failure. In the safety instrumented system of a power plant, its SIL 3 certification can ensure that the system can accurately and timely respond to abnormal power generation parameters, issue early warning or trigger protective measures. At the same time, its seamless integration with the Rockwell Automation ecosystem can avoid compatibility problems between the module and the original control system of the power plant.

Installation & Maintenance Pitfalls

1. Ignoring Voltage Range Restrictions: The module’s operating voltage range is 18 – 30VDC. If the input voltage exceeds this range due to power supply problems on site, the internal circuits of the module may be damaged. It is recommended to install a voltage detection device at the power input end and confirm that the voltage is within the specified range before powering on the module.
2. Neglecting Conformal Coating Requirements: In corrosive environments such as coastal petrochemical plants, if the ordinary version of the module without conformal coating is installed, the service life of the module will be greatly shortened. It is necessary to select the module with conformal coating according to the on-site environment, and regularly check the coating integrity during use.
3. Improper Network Topology Matching: The module supports multiple network topologies such as device-level rings. If the topology type is incorrectly set during installation, it will lead to slow data transmission or communication interruption. It is necessary to confirm the network topology of the existing control system in advance and make corresponding configuration settings for the module.
4. Skipping Regular Channel Detection: Although the module has a TMR structure, individual channels may still have reduced response sensitivity after long-term use. It is recommended to regularly test the response time and output accuracy of each channel. Once an abnormal channel is found, timely maintenance should be carried out, and spare modules should be reserved to avoid prolonged system downtime.

Product Positioning & Advantages

The T3484 is positioned as a core safety control component for critical industrial scenarios. Compared with ordinary industrial control modules, its biggest advantage is the combination of TMR fault-tolerant architecture and SIL 3 high safety certification, which fills the gap of general modules in the application of high-risk and high-reliability demand scenarios. In addition, its seamless integration with the Rockwell Automation ecosystem and pre-configured control algorithms not only reduce the difficulty of system integration for enterprises but also save the time cost of later debugging. For industrial enterprises that pursue safe and efficient production, this module is an important part of building a stable industrial control system.
