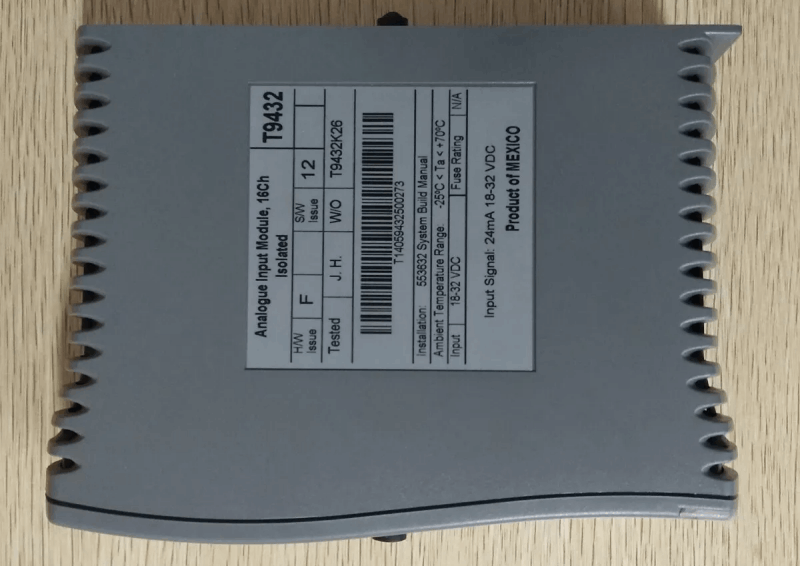

ICS Triplex T9432 Analogue Input Module
Item Number:T9432
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Analogue Input Module
Payment: T/T
Product Description
ICS Triplex T9432 is an analog input module for the AADvance control system. It monitors 16 isolated analog input channels (compared to the 8-channel T9431 in the same series), acquires analog signals, and simultaneously transmits field device values and channel operating status to the processor module.
Each input provides five configurable voltage bands (with a total of eight adjustable switching thresholds to support hysteresis) and supports remote viewing of status variables in AADvance Workbench software.
Function & Features
- Dual-Dimensional Data Transmission: Each T9432 channel simultaneously transmits two key types of data to the processor module: digital status data and analog process value data.
- Local Status: Indicators on the T9432 module's front panel display both overall module status and individual channel status.
- Remote Status: T9432 status signals can be linked to application variables in the AADvance Workbench software.
- Basic Monitoring Thresholds (Default): The T9432 module has preset default monitoring thresholds for analog inputs, used to determine channel status (normal or faulty).
Specifications
|
Parameter |
Calculation Formula |
| Model | T9432 |
|
Digital Inputs Calculation |
Digital Inputs × Input Voltage (V)/5125 |
|
Analogue Inputs Calculation |
Analogue Inputs × Input current (A) × 135 |
|
Digital Outputs Calculation |
Digital Outputs × Output current (A) × 0.57 |
|
Analogue Outputs Calculation |
Analogue outputs × (Field voltage(V) × Output Current (A) - load Resistance(Ω) × Output current (A)) |
|
Module Power - Heat Dissipation |
Heat Dissipation × 4.0 W (13.6 BTU/hr.) |
|
Weight Allowance (Unit Conversion) |
Weight Allowance g (oz. × 340 g (12 oz) |
