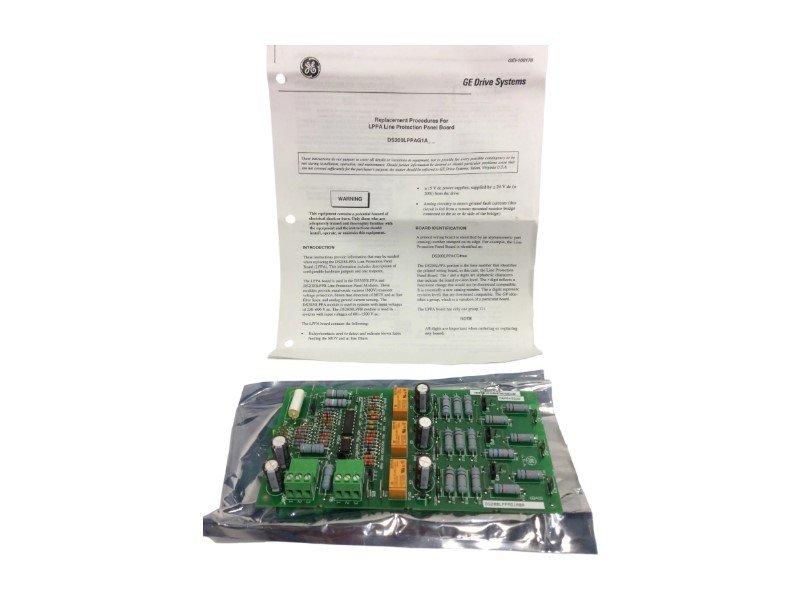

General Electric DS200LPPAG1A Line Protection Board

GE DS200LPPAG1A line protection board is a protection component equipped with two terminal blocks (each with three terminals) and seven jumpers. It monitors power lines, detects abnormal conditions, and quickly isolates equipment when a fault occurs. It acts as a safety barrier between the turbine power generation system and the power grid, protecting the turbine and related equipment from damage.

Function & Features

• Power Line Monitoring: The DS200LPPAG1A detects power faults such as line-to-ground faults, current, and voltage. Upon detection, it immediately sends a signal to disconnect the affected power line.

• Grid Synchronization Safety: When the turbine is connected to the grid, the DS200LPPAG1A monitors grid voltage and frequency. If there is a significant deviation between grid parameters and turbine output, the turbine can be disconnected from the grid.

• System Maintenance: The DS200LPPAG1A can also prevent system failures by early detecting power fluctuations and, when necessary, initiate an automatic shutdown sequence.

Specifications
