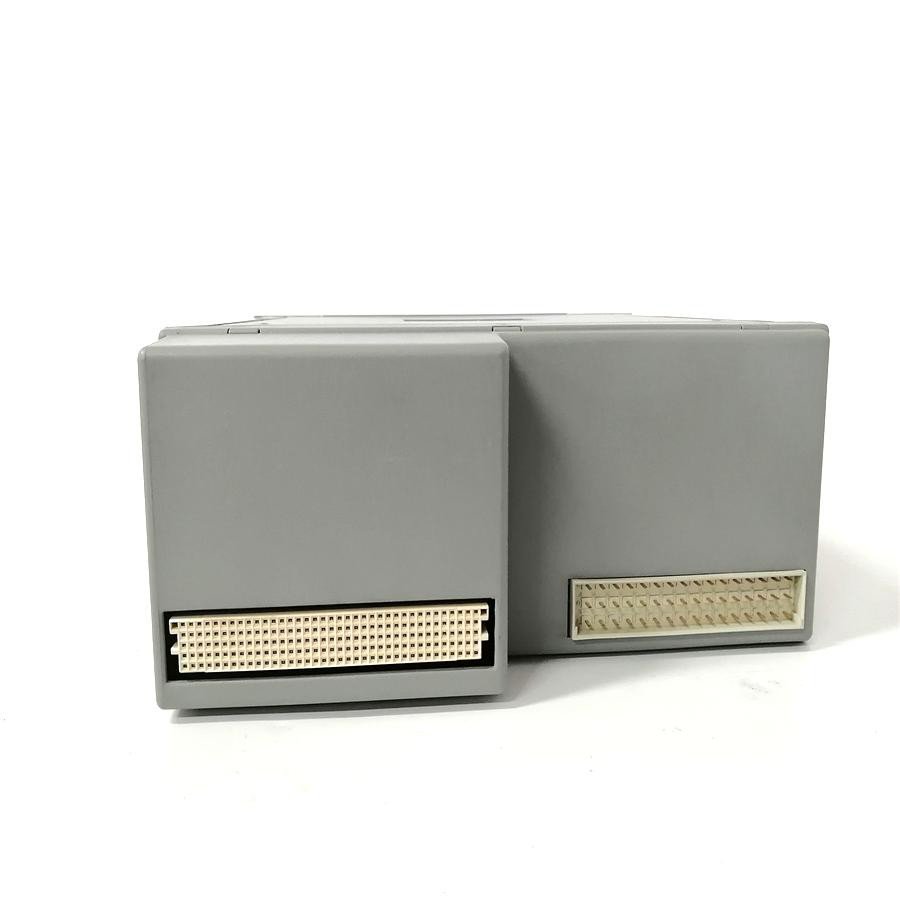

ICS Triplex T8850 Field Termination Assembly
Item Number:T8850
Brand:ICS Triplex
Lead Time: In stock
Description: Trusted Field Termination Assembly (FTA)
Payment: T/T
Product Description

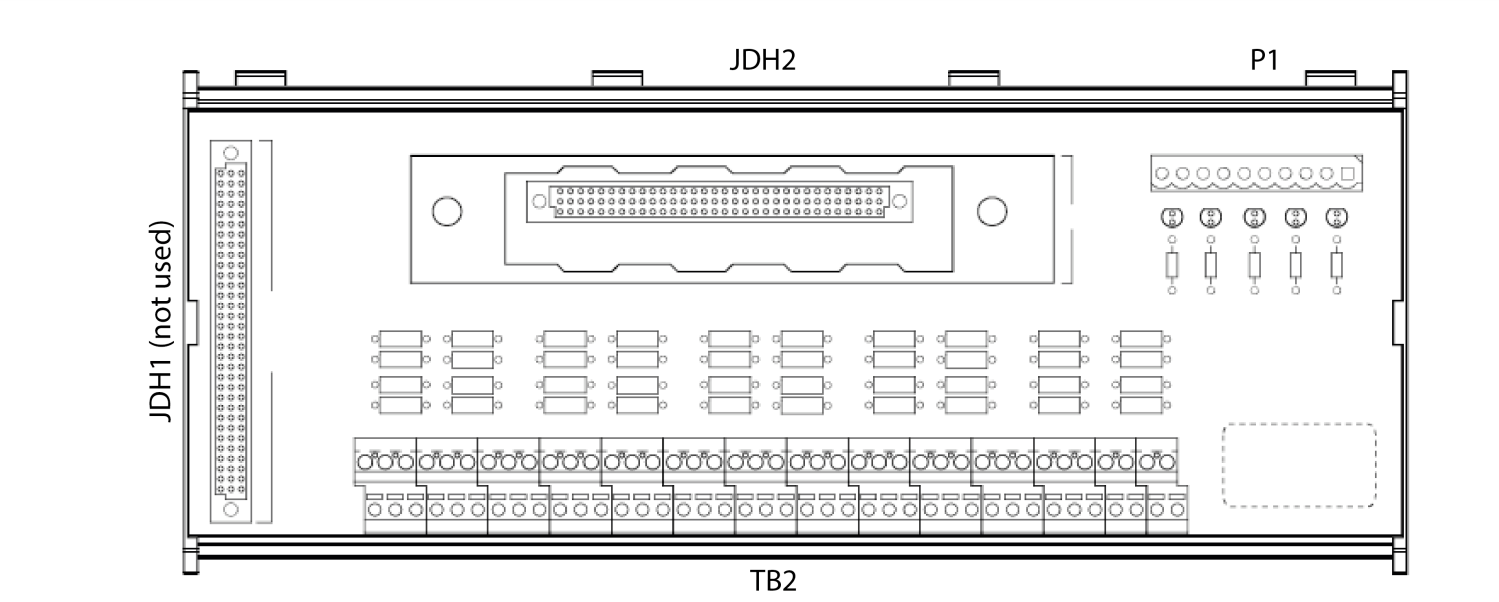

ICS Triplex T8850 Field Termination Assembly (FTA), or Trusted® 40-channel analog or digital output Field Termination Assembly (FTA), is designed to be used as the primary interface between the Trusted Triple Modular Redundant (TMR) 24 Vdc Digital Output Module T8451, Trusted Triple Modular Redundant (TMR) 24/48 Vdc Digital Output Module T84611, or Trusted TMR Analog Output Module T8480 and field devices. The assembly provides termination connections for up to 40 output field loops, with the 40 channels organized into five groups of eight identical channels each.
Function & Features
- 40 output channels per FTA.
- Industry standard field device connections (2-wire).
- Standard DIN rail compatibility.
- Screw clamp terminals on both field and power supply.
- 24 Vdc operation.
- SmartSlot connections for "one-to-many" output module hot swapping.
- Five independent groups of eight channels.
- On-board LED indication of field power.
- Field terminal wire sizes allow for 12 AWG to 28 AWG.
Specifications
|
Category |
Specifications |
|
Number of Channels |
40 output channels, divided into 5 groups of 8 channels each |
|
Supply Voltage |
Maximum 60 Vdc (supplied via T8290) |
|
Power Dissipation |
0.5 W per power group |
|
Isolation Performance |
|
|
Power Group to Power Group |
50 V Reinforced Isolation (continuous), tested at 1411 Vdc for 60 s |
|
Field Common Isolation |
50 V Reinforced Isolation (continuous), tested at 1411 Vdc for 60 s |
|
Channel to Channel (within Power Group) |
250 V Basic Isolation (fault), tested at 2436 Vdc for 60 s |
|
Fusing |
No fusing |
|
Environmental Specification |
Refer to Document ICSTT-TD003 |
|
Dimensions |
|
|
Height |
110 mm (4.33 in) |
|
Width |
360 mm (14.17 in) |
|
Depth |
68 mm (2.67 in) |
|
Weight |
950 g (2.1 lb) |
FAQ
Q: What is the brand?
A:ICS Triplex
Q: What is the type?
A:Trusted Field Termination Assembly
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
