ABB REF615 HBFEAEAGNDA1ABA1XG Feeder Protection Relay

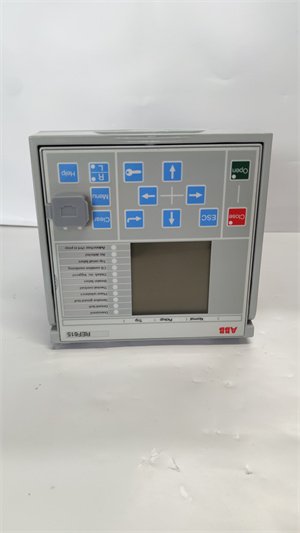

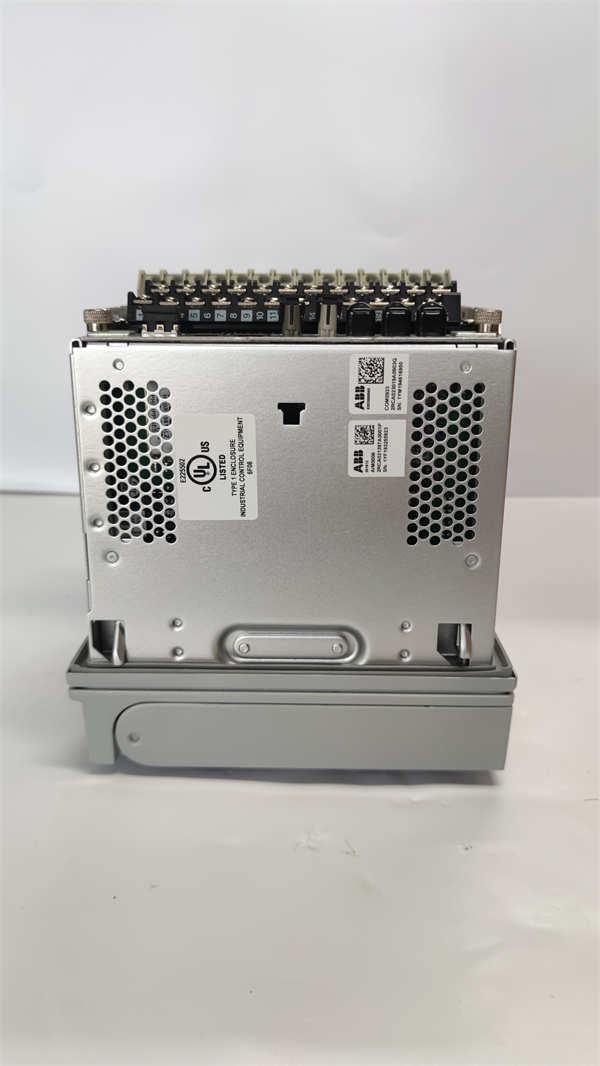

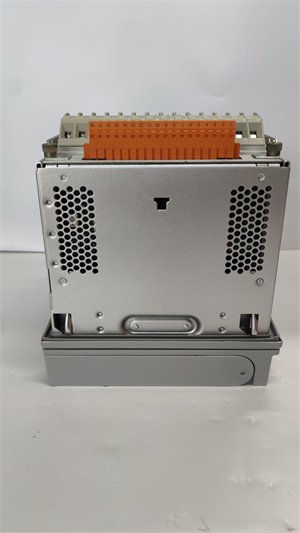

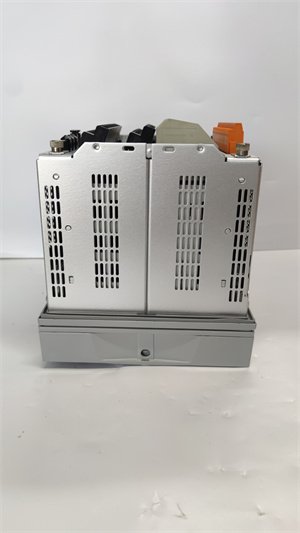

The ABB REF615 HBFEAEAGNDA1ABA1XG is an advanced feeder protection relay from ABB’s Relion® 615 series, designed for medium-voltage applications in industrial and utility power systems. This intelligent electronic device (IED) provides comprehensive protection for overhead lines, underground cables, and busbars up to 40.5kV.

Featuring ABB’s latest protection algorithms, the REF615 HBFEAEAGNDA1ABA1XG offers exceptional reliability and precision in fault detection. The unit combines traditional overcurrent and earth fault protection with innovative arc flash detection technology, significantly enhancing personnel safety in electrical installations. Its modular architecture allows for flexible configuration to meet specific application requirements across various industries.

Detailed Parameter Table

Core Advantages and Technical Highlights

Multifunctional protection: The ABB REF615 HBFEAEAGNDA1ABA1XG integrates multiple protection functions including directional/non-directional overcurrent (50/51, 50N/51N), thermal overload protection (49), and sensitive earth fault detection. The arc flash protection (AFD) function uses light detection to trigger ultra-fast tripping (<7ms).

Advanced communication: Supporting IEC 61850 Edition 2 communication standard, the relay enables seamless integration into digital substations. Additional protocols including Modbus RTU/TCP, DNP3.0, and IEC 60870-5-103 ensure compatibility with various automation systems.

User-centric design: The REF615 HBFEAEAGNDA1ABA1XG features a high-resolution graphical LCD with intuitive menu navigation. The front panel includes 10 programmable LEDs, 5 pushbuttons, and a navigation wheel for easy local operation and monitoring.

Robust performance: Designed for demanding environments, the relay features enhanced EMC immunity (4kV) and withstands severe mechanical vibrations. The compact design allows for space-efficient panel mounting with excellent heat dissipation properties.

Typical Application Scenarios

The ABB REF615 HBFEAEAGNDA1ABA1XG is extensively used in industrial power distribution networks for protecting critical feeders. In manufacturing plants, it safeguards production lines against electrical faults while its arc flash detection enhances worker safety. The relay’s sensitive earth fault protection is particularly valuable in mining operations with extensive cable networks.

For utility applications, the REF615 HBFEAEAGNDA1ABA1XG protects distribution feeders in substations, with directional overcurrent capability for complex network configurations. Renewable energy installations benefit from its adaptive protection settings that accommodate bidirectional power flows in solar and wind farms.

Installation, Commissioning and Maintenance Instructions

Installation preparation: The ABB REF615 HBFEAEAGNDA1ABA1XG should be mounted vertically on a DIN rail or panel using the provided mounting hardware. Maintain minimum 50mm clearance above and below the unit for proper ventilation. All current transformer connections must be properly rated and secured according to local electrical codes.

Maintenance suggestions: Regular maintenance should include inspection of front panel indicators, verification of communication links, and checking of terminal tightness. The relay’s comprehensive event recorder and disturbance recorder facilitate troubleshooting. Firmware updates should be performed using ABB’s PCM600 software when available.

Service and Guarantee Commitment

ABB provides a 60-month warranty for the REF615 HBFEAEAGNDA1ABA1XG, demonstrating confidence in the product’s reliability. The relay undergoes extensive type testing according to international standards. ABB’s global service network offers 24/7 technical support, with field service engineers available for commissioning assistance and advanced diagnostics.
