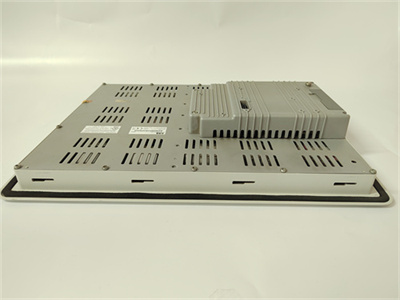

ABB PP865 3BSE042236R1 Detailed Information

ABB PP865 3BSE042236R1 is a high-performance touchscreen operator panel,belonging to the ABB Panel 800 series.It is designed for industrial automation and process control applications,providing a high-resolution color display and a user-friendly operating interface.

Main functions and features

High-resolution display:15-inch TFT color display with a resolution of 1024×768 pixels.

Touchscreen operation:Adopts resistive touchscreen technology,supports multiple languages,and has a user-friendly interface.

Multiple communication interfaces:Supports multiple communication protocols such as Ethernet,RS485,etc.,which is convenient for communication with other devices.

Industrial-grade design:The protection level is IP65,suitable for harsh industrial environments.

Flexible installation method:Supports panel installation,which is easy to integrate into a control panel or operating station.

Technical specifications

Display size:15 inches.

Resolution:1024×768 pixels.

Touchscreen type:resistive.

Operating temperature range:-20℃to+60℃.

Storage temperature range:-30℃to+70℃.

Communication interface:2 RS-232 serial ports,1 RJ45 Ethernet port.

Memory capacity:128 MB.

Storage capacity:256 MB.

Application areas

ABB PP865 3BSE042236R1 is widely used in the following fields

Industrial automation:used to monitor and control production lines.

Process control:used to monitor the operating status and parameters of equipment in real time.

Chemical and pharmaceutical industries:used to monitor and control production processes.

Power systems:used to monitor and control power equipment.

Transportation:used to monitor and control traffic signals,train systems,etc.
