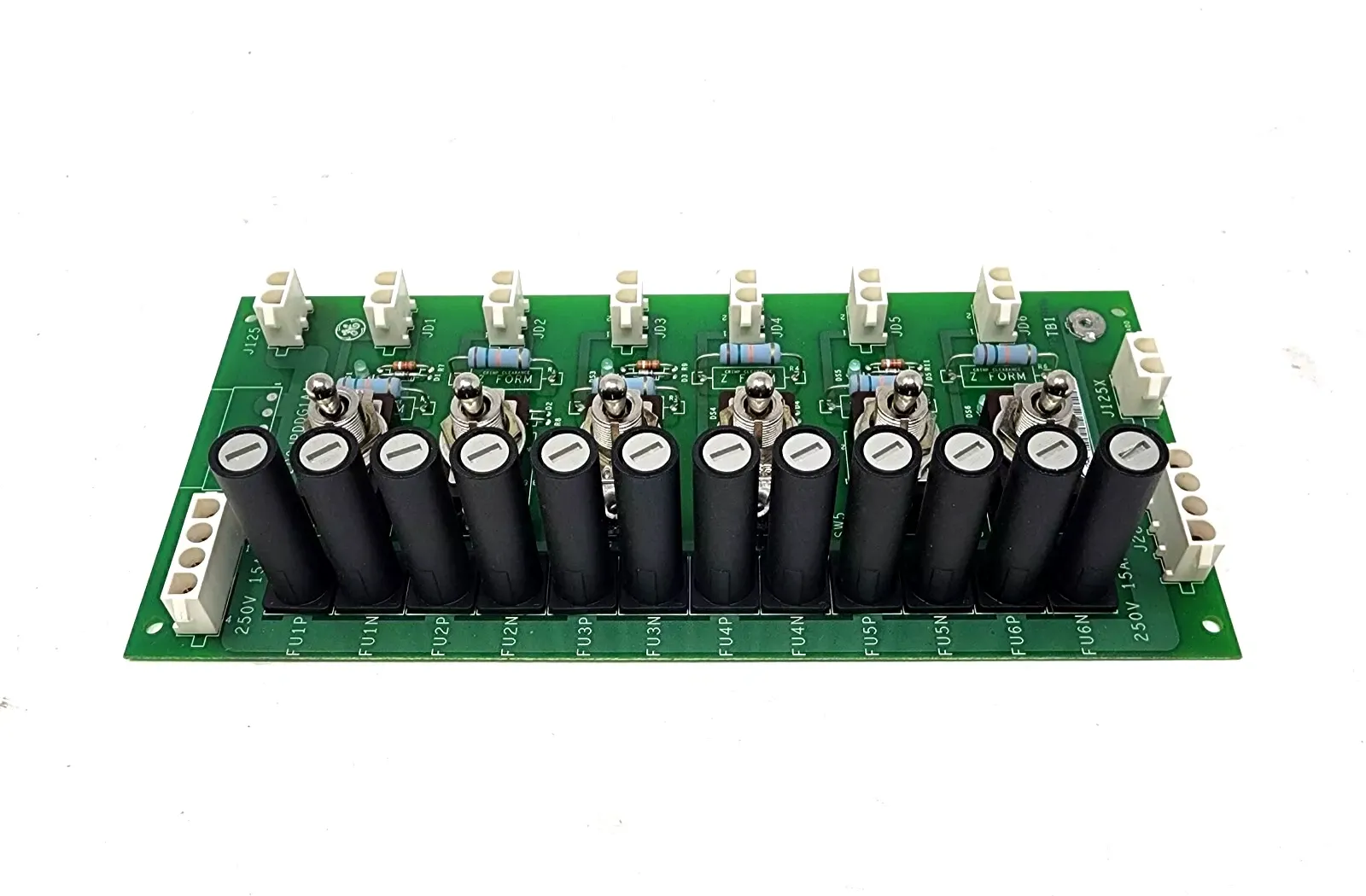

General Electric IS200JPDDG1A DC Power Distribution Board
Item Number: IS200JPDDG1A
Brand: GE
Lead Time: In stock
Description: DC Power Distribution Board
Payment: T/T
Product Description
GE IS200JPDDG1A is a DC power distribution board for the Mark VI series. It provides power distribution and branch circuit protection for various control or input/output (I/O) functions requiring power. The IS200JPDDG1A primarily supports applications involving DC relays, solenoid valve control power, and contact wet connections.
Function & Features
- The IS200JPDDG1A board is not designed to directly power I/O packs. It is primarily intended for power distribution and protection for control or I/O functions requiring specific DC power levels.
- Multiple IS200JPDDG1A boards can receive power from a single main power distribution module branch circuit, which provides dedicated connectors for input and daisy-chaining power distribution to other JPDD boards.
- The outputs are equipped with fuses and switch contacts on each side of the DC path, allowing the GE IS200JPDDG1A board to be used with ungrounded (floating) power supplies.
Technical Specifications
|
Item |
Details |
|
Manufacturer |
|
|
Model |
IS200JPDDG1A |
|
Product Type |
DC Power Distribution and Protection Board |
|
System |
Mark VI |
|
Connectors |
Over 52 plug connectors(2-pin to 12-pin). • 1 male header ribbon cable connector • 1 large multi - pin connector (for vertical components) |
|
Terminal Blocks |
• 1 five - position terminal block • 3 three - position small terminal blocks |
|
Switches |
7 toggle switches: • 1 independent switch • A row of 3 switches • A row of 3 switches (with warning labels) |
| Dimension | 123.35*21.68*212*74(mm) |
