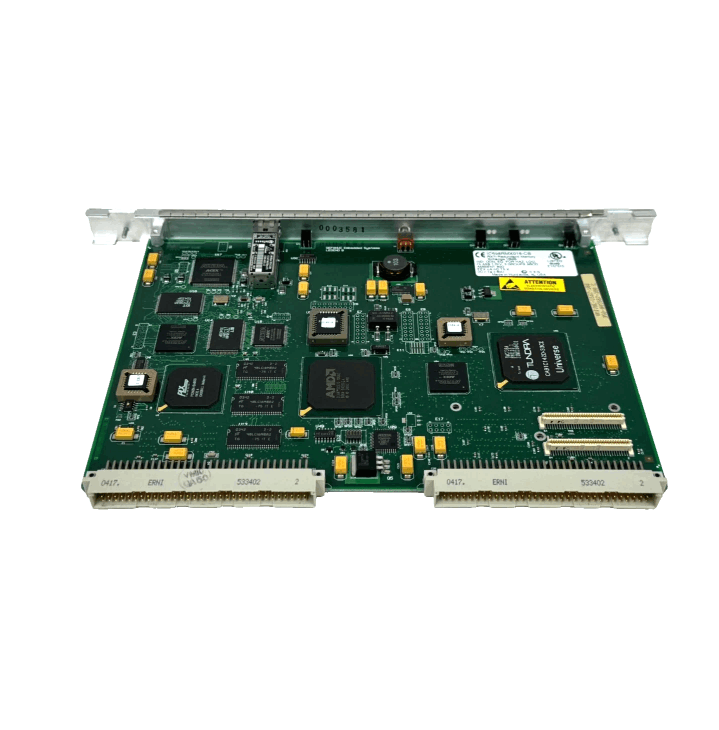

General Electric IC698RMX016 Redundancy Memory Xchange Module
Item Number: IC698RMX016
Brand: GE
Lead Time: In stock
Description: Redundancy Memory Xchange Module
Payment: T/T
Product Description
GE IC698RMX016 is a Redundancy Memory Xchange Module, mainly used in RX7i systems, and can be used as a reflective memory network node or a dedicated data transmission link in a redundant CPU system.
When used as a reflective memory network node, IC698RMX016 can realize data sharing between PLC and other computing devices; when used in a CPU redundancy system, IC698RMX016 can establish a data transmission path between two redundant CPUs to ensure synchronization between the primary and standby CPUs. The module adopts a single-slot design, supports fiber optic connections, and is connected to VMIC 5565 series reflective memory devices.
Function & Features
GE IC698RMX016
Reflective Memory Network Node
When used as a network node, IC698RMX016 supports reflective memory networks with up to 256 nodes. When data is written to a node, all nodes are automatically updated. The network rate reaches 2.12 Gbaud, and the RX7i CPU does not need to be involved in processing.
Redundant CPU Link
In a CPU redundant system, IC698RMX016 provides a data transmission path for two redundant CPUs. It requires one RMX module and two optical fibers to form a dual-node ring (other nodes are not allowed to access). It is recommended to configure two redundant links (a total of 4 modules), or a single link (a total of 2 modules) can be selected.
IC698RMX016 Specifications
1. Redundancy Mode
|
Parameter |
Details |
|
Connection Type |
Dual-node fiber optic ring (point-to-point only, no additional nodes allowed) |
|
Configuration |
Requires paired use (1 RMX module per CPU + 2 fiber cables) |
|
Recommended Setup |
Dual redundancy links (4 RMX modules) |
|
Limitations |
Cannot function as standard memory exchange module in this mode |
2. Reflective Memory Network Mode
|
Parameter |
Details |
|
Memory Capacity |
16MB (with parity) |
|
Network Topology |
Fiber optic daisy-chain ring (supports multimode fiber, max 100ft/30.48m) |
|
Data Rate |
2.12 Gbaud |
|
Max Nodes |
Up to 256 nodes |
|
Data Sync |
Automatic network-wide update upon node write |
|
Interrupt Support |
4 general-purpose network interrupts (32-bit data each) |
