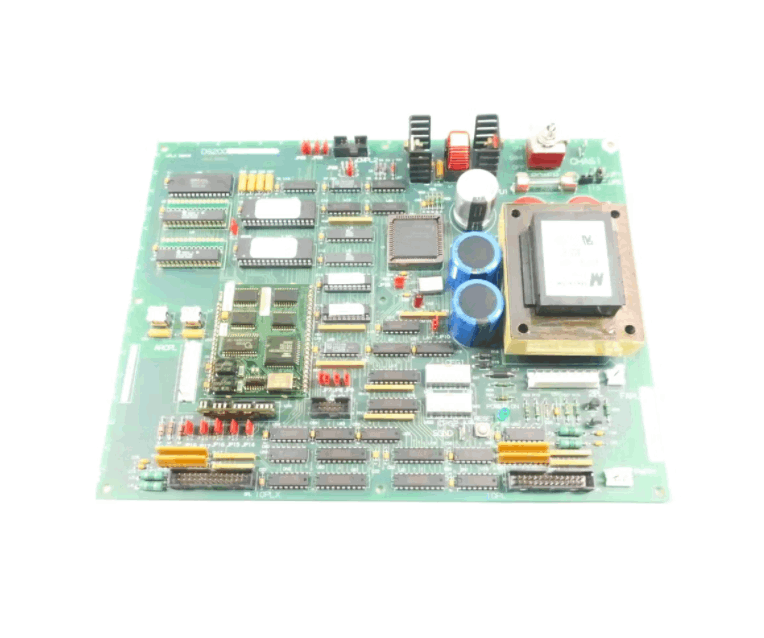

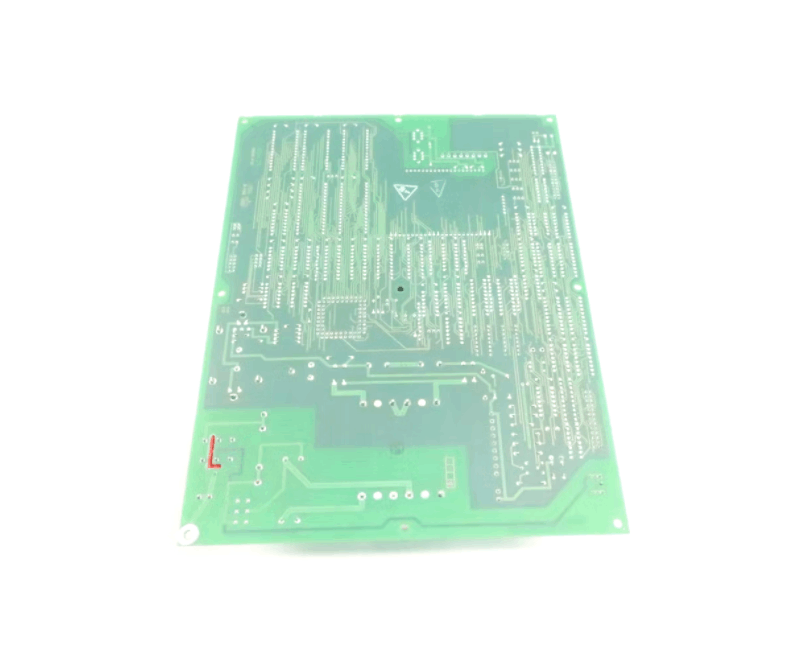

General Electric DS200UPLAG1BDA LAN Power Supply Circuit Board

GE DS200UPLAG1BDA is a power supply / LAN interface board manufactured by GE Mark V, part of the EX2000 series, for excitation control systems. It is a multifunctional electronic component that integrates power management and network communication functions for applications in industrial automation, telecommunications, and embedded systems. The board provides power to the operator interface module, while its LAN interface enables real-time communication between the excitation system and the power plant control or SCADA system.

Fuctions & Features

• Power communication function: The GE DS200UPLAG1BDA LAN board integrates power management and network communication functions. It is responsible for converting the input AC or DC power to the stable voltage required by the components of the excitation system, and can also exchange data with other systems through the LAN interface.

• Power supply: The GE DS200UPLAG1BDA LAN board has a 115/230 VAC, 50/60 Hz input, which can be converted to +/- 24 V and 5 V switching power output to provide DC power for key components such as voltage regulators, control circuits and sensors.

• Hardware configuration: The GE DS200UPLAG1BDA LAN board has a microprocessor core, flash (non-volatile) storage function, DLAN + interface port, RS-232C serial port, and two 8-position configuration DIP switches for easy system configuration and data transfer.
