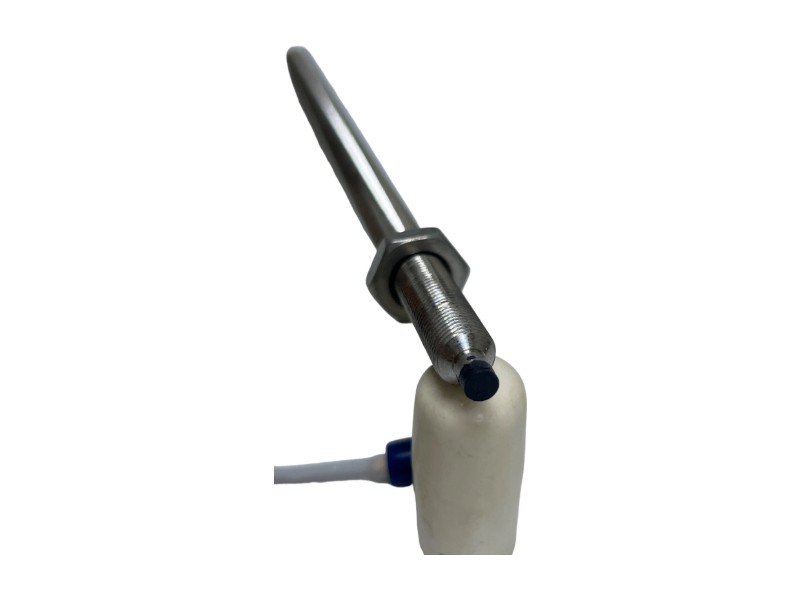

Bently Nevada 330905-00-25-05-02-05 3300 NSv Probe, M10X1 Thread, Without Armor
Item Number: 330905-00-25-05-02-05
Brand:Bently Nevada
Lead Time: in stock
Description: 3300 NSv Probe, M10X1 thread, without armor
Payment: T/T
Product Description
The Bently Nevada 330905-00-25-05-02-05 is part of the Bently Nevada Machinery Condition Monitoring System. It is an unarmored version with an M10x1 metric thread. This probe directly replaces older 3300 RAM series probes and extension cables. Compared to previous 3300 RAM probes, the NSv probe offers enhanced chemical resistance without requiring changes to the mounting holes or system configuration.
Note: This product also includes silicone tape that can be used as an alternative to the connector protector.
Function & Features
- Side View: When the 330905-00-25-05-02-05 probe is mounted at the same distance from the measurement target (typically the shaft surface), it provides improved sensitivity to the side areas of the shaft compared to earlier 3000 Series 5mm probes.
- Equipped with a connector protector: This protects the connection points between the 330905-00-25-05-02-05 probe and the extension cable, and between the extension cable and the Proximitor Sensor, preventing most liquids from invading the ClickLoc connector.
- Configuration: The 3300 NSV is available in a variety of probe stem configurations, including armored and unarmored, and with various thread sizes (1/4-28, 3/8-24, M8x1, and M10x1). The 330905-00-25-05-02-05 is the unarmored version with an M10x1 thread.
Specifications
| Parameter |
Details |
|
Model |
Bently Nevada 330905-00-25-05-02-05/330905-00-25-05-02-CN |
|
Product Type |
3300 NSv Probe |
| Probe Length (m) | Resistance from the Center Conductor to the Outer Conductor (Rₚₚₐₒ₈ₑ) (ohms) |
| Extension cable dc resistance - Center conductor | 0.220 Ω/m (0.067 Ω/ft) |
| Extension cable dc resistance - Shield | 0.066 Ω/m (0.020 Ω/ft) |
| Extension cable capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Probe Weight | Approximately 14 to 150 g (0.5 to 5.3 oz) |
| Probe Thread (M10x1) | 15 mm |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
