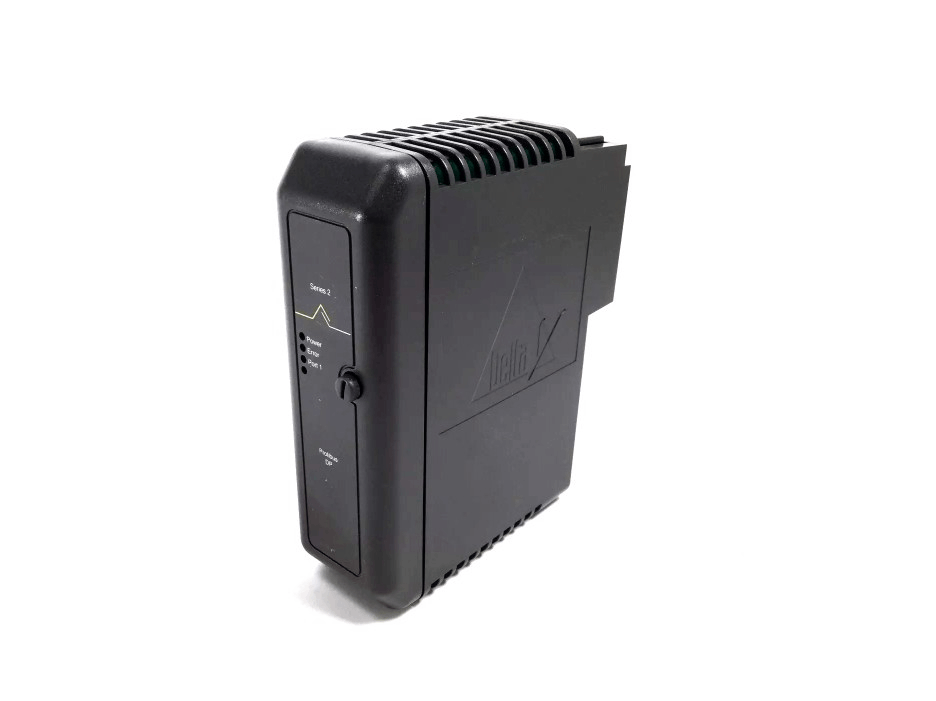

Emerson KJ3243X1-BA1 12P2830X022 Profibus DP Card

KJ3243X1-BA1 is a Profibus DP card that enables communications between a DeltaV™ system and external devices via the Profibus DP fieldbus protocol. This card enables the control system to interact with a variety of field devices such as sensors, actuators, and other automation components that support the Profibus DP standard. The 12P2830X022 part number indicates a specific configuration or version of the card that is optimized for use with a DeltaV™ system.

Function & Features

• Protocol Conversion: The Emerson KJ3243X1-BA1 card supports the Profibus DP protocol, essentially acting as a protocol converter between the DeltaV™ system and external Profibus DP devices. This card is able to convert the DeltaV™ system data and instructions into a format that complies with the Profibus DP protocol in order to communicate with external devices.

• Master function: When used as a master (Class 1), the Emerson KJ3243X1-BA1 card is responsible for initializing and managing the communication of the entire Profibus DP network. It will send request data or control instructions to the connected slave devices at a certain cycle, such as reading sensor data, sending control signals to actuators, etc.

• Slave function: When used as a slave (Class 2), the Emerson KJ3243X1-BA1 card will receive instructions and data sent by the master, and perform corresponding operations based on this information, such as sending the data collected by itself to the master, or performing specific actions according to the control instructions of the master.

Specifications

Why Choose Emerson KJ3243X1-BA1 12P2830X022 Profibus DP Card

The main reasons for choosing Emerson KJ3243X1 - BA1 12P2830X022 Profibus DP Card are as follows:

• Standard protocol support: The card supports the Profibus DP protocol and can connect to a variety of sensors, actuators, remote I/O modules, etc.

• Interoperability with DeltaV™: Designed for use with the DeltaV™ digital automation system, it can incorporate field devices in the Profibus DP network into the control and monitoring system of the DeltaV™ system.

• Plug and Play: Designed to be easily installed in the I/O bracket or remote I/O rack of the DeltaV™ system, it is a "plug and play" device.

• Master and Slave Roles: Supports both the master (controller) role and the slave (field device) role.
