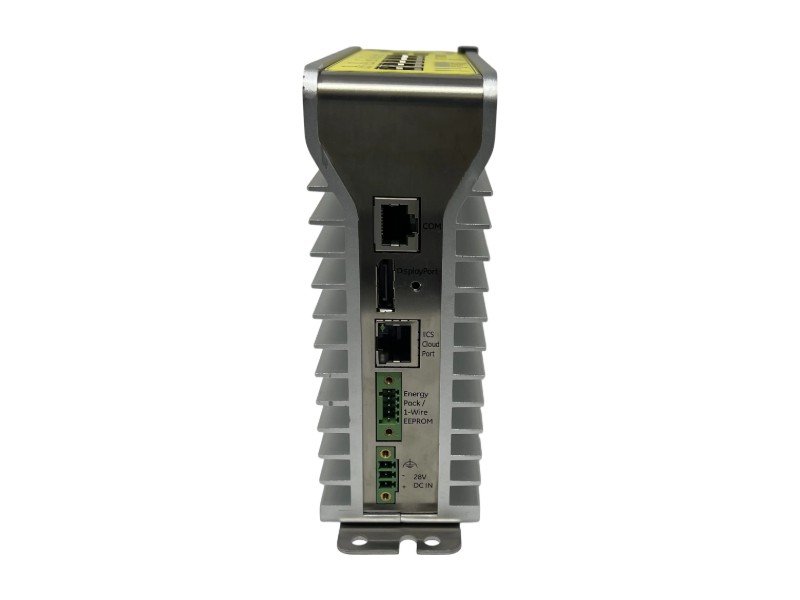

General Electric IS420UCSCS2A Dual Core Controller Module
Item Number:IS420UCSCS2A
Brand:GE（General Electric）
Lead Time: In stock
Description:Dual Core Controller Module
Payment: T/T
Product Description
GE IS420UCSCS2A is a dual-core controller module used to build functional safety loops, enabling systems to achieve SIL 2 and SIL 3 safety levels. This module is primarily used by operators familiar with Safety Instrumented Systems (SIS) to manage and mitigate risks associated with critical safety functions.
Note: The IS420UCSCS2A is available from ControlST version V07.02 onwards and supports simplex, dual-mode, and triple-mode redundancy configurations.
Function & Features
- The IS420UCSCS2A features three IONet ports for communication and also supports EGD/UDH communication. This module can communicate with I/O modules via PROFINET, HSSL, and other interfaces.
- The IS420UCSCS2A uses a dual-core AMD G-series processor and supports a signal span from -8 mV to +45 mV.
- The IS420UCSCS2A's internal circuitry issues a warning at 85°C, shuts down at 95°C, and automatically restarts when the temperature drops below 75°C.
Specifications
| Parameter | Details |
|---|---|
| Product Model | IS420UCSCS2A |
| Core Type | Dual Core Processor |
| Over-Temperature Warning Point | 85°C (185°F) |
| Over-Temperature Shutdown Point | 95°C (203°F) |
| Recovery Temperature | ≤75°C (167°F) |
| Dimensions | 182.312258.6mm |
| Weight | 1.2kg |
