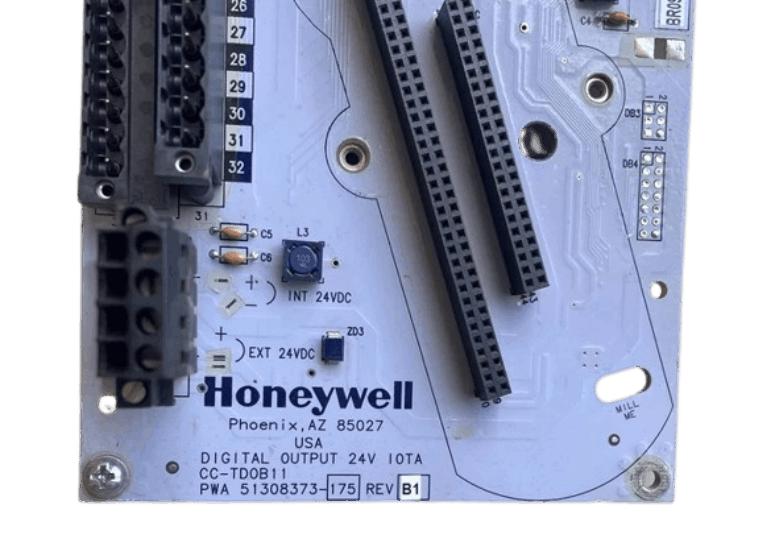

Honeywell CC-TDOB11 Digital Output 24V Module
Item Number: CC-TDOB11
Brand:Honeywell
Lead Time: In stock
Description:Digital Output 24V Module
Payment: T/T
Product Description
Honeywell CC-TDOB11 is a 24V digital output module. This module belongs to the Series C series of 24V digital output IOTA boards. It is responsible for outputting 24V digital signals to drive external devices (such as relays, solenoid valves, etc.). It also has a unique protection function to deal with field short circuits. When the field short circuit current exceeds 0.5A, the module will trigger a thermal protection alarm.
Function & Features
When a field line short circuit is detected, the CC-TDOB11 module will:
- Immediately shut down the affected output channel.
- Switch the channel to manual mode (Manual), which requires manual reset to recover.
- Generate an Over-current Soft Failure alarm until the fault is eliminated.
Independent channel protection: When a single channel fails, only that channel is affected; if multiple channels have problems at the same time, the CC-TDOB11 module will shut down each faulty channel separately, and the channels that are not short-circuited can work normally.
Specifications
|
Parameter |
Details |
| Model | CC-TDOB11 |
|
Output Channels |
32 |
|
Output Type |
Source (Current Sourcing) |
|
Load Voltage Range |
15–30 VDC (Maximum) |
|
On-State Voltage |
24 V (Typical) @ 0.5A Load Current |
|
Off-State Voltage |
0 VDC (Max) / 3.3 VDC (Max, No-Load) |
|
Off-State Leak Current |
5.0 µA (Maximum) |
|
Turn-On/Turn-Off Time |
10 ms (Maximum) |
