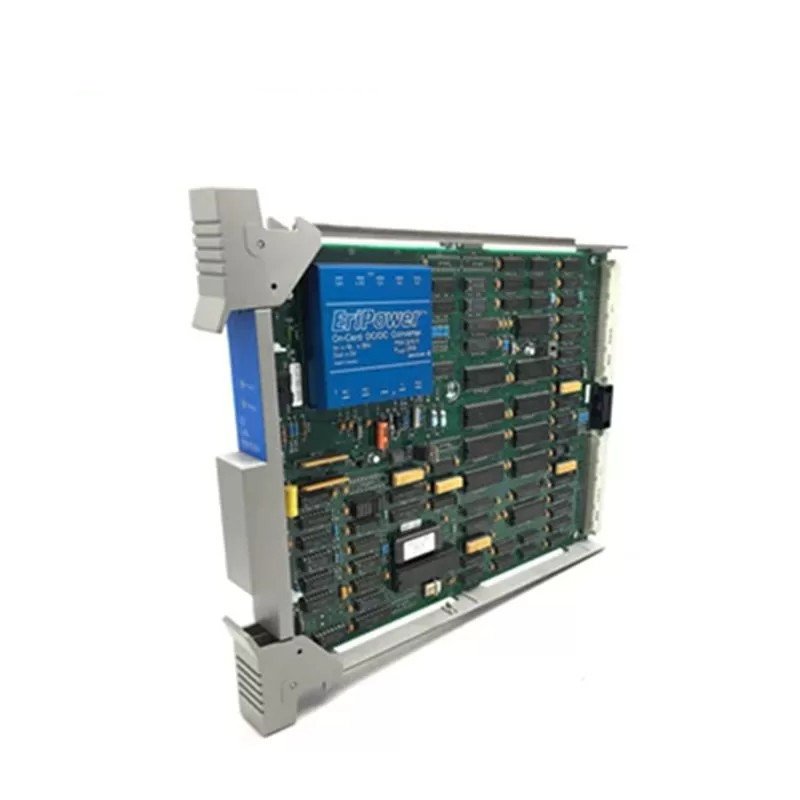

The Honeywell 51308095-100 is a specialized electronic module designed to enhance the input/output (I/O) capabilities of Honeywell control systems. It bridges the control system with external devices or sensors.

Key Functions

• I/O Expansion: This module expands the number of input and output points. It allows connecting more field devices, sensors, and actuators.
• Signal Handling: It processes both analog and digital signals, making it versatile for many applications.
• Flexible Configuration: Users can configure the module to meet specific system requirements.
• Improved Scalability: Adding more modules scales up the overall system’s I/O capacity as needed.

Technical Specifications

• I/O Types: Includes analog inputs (e.g., temperature, pressure), digital inputs (e.g., limit switches), and digital outputs (e.g., relays).
• Signal Ranges: Handles a wide range of input and output signal levels based on the specific channels and configuration.
• Communication Protocols: Supports various protocols for interfacing with the control system and other devices.
• Power Requirements: Varies depending on configuration and the number of active channels.
• Physical Dimensions: The size and mounting options depend on the specific model.
• Environmental Ratings: Includes operating temperature range, humidity tolerance, and other environmental factors. Consult the product documentation for details.

Applications

• Industrial Automation: Used in manufacturing processes, HVAC systems, and other industrial applications requiring precise control and monitoring.
• Building Automation: Controls lighting, heating, ventilation, and security systems in building management systems.
• Process Control: Monitors and controls process variables in various industries.
