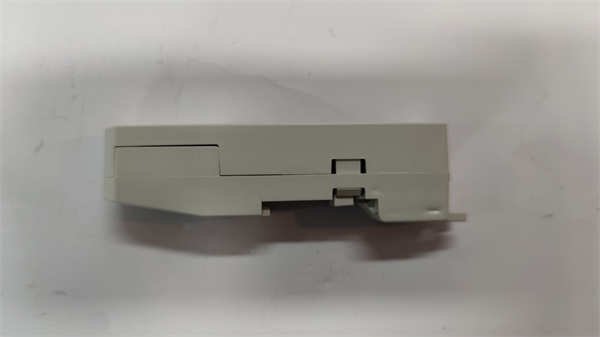

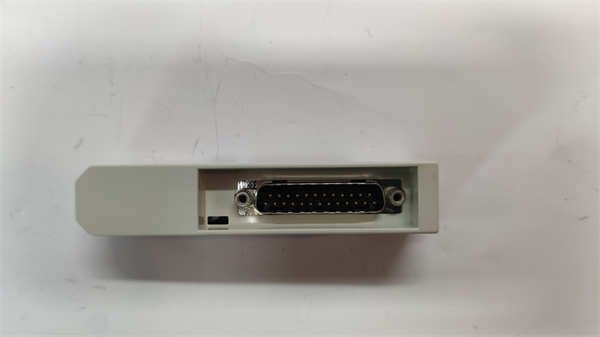

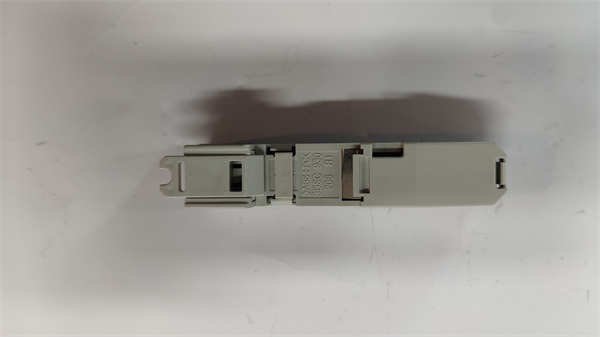

ABB TB806 3BSE008536R1 Termination Board

The ABB TB806 3BSE008536R1 is a high-quality termination board designed specifically for ABB’s S800 I/O modules in the AC 800M control system. This essential interface component provides secure and reliable field wiring connections for industrial automation applications.

As part of ABB’s modular I/O system, the TB806 termination board simplifies wiring while maintaining signal integrity in electrically noisy environments. Its pluggable design allows for easy module replacement without rewiring, significantly reducing maintenance downtime in critical process applications.

The board’s robust construction and screw terminal blocks ensure vibration-resistant connections suitable for harsh industrial environments. The ABB TB806 3BSE008536R1 is particularly valued in applications requiring frequent module changes or maintenance, such as in power generation, oil & gas, and chemical processing plants.

Detailed Parameter Table

Core Advantages and Technical Highlights

Plug-and-Play Functionality:

The removable terminal block design enables quick module replacement without disturbing field wiring, minimizing system downtime during maintenance or upgrades.

Superior Signal Integrity:

With 500V AC isolation and optimized terminal layout, the board prevents cross-talk and maintains signal quality in electrically noisy industrial environments.

Versatile Wiring Options:

Accommodates a wide range of wire sizes (0.2-2.5mm²) and supports both solid and stranded conductors, providing flexibility for various installation requirements.

Durability in Harsh Conditions:

Constructed with flame-retardant materials and designed for operation in wide temperature ranges (-25°C to +70°C), ensuring reliable performance in demanding applications.

Space-Efficient Design:

Compact form factor allows high-density installations in control cabinets while maintaining excellent accessibility for maintenance.

Comprehensive Labeling:

Clear channel numbering and polarity markings simplify installation and reduce wiring errors during commissioning.

Typical Application Scenarios

The ABB TB806 3BSE008536R1 is extensively used in:

Process Automation:

Connecting field instruments in continuous process industries

Signal termination for DCS systems in refineries

Interface for safety instrumented systems (SIS)

Power Generation:

Turbine control system I/O termination

Boiler control signal interfacing

Plant-wide monitoring systems

Manufacturing:

Automotive production line control

Batch process control in pharmaceutical plants

Discrete manufacturing automation

Water Treatment:

Pump station control systems

Water quality monitoring networks

Distribution system automation

Installation, Commissioning and Maintenance Instructions

Installation Preparation:

Ensure proper mounting on compatible S800 I/O module. Verify all field wiring is properly sized and stripped to recommended length. Prepare appropriate tools (3mm screwdriver for terminals).

Commissioning:

After wiring, perform continuity checks on all connections. Verify proper signal transmission through the termination board. Label all wires according to plant documentation standards.

Maintenance Suggestions:

Periodically check terminal tightness (recommended torque 0.5Nm). Inspect for signs of overheating or corrosion. Clean terminal area with isopropyl alcohol if contamination is present. Replace if any terminals show signs of damage or wear.

Service and Guarantee Commitment

ABB provides a standard 36-month warranty for the TB806 3BSE008536R1 termination board. Our global service network offers:

Technical support for installation and troubleshooting

Replacement units with expedited shipping options

Compatibility verification with S800 I/O modules

On-site assistance for complex installations
