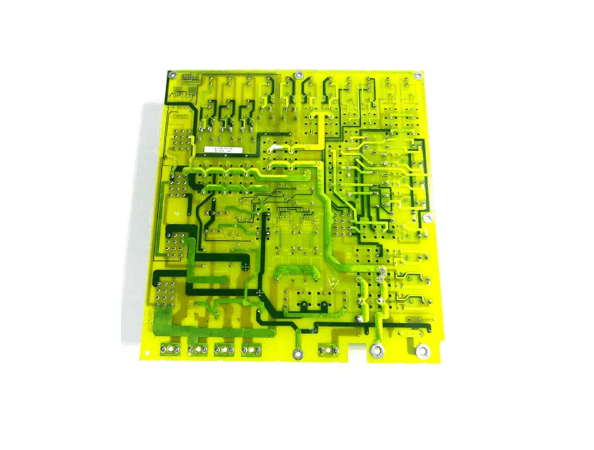

General Electric DS200TCPDG1B DS200TCPDG1BCC Power Distribution Module
Item Number:DS200TCPDG1B DS200TCPDG1BCC
Brand:GE
Lead Time: In stock
Description:Power Distribution Module
Payment: T/T
Product Description
GE DS200TCPDG1B/DS200TCPDG1BCC is a power distribution module for GE Mark V LM Series and linear microprocessor control systems. This module serves as a central power distribution hub, acting not only as a distributor but also as a power distribution center.
Function & Features
- Main Switch and Circuit Breaker: The DS200TCPDG1B/DS200TCPDG1BCC is equipped with a main on/off switch and a 10-amp circuit breaker to control and protect the module's power supply.
- Independent Control and Protection: Each output circuit of the DS200TCPDG1B/DS200TCPDG1BCC has an independent on/off switch, connection terminals, and protection (3-amp fuse or 3-amp circuit breaker).
- High Power Output: The DS200TCPDG1B/DS200TCPDG1BCC directly powers the terminal board (solenoid output power) in the digital core and the ignition transformer connected to the DTBC board.
Specifications
|
Parameter |
Description |
|
Product Model |
DS200TCPDG1BCC/DS200TCPDG1BAA (suffix represents version/configuration) |
|
System |
GE Mark V LM Series Linear Microprocessor Control Systems |
|
Total Input Protection |
10 A circuit breaker |
|
Number of Output Circuits |
3 or 5 output models |
|
Connection Method |
Screw terminals |
|
Main Connectors |
JZ1, JZ2, JZ3, JZ5 |
|
Dimensions |
238.56mm * 145.25mm |
|
Weight |
0.43kg |
