ICS Triplex T8312 Expander Interface Adapter Unit
Item Number: T8312
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description: Expander Interface Adapter Unit
Payment: T/T
Product Description

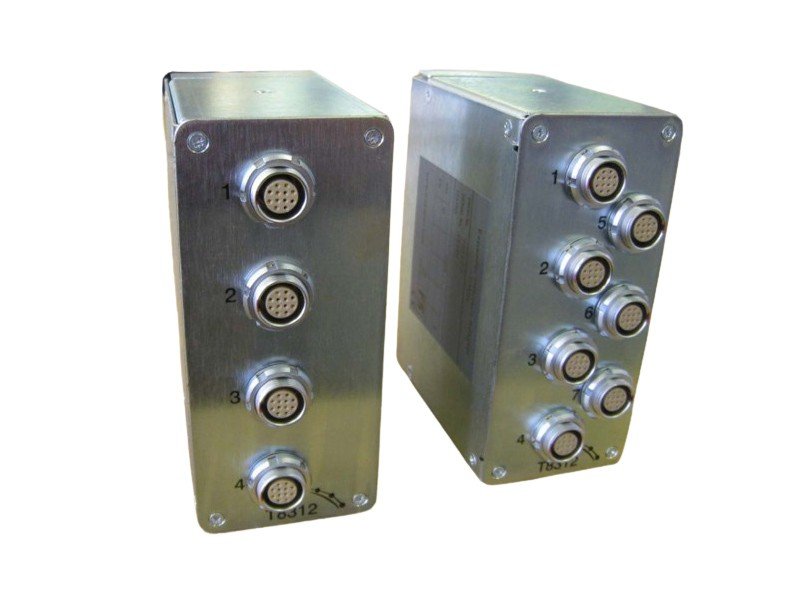

ICS Triplex T8312 is an expander interface adapter unit (I/O) consisting of four or seven 12-pin ODU connectors (depending on the version), a printed circuit board (PCB), and a 96-way Type-C connector.
ICS Triplex T8312 is available in two versions to meet different system size requirements: the T8312-4 connects the Trusted Expander Interface Module in the controller chassis to four expander chassis; the T8312-7 supports seven expander chassis.
Function & Features
- The T8312-4 provides four 12-pin ODU connectors and is suitable for small Trusted systems (≤4 expansion chassis).
- The T8312-7 provides seven 12-pin ODU connectors and is suitable for medium-sized systems (≤7 expansion chassis).
- The T8312 connects to the Trusted Expander Interface Module in the controller chassis via a 96-pin Type-C connector.
- The T8312 unit is housed in a metal enclosure and snaps onto the rear connector of the controller chassis. It features a release button for easy disconnection.
Specifications
|
Category |
Details |
| Model | T8293 |
|
Use with Chassis/Module |
T8100/T8311 |
|
Expander Bus Data Rate |
250 Mbps (0.25 Gbps) |
|
Operating Temperature |
0 °C to +60 °C (+32 °F to +140 °F) |
|
Physical Dimensions & Weight |
|
|
Height |
130 mm (5.1 in) |
|
Width |
60 mm (2.4 in) |
|
Depth |
115 mm (4.5 in) |
|
Weight |
650 g (1.43 lb) |
