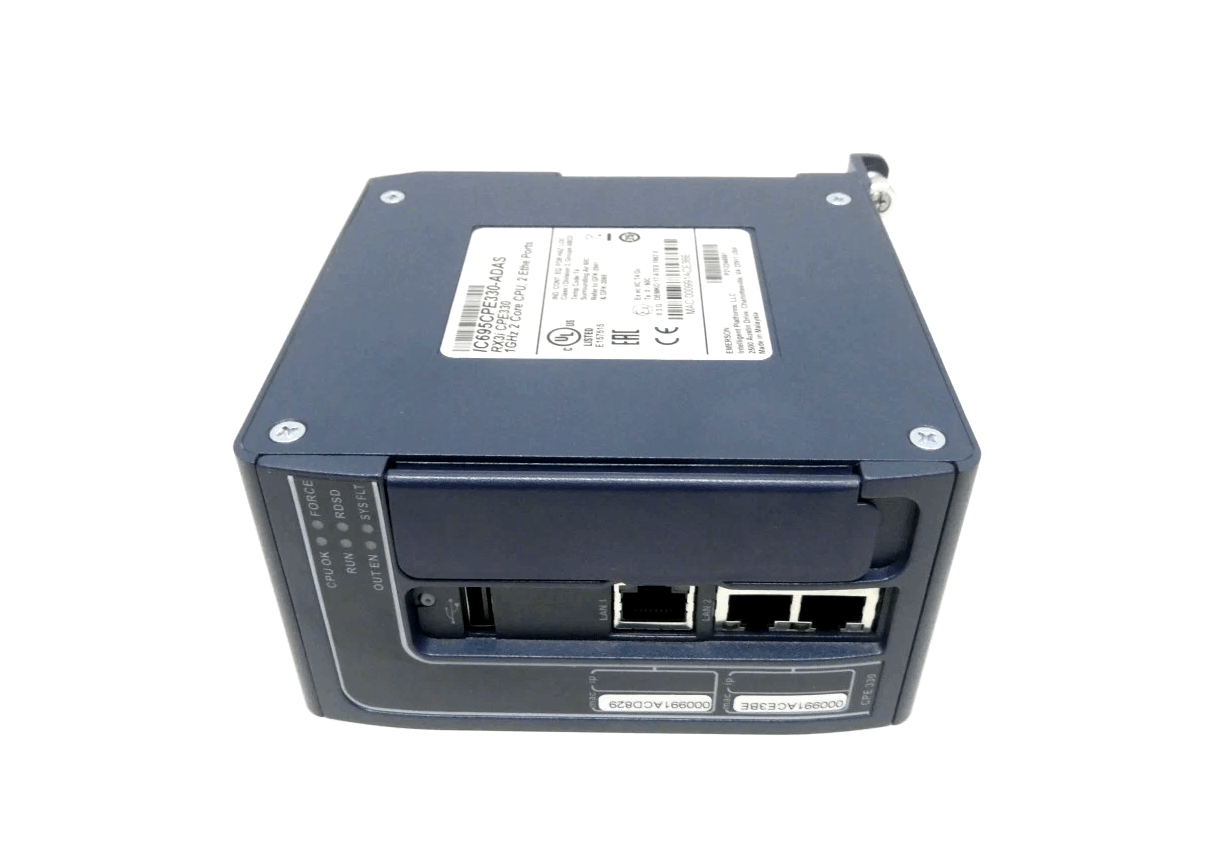

General Electric IC695CPE330 Controller CPU
Item Number: IC695CPE330
Brand: GE
Lead Time: In stock
Description: Controller CPU
Payment: T/T
Product Description
GE IC695CPE330 controller CPU (PACSystems™ RX3i CPE330 CPU) is a programmable controller CPU in the RX3i series. It features 64MB of internal program memory and two independent Ethernet interfaces for multi-layer communication and large-scale data synchronization.
This controller is programmed and configured via Ethernet using PAC Machine Edition™ (PME) software. Installed in an RX3i mainframe, it supports all RX3i I/O and intelligent option modules, supporting up to 32K I/O points.
Function & Features
- The IC695CPE330 supports PME's new GUI management interface for OPC UA configuration integration (start, stop, restart, clear, and configure modes).
- The IC695CPE330 supports RX3i redundant CPUs with PROFINET® I/O, using either embedded PROFINET or the rack-mounted IC695PNC001 PROFINET controller.
- The IC695CPE330 can be configured to display the serial number and date code in PME device details.
- The IC695CPE330 can be configured to support Coordinated Universal Time (UTC) and Daylight Saving Time (DST).
Specifications
|
Parameter |
Details |
|
Part Number |
IC695CPE330 |
|
Memory |
64MB |
|
I/O Capacity |
Max supports 32,000 I/O points |
|
Reference Table Capacity |
- Discrete: 32K bits (%I/%Q) - Analog: 32K words (%AI/%AQ) - Data memory (%W) supports large - volume data exchange |
|
Program Block Limit |
Up to 768 program blocks, max 128KB per block |
|
Firmware Update |
Remotely updated via PME software, supports encryption and security verification |
|
Weight |
0.6 kg |
