ABB NTDI01 Digital I/O Termination Unit
Item Number:NTDI01
Brand: ABB
Lead Time: In stock
Description:Digital I/O Termination Unit
Payment: T/T
Product Description
ABB NTDI01 digital I/O terminal unit is the interface for the I/O signals of the INFI 90 process management system, used to control and monitor industrial processes. It provides the physical connection point for the process field wiring and configures the system I/O signals.

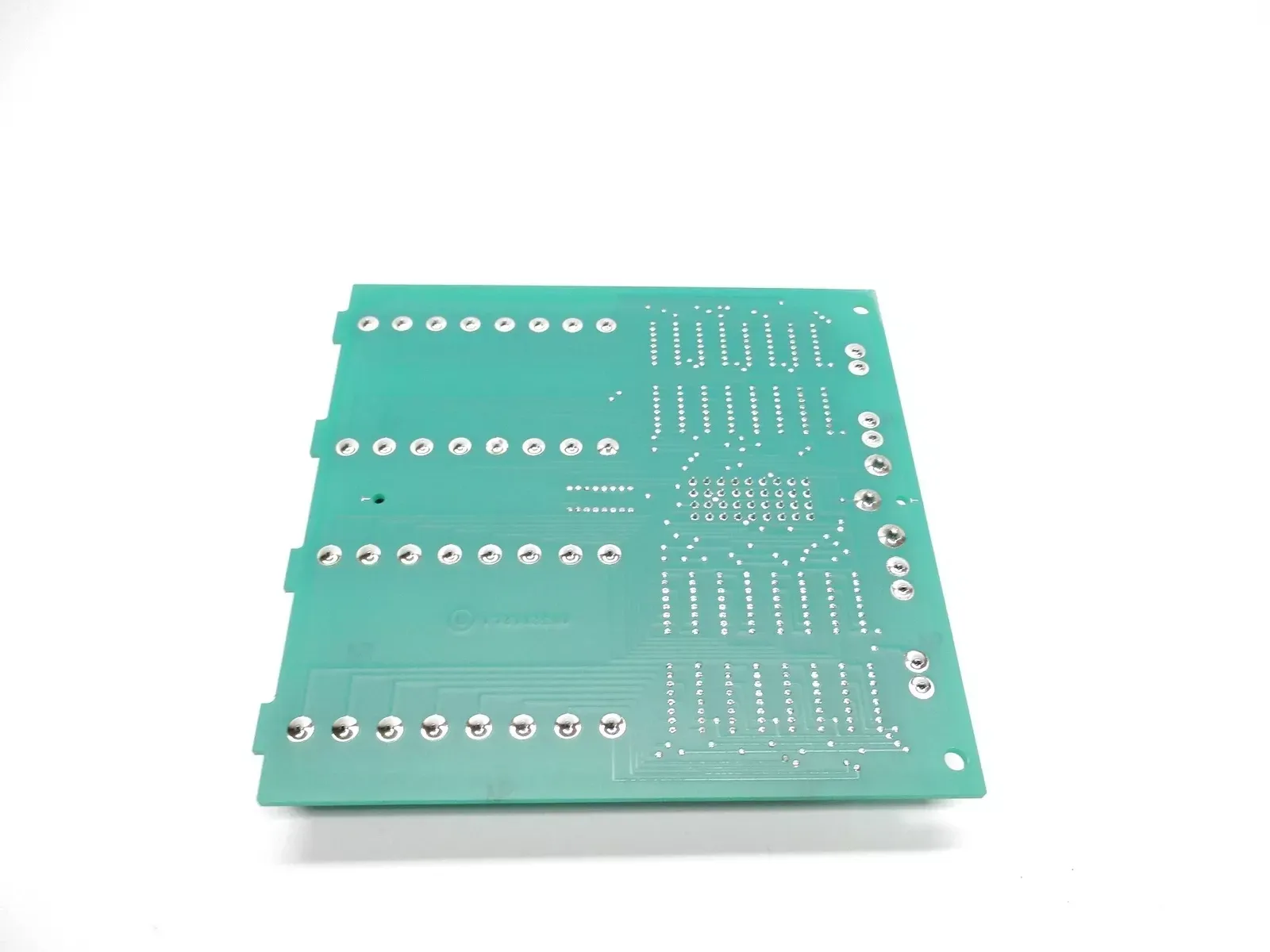

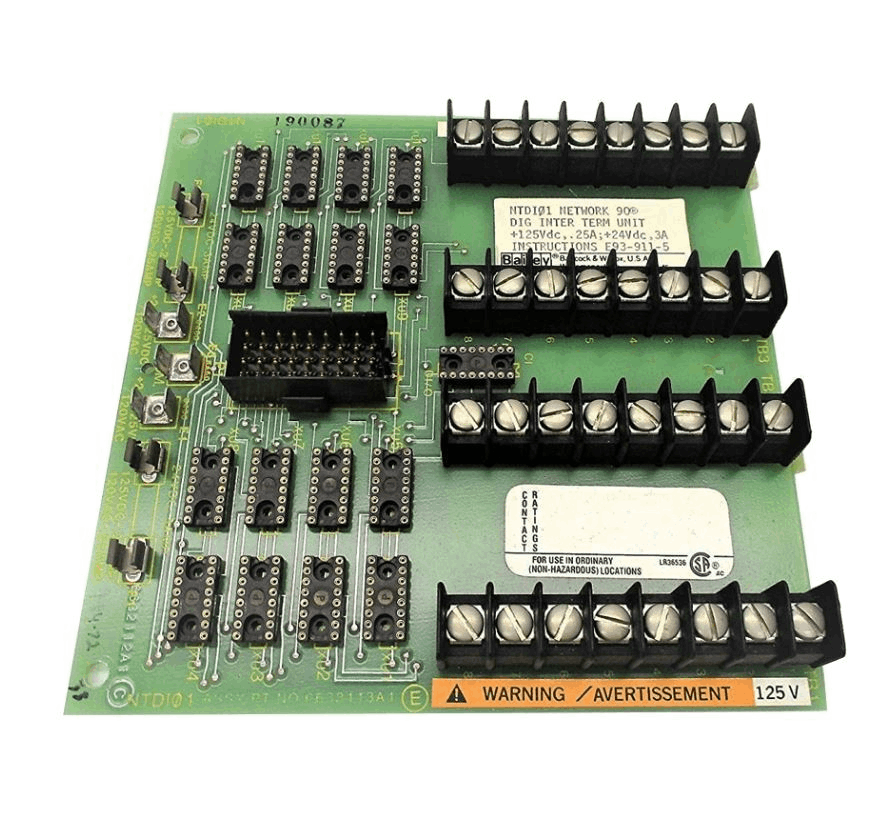

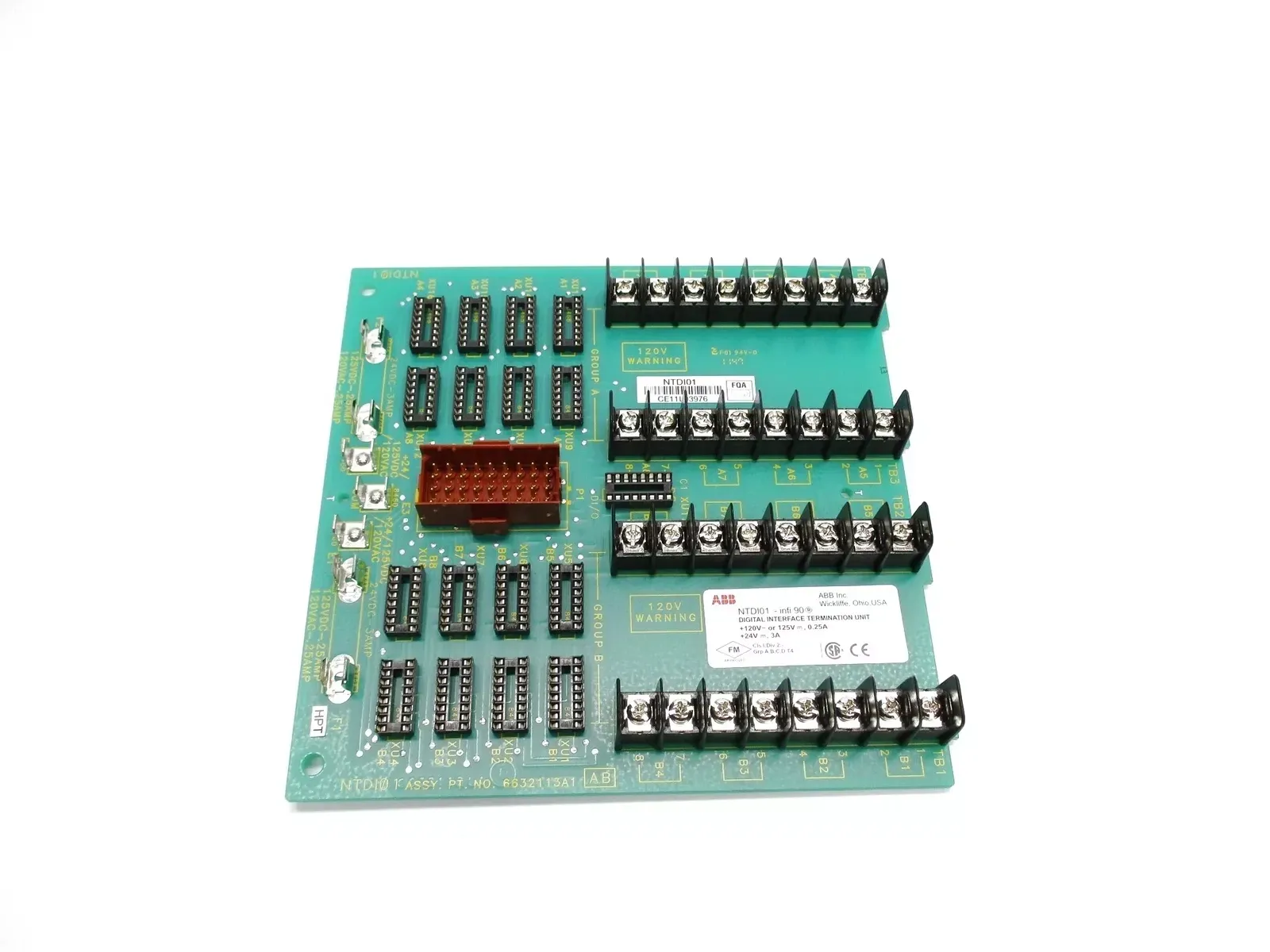

The terminal unit is a printed circuit board that is mounted on the field terminal panel (NFTP01) in the INFI 90 cabinet and can connect up to 16 independent I/O signals.
Fuctions & Features
- NTDI01 supports input (to INFI 90 system) or output (to field devices) of digital/analog signals.
- The NTDI01 board supports 16 independent I/O signals, connected to field wiring through terminal blocks (TB1-TB4).
- The NTDI01 board has no active components and can operate without power supply.
- The NTDI01 board has dual fuses (F1/F2) to protect the system power supply (E1/E2) and field devices.
- The NTDI01 is fixed to the field terminal panel (NFTP01) with screws and brackets and installed in the INFI 90 cabinet.
Specification
|
Parameter |
Value |
|
Mounting |
Attaches to a standard INFI 90 Field Termination Panel |
|
Wire Size |
22 gauge (minimum) 12 gauge (maximum) |
|
Environmental - Ambient Temperature |
0° to 70° C (32° to 158° F) |
|
Environmental - Relative Humidity |
0% to 95% up to 55° C (131° F)(noncondensing) 0% to 45% at 70° C (158° F)(noncondensing) |
|
Environmental - Altitude |
Sea Level to 3 Km (1.86 miles) |
|
Product Net Depth / Length |
78.74 mm |
|
Product Net Height |
233.68 mm |
|
Product Net Width |
213.36 mm |
|
Product Net Weight |
0.5 kg |
Loading comments...
