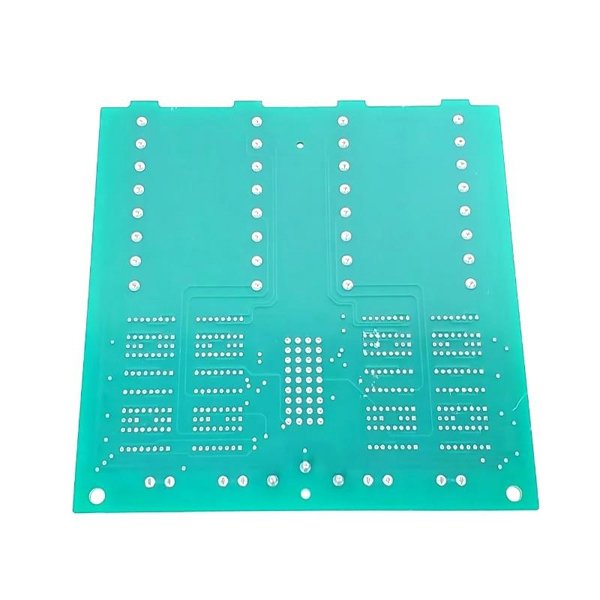

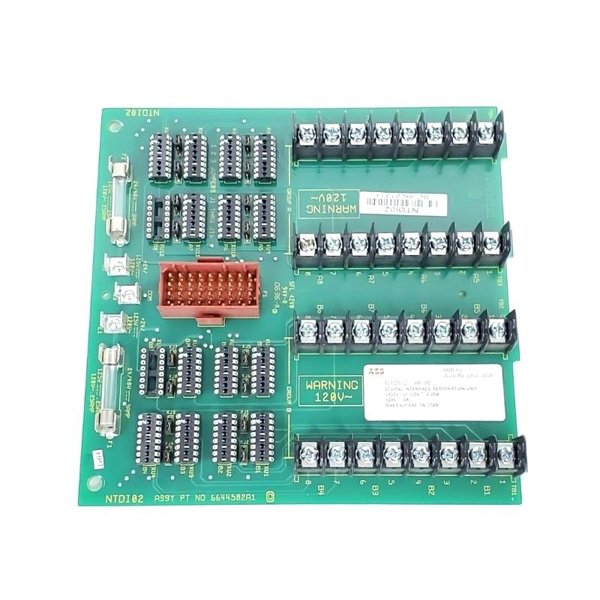

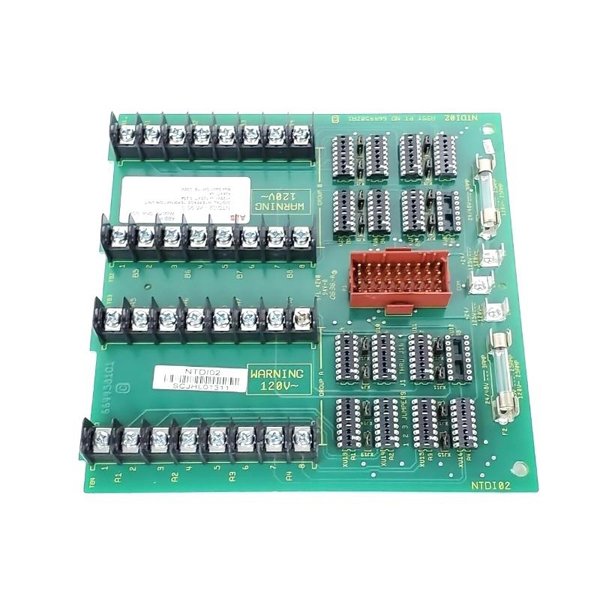

The ABB Bailey NTDI02 Digital I/O Termination Unit is an essential component of ABB’s INFI 90 and Symphony distributed control systems (DCS). Specifically designed for digital input and output signal management, the NTDI02 provides a structured and reliable interface between field devices—such as switches, relays, and contact sensors—and the control system’s I/O cards.

This termination unit facilitates clean and organized signal routing, ensuring dependable communication with control processors while simplifying installation and maintenance. Built for demanding industrial environments, the NTDI02 combines robust construction with ABB’s proven legacy DCS platform reliability, making it a trusted solution for both new systems and control system retrofits.

Technical Specifications

Applications

The NTDI02 is engineered to perform reliably across a wide spectrum of industrial applications where discrete digital signals are prevalent:

• Power Generation Plants – For handling circuit breaker status, relay signals, turbine trip detection, and alarm inputs.

• Oil and Gas Refineries – Interfaces discrete field devices like emergency shutdown buttons, limit switches, and valve position indicators.

• Chemical and Pharmaceutical Plants – Handles interlocks, status alarms, and digital safety signals in batch or continuous processes.

• Metals & Mining Facilities – For machine logic control, conveyor safety interlocks, and pump motor command signals.

• Water & Wastewater Systems – Receives input from tank level switches, motor starts, and control panel push buttons.

• Discrete Manufacturing Automation – Used in programmable safety relays, machine sensors, and start/stop command integration.

Product Advantages

• Digital Signal Optimization

  Designed specifically for clean digital input/output signal routing, reducing crosstalk and false triggering.

• Installation Flexibility

  Supports DIN rail or panel mounting, allowing easy integration into new and existing control cabinet layouts.

• Robust Electrical Isolation

  High dielectric strength and insulation resistance ensure protection against voltage surges and system noise.

• Clear Terminal Layout

  Organized, labeled terminals make field wiring straightforward and facilitate faster maintenance or troubleshooting.

• Long-Term System Compatibility

  Fully compatible with legacy and hybrid ABB control systems, enabling reuse and cost-effective upgrades.

• No Software Configuration Needed

  As a passive hardware interface, NTDI02 requires no software setup or firmware maintenance.

Frequently Asked Questions (FAQ)

1. What distinguishes NTDI02 from NTDI01?

   NTDI02 may support updated wiring layouts, increased density, or enhanced isolation for specific system configurations. Check with system documentation for model-specific comparisons.

2. Can NTDI02 be used for both digital inputs and outputs?

   Yes, it can handle both types of digital signals, depending on the configuration of the I/O module it is connected to.

3. Is it compatible with redundant digital I/O architectures?

   Absolutely. NTDI02 is often used in redundant I/O systems as part of high-availability control system designs.

4. How are terminals protected from electrical interference?

   The unit includes grounding terminals to handle shielded cables and reduce susceptibility to EMI and RFI.

5. What field wiring practices are recommended for optimal performance?

   Use twisted-pair or shielded wiring where appropriate, maintain proper grounding, and avoid running signal cables parallel to power cables.

6. Can this unit be retrofitted into older control cabinets?

   Yes, its form factor and terminal layout are compatible with many existing Bailey control cabinets and mounting configurations.

7. What kind of routine checks should be done during maintenance?

   Inspect for loose terminals, signs of corrosion, physical damage, and dust accumulation. Tighten screws if needed.

8. Are there specific wire gauges supported by NTDI02?

   Generally, it supports 0.5–2.5 mm² (20–14 AWG) wiring. Refer to ABB’s wiring guidelines for more precision.

9. Is this unit compliant with international electrical safety standards?

   Yes, it is CE marked and UL/CSA certified for industrial use.

10. Can this module be used in outdoor installations?

    It must be installed inside a sealed control panel or cabinet; direct outdoor use is not recommended.
