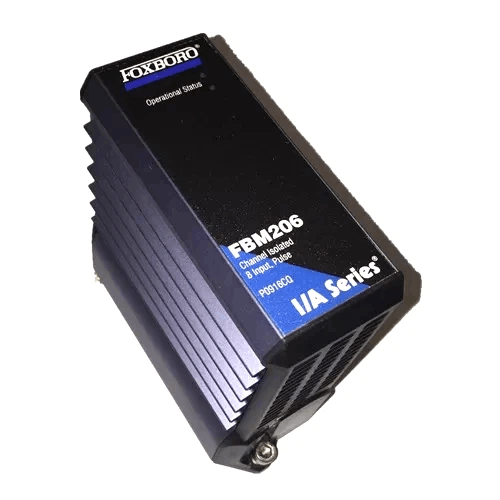

Foxboro FBM206 Pulse Input Module
Product Description
Foxboro FBM206 Pulse Input Module is used to receive high-speed pulse signals from devices such as pulse generators that measure machine speed. The FBM206 can receive up to 8 pulse signals with a frequency of up to 25kHz and transmit them to the Foxboro DCS.
The FBM206 has 8 pulse input channels, each of which receives a 2-wire pulse input signal from a sensor. The compatible input devices include vortex flowmeters, turbine flowmeters, solid-state or electromechanical contacts, and other sensors with similar pulse outputs.
Function & Features
- Pulse input: FBM206 supports pulse signal sources such as vortex/turbine flowmeters, solid-state relay contacts, mechanical contacts, etc.
- Pulse frequency: Each input channel of FBM206 can receive pulse input up to 25kHz.
- Programmable: FBM206 executes pulse input application, which can configure parameters such as pulse rate accumulation, resolution (based on module) and instrument scale factor.
Specifications
|
Parameter |
Specification |
|
Model |
FBM206 |
|
Input/Output Channels |
8 isolated independent pulse input channels |
|
Process I/O Communications |
Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus |
|
Input Pulse Rate |
10 Hz to 25 kHz |
|
Input Channels (4 or 8) |
- Accuracy: - Pulse Count: No missing pulses for pulse rate 10 to 25 kHz - Pulse Rate: 0.01% of reading, independent of rate - Field Device Cabling Distance: Maximum distance of the field device from the FBM is a function of compliance voltage (22.8 VDC), wire resistance, and voltage drop at the field device. |
FAQ
Q: What is the brand?
A:Foxboro
Q: What is the type?
A:Pulse Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
