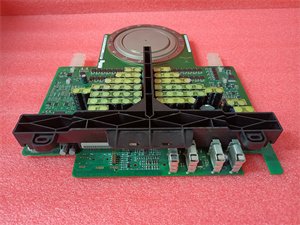

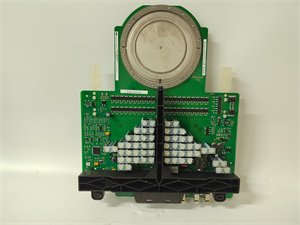

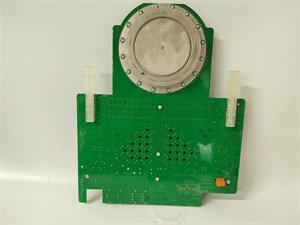

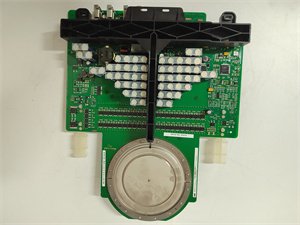

ABB 5SGY3545L0017 IGBT Module

The ABB 5SGY3545L0017 is a high-power Insulated Gate Bipolar Transistor (IGBT) module, specifically designed for demanding applications in renewable energy, industrial drives, and power conversion systems. As part of ABB’s 5SGY series (based on the PrimePhase™ IGBT technology), this module combines superior switching performance, reliability, and thermal management to handle high voltage and current in modern power electronics.

Technical Specifications

Key Features and Technology

PrimePhase™ IGBT Technology

• XTCemitter™ Structure: Reduces switching losses by up to 30% compared to previous generations, improving efficiency in high-power converters.
• Trench Gate Design: Enhances the charge carrier density, enabling higher current handling and faster switching speeds.
• Soft Recovery Diode: Integrates a co-packed fast-recovery diode with low reverse recovery charge (Q_rr), minimizing voltage overshoot during commutation.

Press-Fit Compact Package (PFCP)

• Rugged Mechanical Design: Eliminates soldered connections, reducing thermal fatigue and improving vibration resistance—critical for traction (e.g., trains) or offshore wind applications.
• Direct Copper Bonding (DCB) Substrate: Provides excellent thermal conductivity (170 W/m·K) and electrical isolation, enabling efficient heat dissipation to liquid-cooled cold plates.
• Self-Aligned Press-Fit Pins: Simplifies assembly in power modules, ensuring consistent contact pressure and reducing maintenance time during replacement.

High Power Density

• With a voltage rating of 4.5 kV and 3.5 kA current capability, this module is suitable for medium-voltage (MV) drives (e.g., 3.3 kV or 4.16 kV systems) in industries like mining, oil & gas, and marine propulsion.
• Supports multi-level converter topologies (e.g., NPC, H-bridge) for grid-connected inverters, where high voltage and low harmonic distortion are required.

  5SHY4045L0001 3BHB018162R0001 3BHE009681R0101 GVC750BE101

Reliability and Longevity

• Advanced Thermal Management: The low thermal resistance (0.002 K/W) allows sustained operation at high currents without overheating, even in ambient temperatures up to 50°C.
• Surge Current Capability: Can withstand short-circuit currents up to 10,000 A (I_SC) for 10 ms, providing robust fault protection in converter systems.
• Life Cycle Management: ABB’s Power Module Diagnostics (PMD) technology monitors key parameters like junction temperature and bond wire integrity, enabling predictive maintenance and avoiding unexpected failures.

Typical Applications

1. Renewable Energy

   • Wind Turbines: Used in full-power converters (up to 10 MW) for direct-drive or geared turbines, enabling efficient power conversion from variable-speed generators to the grid.
   • Solar Farms: Integrates into MV string inverters or central inverters, supporting high-voltage DC (HVDC) transmission to reduce cable losses.

2. Industrial Drives

   • Large Motor Control: Drives pumps, compressors, and motors in cement plants, steel mills, and water treatment facilities, where energy efficiency and reliability are critical.
   • Marine Propulsion: Powers electric ship drives (e.g., azimuth thrusters) in hybrid or fully electric vessels, meeting IMO Tier III emission standards.

3. Grid Infrastructure

   • HVDC Transmission: Used in voltage source converters (VSC-HVDC) for transmitting renewable energy over long distances (e.g., offshore wind connections).
   • Static Var Compensators (SVCs): Improves power quality by stabilizing voltage and reducing reactive power in distribution networks.

4. Traction Systems

   • High-Speed Rail: Equips traction inverters for electric trains, delivering smooth acceleration and regenerative braking with low harmonic emissions.
   • Urban Transit: Used in tram and subway systems, where compact size and high efficiency are essential for rolling stock.

Installation and Thermal Considerations

• Cooling System: Requires a liquid-cooling loop with deionized water or glycol mixture, maintaining a coolant temperature between 30°C and 50°C to optimize thermal performance.
• Mechanical Mounting: The module must be pressed onto a cold plate with uniform pressure (typically 5–8 kN) to ensure optimal thermal contact. ABB provides specialized tools for alignment and torque specification.
• Electrical Connections: Press-fit pins interface directly with the PCB or busbar, eliminating soldering and reducing inductance in the power loop. For high-current applications, flexible copper busbars are recommended to minimize mechanical stress.

Commissioning Steps:

1. Verify the cooling system flow rate (≥5 L/min) and pressure (≤3 bar).
2. Use ABB’s Drive composer Pro software to configure gate drive parameters (e.g., V_ge, dead time) based on the application’s voltage and current requirements.
3. Perform a short-circuit test (using a dedicated test rig) to validate the module’s fault-handling capability and ensure compliance with IEC 60747-9.

Compliance and Support

• Standards: Meets IEC 60747-9 (semiconductor devices for power electronics), IEC 61800-3 (EMC for adjustable speed drives), and RoHS 3 for environmental compliance.
• Warranty: 3-year standard warranty, extendable with ABB’s ServiceCare plans for extended coverage and priority support.
• Design Support: ABB’s Power Electronics Lab offers simulation tools (e.g., Simplorer) and application engineering services to optimize converter design for efficiency and reliability.

Summary

The ABB 5SGY3545L0017 is a cutting-edge IGBT module that exemplifies ABB’s leadership in high-power semiconductor technology. Its combination of PrimePhase™ chips, rugged press-fit packaging, and advanced thermal design makes it a cornerstone in next-generation power conversion systems. Whether deployed in offshore wind farms, industrial megadrives, or HVDC grids, this module delivers unmatched efficiency, reliability, and scalability, enabling customers to meet the challenges of decarbonization and digitalization in the energy sector. By choosing the 5SGY3545L0017, engineers can design systems that are both future-proof and optimized for today’s most demanding power applications.
