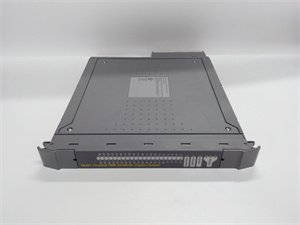

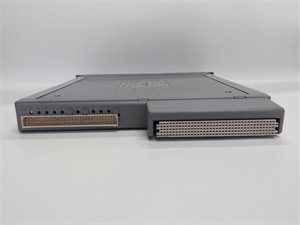

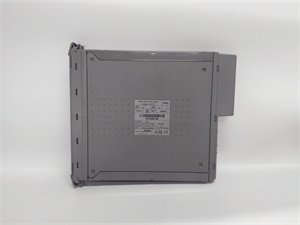

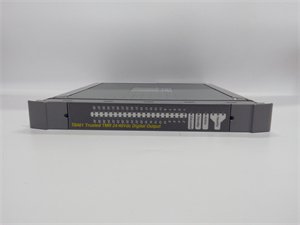

ICS Triplex T8461 Digital Output Module

The ICS Triplex T8461 is a high-performance digital output module designed for critical industrial control applications. It features a Triple Modular Redundant (TMR) architecture, ensuring unparalleled reliability and fault tolerance. This module is ideal for applications requiring precise and reliable digital outputs, such as process control, safety systems, and power generation.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability and Fault Tolerance

The ICS Triplex T8461 employs a TMR architecture, providing continuous operation even if one channel fails. It features redundant components and comprehensive diagnostics for rapid fault detection and isolation.

Advanced Signal Processing

This module supports 40 digital output channels, each capable of handling up to 0.75 A continuously. It features a wide operating voltage range (20 to 32 V DC) and supports output voltages from 18 to 60 V DC, ensuring compatibility with various industrial devices.

Robust Design for Harsh Environments

Constructed with high-quality materials, the ICS Triplex T8461 can operate reliably in extreme temperatures (-40°C to +70°C) and high humidity (5% to 95% RH non-condensing). Its compact design and lightweight construction (1.32 kg) make it easy to install and integrate into existing systems.

Comprehensive Diagnostics and Safety Features

The module includes built-in diagnostics and monitoring capabilities, enabling real-time fault detection and alerting. It supports hot-swappable modules and automatic fault handling, minimizing downtime.

Typical Application Scenarios

The ICS Triplex T8461 is widely used in industries where high reliability and safety are paramount, such as:

• Process Control: Ensuring precise control of industrial processes.

• Safety Systems: Managing critical safety functions in hazardous environments.

• Power Generation: Monitoring and controlling power systems to ensure stability.

• Transportation: Ensuring reliable operation in transportation control systems.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ICS Triplex T8461, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 to 32 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.

Maintenance Suggestions

Regular maintenance is crucial for extending the lifespan of the ICS Triplex T8461. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.

Service and Guarantee Commitment

The ICS Triplex T8461 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
