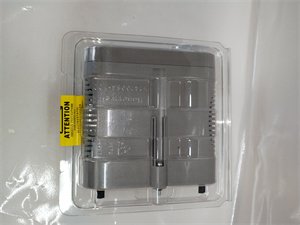

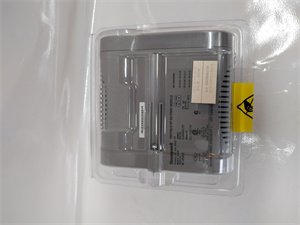

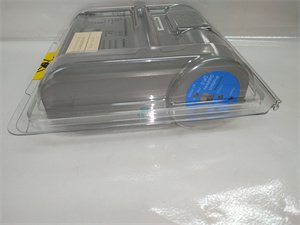

Honeywell HONWYWELL 8C-IP0102 Process Input Module

The Honeywell 8C-IP0102 is a high-density analog input module designed for Honeywell’s Experion® PKS distributed control systems. This advanced I/O module provides 16 fully isolated channels for precise process measurement in critical industrial applications.

Engineered for reliability in harsh environments, the Honeywell 8C-IP0102 delivers exceptional measurement accuracy and noise immunity, making it ideal for refinery, petrochemical, and power generation applications. Its rugged construction and wide operating temperature range ensure dependable performance in both indoor and outdoor installations.

As part of Honeywell’s innovative control system architecture, this module supports hot-swap replacement and online configuration changes, minimizing downtime during maintenance operations. The Honeywell 8C-IP0102 represents the latest in process measurement technology with enhanced diagnostics and cybersecurity features.

Detailed Parameter Table

Core Advantages and Technical Highlights

Precision Measurement:

The module’s 16-bit resolution and 0.05% accuracy provide exceptional measurement fidelity for critical process variables, enabling tighter control and improved product quality.

Advanced Isolation:

Each channel features triple isolation (input-to-output, channel-to-channel, and channel-to-ground) with 1500V protection, eliminating ground loops and ensuring signal integrity in electrically noisy environments.

Flexible Configuration:

Every channel can be independently configured for current (4-20mA), voltage (0-10V), or bipolar voltage (±10V) input without hardware changes, simplifying spare parts management.

Cybersecurity Protection:

Built-in security features include secure firmware validation, authenticated configuration changes, and encrypted communications that meet ISA/IEC 62443 standards.

Enhanced Diagnostics:

Continuous monitoring of channel health, wire breaks, and out-of-range conditions with timestamped event logging for predictive maintenance.

High Availability:

Supports online module replacement and automatic configuration recovery, critical for 24/7 process operations.

Typical Application Scenarios

Refinery Process Units:

Precise measurement of temperature, pressure, and flow signals in crude distillation and catalytic cracking units.

Gas Processing Plants:

Monitoring of compressor discharge pressures and gas analyzer outputs in LNG facilities.

Power Plant Control:

Turbine monitoring with vibration and temperature inputs in combined cycle power generation.

Pharmaceutical Manufacturing:

Critical parameter monitoring in sterile processing and bioreactor control systems.

Pulp & Paper Mills:

Consistency and pH measurement in paper machine wet-end control systems.

Installation Commissioning and Maintenance

Installation Guidelines:

Mount the Honeywell 8C-IP0102 in a Honeywell-approved FTA (Field Terminal Assembly) or equivalent enclosure. Use shielded, twisted-pair cables for all field connections with proper grounding. Maintain minimum 50mm clearance around module for proper ventilation.

Commissioning:

Verify proper termination at FTA

Configure channel parameters via Control Configurator software

Perform loop checks for all channels

Verify alarm thresholds and scaling

Test module redundancy (if applicable)

Maintenance:

Annual calibration verification

Quarterly inspection of terminal connections

Biannual firmware updates

Replacement of internal capacitors after 10 years

Periodic cleaning of ventilation areas

Service and Guarantee Commitment

Honeywell provides a 36-month warranty for the 8C-IP0102, including:

24/7 global technical support

On-site troubleshooting assistance

Advanced replacement program

Firmware update services

Cybersecurity vulnerability assessments
