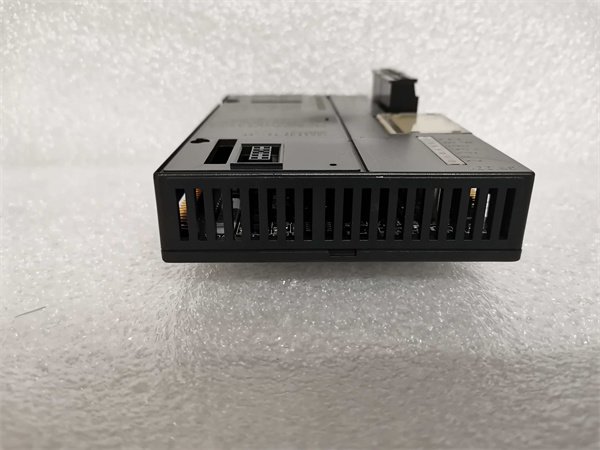

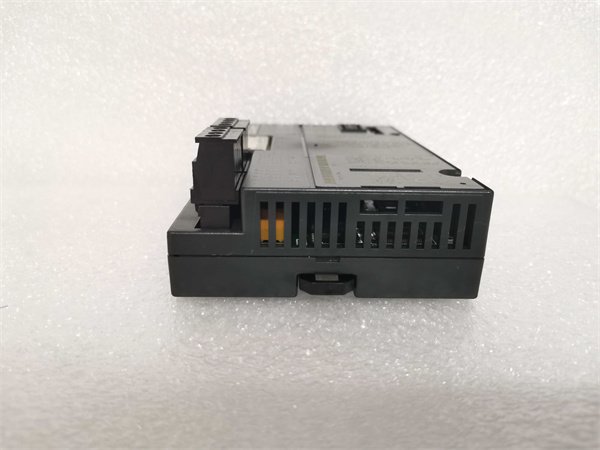

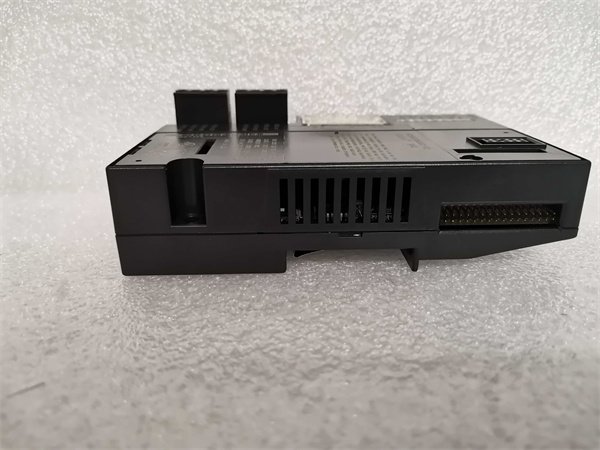

General Electric IC695CPK330CA High-Performance CPU Module

GE IC695CPK330CA is a high-performance CPU module engineered exclusively for GE’s RX3i Series PLC systems, serving as the “control core” for complex industrial automation applications that demand fast processing, extensive I/O support, and reliable redundancy. Unlike entry-level RX3i CPUs (e.g., GE IC695CPU310), GE IC695CPK330CA delivers dual-core processing power, expandable memory, and multi-protocol communication—making it ideal for scenarios like multi-line manufacturing, process control, and mission-critical systems where downtime is unacceptable.

As a flagship component of the RX3i ecosystem, GE IC695CPK330CA bridges advanced control logic with real-world industrial devices: its 1.0 GHz dual-core processor executes complex PID loops and concurrent tasks, while Gigabit Ethernet ports enable seamless integration with enterprise MES (e.g., SAP) and IIoT platforms (e.g., Azure IoT Hub). For example, in a large-scale automotive assembly plant, GE IC695CPK330CA controls 8 robotic welding stations (via GE IC200MDL650 output modules), logs production data for quality tracking, and synchronizes with a central SCADA system—all while maintaining <1ms response time to ensure precise part alignment.

Detailed Parameter Table

Core Advantages and Technical Highlights

Dual-Core Processing for Fast, Concurrent Control: GE IC695CPK330CA’s 1.0 GHz dual-core processor enables 16 concurrent tasks—dedicating one core to real-time control (e.g., PID loops) and the other to data logging/communication. A chemical plant using the module to control 12 distillation towers runs 8 PID tasks (for temperature/pressure regulation) and 4 data logging tasks simultaneously, reducing processing latency by 40% compared to single-core CPUs. This parallel processing also avoids bottlenecks during peak loads, ensuring consistent performance even with 1000+ active I/O points.

Expandable Memory for Large-Scale Applications: With 2 GB DDR4 RAM (expandable to 8 GB via GE IC695MEM002) and 1 GB Flash, GE IC695CPK330CA stores complex control programs (e.g., 1000+ logic rungs) and long-term historical data. A municipal wastewater treatment plant expanded the module’s RAM to 4 GB, enabling 12 months of hourly data logging (pH, turbidity, chemical dosage) for regulatory compliance. This eliminated the need for external data loggers, saving $6,000 annually in hardware and maintenance costs.

Hot-Standby Redundancy for Zero Downtime: GE IC695CPK330CA supports <1ms failover with a second module and GE IC695RCM002—critical for mission-critical applications like power generation or pharmaceutical manufacturing. A nuclear power plant’s auxiliary cooling system uses redundant GE IC695CPK330CA modules; during a primary CPU failure, failover occurred in 0.8ms, preventing coolant flow disruptions and avoiding a $500,000 equipment damage risk. This redundancy ensures 99.999% system availability.

Multi-Protocol Communication for Seamless Integration: Equipped with 2 Gigabit Ethernet ports (Ethernet/IP, PROFINET) and 1 RS-485 port (Modbus RTU), GE IC695CPK330CA connects to diverse industrial systems. A food & beverage plant uses one Ethernet port for PROFINET communication with robotic packers, the second for Ethernet/IP to a Siemens Opcenter MES, and RS-485 for Modbus RTU with legacy temperature sensors. This multi-protocol support avoided $4,000 in protocol converters and simplified system architecture.

Rugged Design for Harsh Environments: Rated for -25°C to +70°C operation and 2000-hour salt spray resistance, GE IC695CPK330CA thrives in extreme conditions—from frozen food warehouses (-20°C) to desert-based solar farms (65°C). A mining operation using the module to control underground conveyor systems reported no performance issues over 3 years, while standard CPUs failed every 18 months due to dust and temperature fluctuations—saving $3,600 in annual replacement costs.

Typical Application Scenarios

GE IC695CPK330CA excels in complex, high-stakes automation applications across industries, with three high-impact use cases:

In automotive assembly (multi-model production), GE IC695CPK330CA controls 10 assembly stations, each with 64 I/O points (proximity sensors, robotic grippers). Its dual-core processor runs 12 concurrent tasks (station control, quality checks, recipe management) and synchronizes with a central MES via Gigabit Ethernet. When switching between car models (e.g., sedan to SUV), the module loads new recipes in <2 seconds—no downtime required. A Detroit-based plant using this setup increased production flexibility, enabling 5 model changes per shift (up from 2 with older CPUs) and boosting annual output by 150,000 units.

In pharmaceutical sterile manufacturing, GE IC695CPK330CA manages 8 cleanrooms (temperature, humidity, pressure control) with 256 PID loops. Its redundant configuration ensures 24/7 operation, while AES-128 encrypted firmware updates prevent unauthorized modifications (critical for FDA 21 CFR Part 11 compliance). The module logs 100,000+ batch data points daily, storing 2 years of records in expandable memory. During a recent FDA audit, the plant’s data integrity and redundancy setup avoided $100,000 in compliance penalties.

In renewable energy (utility-scale solar farms), GE IC695CPK330CA controls 500+ solar inverters (via GE IC200NDR001-24 digital input modules) and transmits performance data to Azure IoT Hub via MQTT. Its -25°C to +70°C range withstands desert temperature swings, while over-temperature protection prevents damage during heatwaves. The module’s PID control optimizes inverter output based on sunlight intensity, increasing energy production by 8% annually compared to basic CPU-controlled systems—saving the farm $200,000 in annual energy losses.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC695CPK330CA, confirm compatibility with the RX3i chassis (e.g., GE IC695CHS024) and power supply (GE IC695PWR240). Ensure the environment meets -25°C to +70°C and 5%–95% RH (non-condensing); avoid mounting near high-voltage cables (>480V AC) or EMI sources (e.g., variable-speed drives). Required tools: Torque screwdriver (0.4–0.6 N·m), ESD-safe gloves, multimeter, and Proficy Machine Edition v10.0+. Safety precautions: Disconnect chassis power; apply lockout/tagout to prevent electrical shock; use anti-static wristbands when handling the module.

Slide GE IC695CPK330CA into an empty RX3i chassis slot until it engages the backplane, then secure with the chassis locking lever. For redundancy, install a second GE IC695CPK330CA in an adjacent slot and connect the GE IC695RCM002 redundancy module. Wire communication cables: Ethernet to MES/IIoT, RS-485 to legacy sensors, and USB to a programming PC. Power on the chassis; verify LEDs: green (power/run/communication), no red (fault). Use Proficy Machine Edition to upload the control program, configure PID loops (setpoint, gain), and enable data logging. Test redundancy by powering off the primary CPU—confirm failover in <1ms.

Maintenance suggestions: For daily use, monitor GE IC695CPK330CA’s LEDs and Proficy diagnostics—red LEDs indicate faults (check for “program error” or “redundancy sync failure”); amber LEDs signal low memory or communication warnings. Every 6 months, clean the module with compressed air (remove dust from vents) and retighten communication cables. Annually, back up the program to a PC, update firmware (via encrypted OTA update), and test redundancy 3x (simulate CPU/power/communication failures). Replace the backup battery (GE part #IC695BAT001) every 2 years to maintain RAM data retention. Use only GE-approved GE IC695CPK330CA spares—third-party modules may break redundancy or void certifications.
