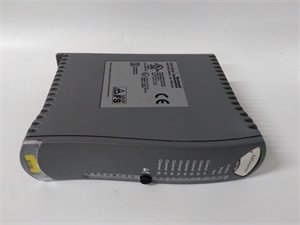

ICS Triplex T9451 Digital Output Module

The ICS Triplex T9451 is a high-performance digital output module designed for critical industrial control applications. It is part of the AADvance Controllers series, known for its robustness, reliability, and advanced safety features. This module is designed to provide precise control of external devices, ensuring fault tolerance and continuous operation even in harsh industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability and Fault Tolerance

The ICS Triplex T9451 employs Triple Modular Redundancy (TMR) technology, ensuring high reliability and fault tolerance. It supports dual scan times of 1.174 milliseconds and 2.202 milliseconds, providing rapid response capabilities.

Robust Design for Harsh Environments

Constructed with high-quality, non-flammable plastic casing, the ICS Triplex T9451 can operate reliably within a wide temperature range of -20°C to +60°C. It features overcurrent and overvoltage protection, ensuring long-term durability.

Advanced Electrical Characteristics

The module supports a nominal operating voltage of 24 V DC, with a backplane voltage range of 18 V DC to 32 V DC. Each of its 8 output channels can handle up to 1 A continuous current, ensuring robust performance.

Safety and Compliance

The ICS Triplex T9451 meets stringent safety standards, including IEC 61508 SIL 3 certification. It also complies with international safety and environmental standards such as CE, UL, and CSA.

Modular and Expandable

The module is designed for easy integration into existing systems, with a compact form factor that fits standard DIN rail installations. It can be expanded with additional modules, such as the T9892 terminal assembly module, to provide more output channels.

Typical Application Scenarios

The ICS Triplex T9451 is widely used in various industrial sectors, including manufacturing, energy, and process control. It is ideal for applications requiring high precision and reliability, such as:

• Manufacturing: Controlling production lines and equipment.

• Energy: Managing power generation and distribution systems.

• Process Control: Regulating temperature, flow, and pressure in chemical and oil & gas industries.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ICS Triplex T9451, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.

Maintenance Suggestions

Regular maintenance is crucial for extending the lifespan of the ICS Triplex T9451. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance, and ensure that spare parts are readily available to minimize downtime.

Service and Guarantee Commitment

The ICS Triplex T9451 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
