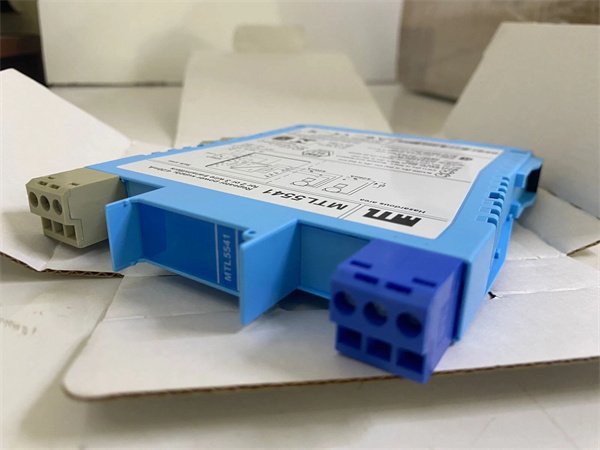

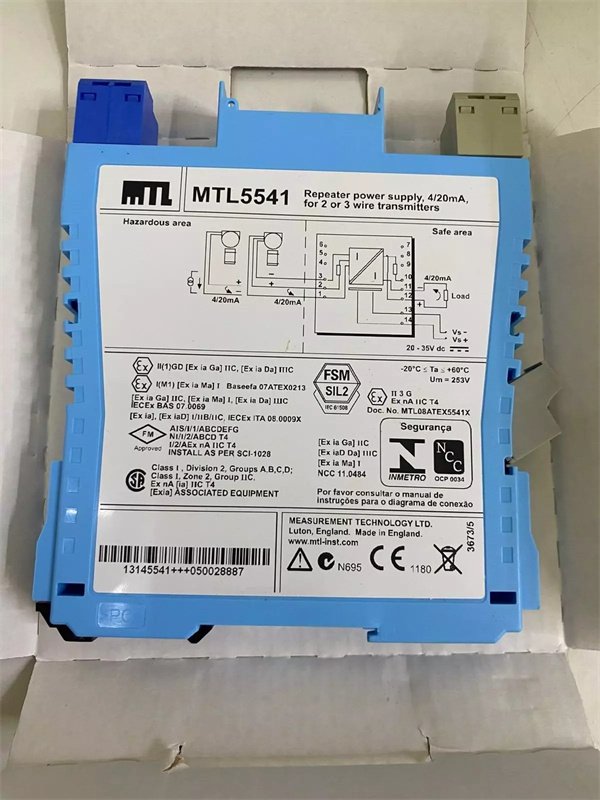

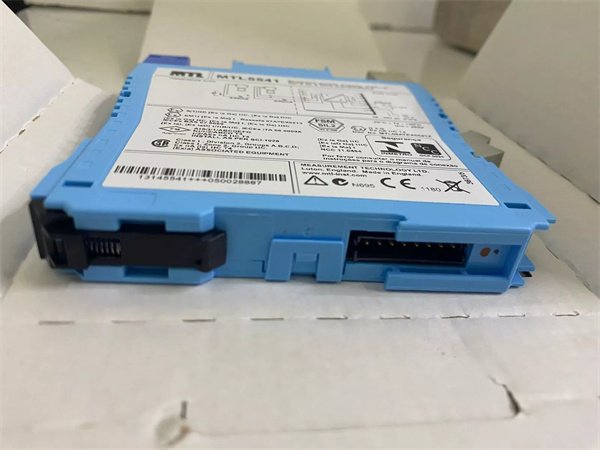

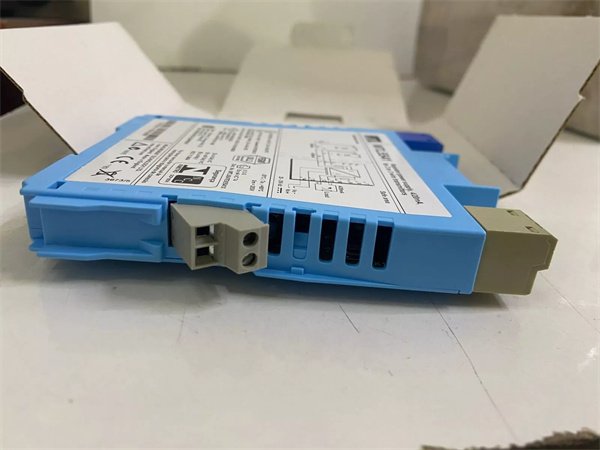

MTL 5541 Industrial Safety Barrier Module

The MTL 5541 is a high-performance repeater power supply module designed for industrial applications. It provides a fully-floating DC supply for energizing a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area and repeats the current in another floating circuit to drive a safe-area load. This module is ideal for ensuring reliable and safe operation in hazardous environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Safety and Reliability

The MTL 5541 is certified to meet ATEX, IECEx, UL, and CE standards, ensuring compliance with global safety regulations. It provides robust isolation capabilities to ensure accurate data transmission in demanding industrial environments.

Versatile and Flexible

The module supports a wide range of input and output signals, making it a versatile solution for various applications. It features a compact design that allows for easy installation in control cabinets or on DIN rails, saving valuable space.

Advanced Isolation Technology

The MTL 5541 provides galvanic isolation and surge protection, ensuring that sensitive equipment is protected from electrical noise and disturbances. It operates reliably within a wide voltage range of 20-35 V DC and can handle input and output currents of up to 80 mA.

Typical Application Scenarios

The MTL 5541 is widely used in:

• Manufacturing: For protecting sensitive equipment from electrical noise and transients.

• Oil and Gas: For reliable signal isolation in hazardous environments.

• Chemical Plants: For ensuring accurate data transmission and equipment protection.

• Food and Beverage: For maintaining signal integrity in industrial automation systems.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation

Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.

Maintenance Suggestions

Regularly inspect the module for signs of wear or damage. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.

Service and Guarantee Commitment

The MTL 5541 is backed by a comprehensive warranty and after-sales service commitment. Eaton guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly.
