General Electric IS215UCCAH3A Control Module

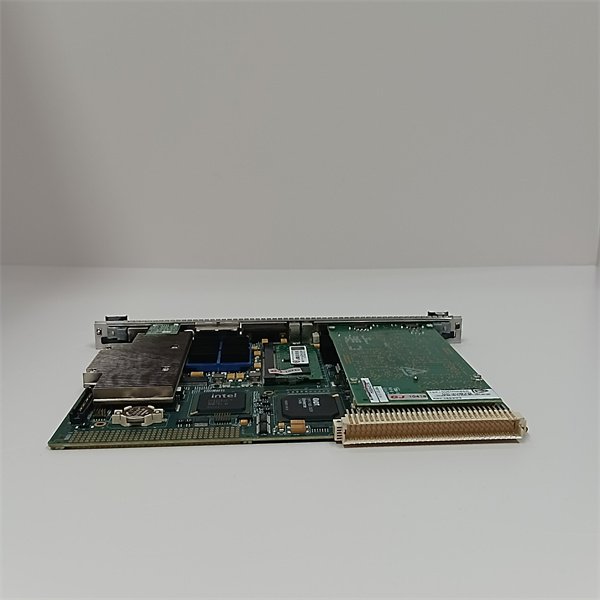

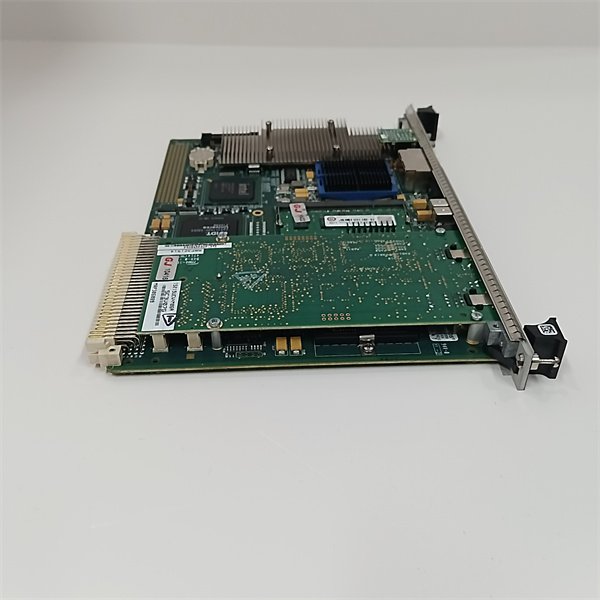

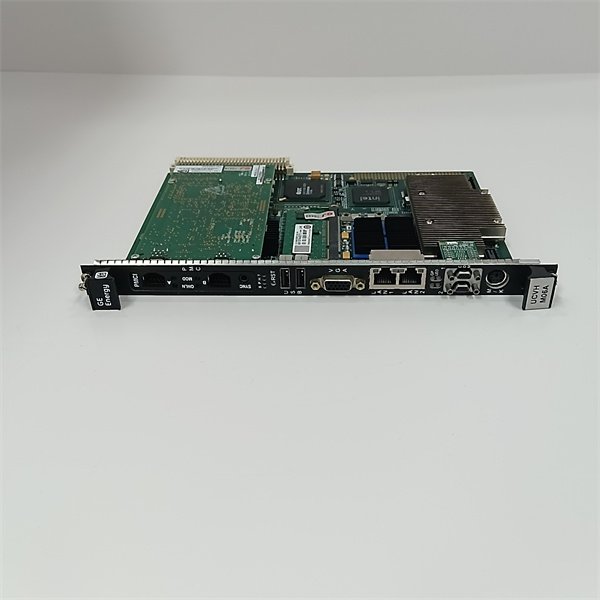

The GE IS215UCCAH3A is a printed circuit board (PCB) integral to the GE Mark VI Speedtronic Series. As a UCCx Controller, it plays a pivotal role in the automation system. This component is a CompactPCI (cPCI) single – board computer, designed to execute application code with high efficiency. Running on the QNX Neutrino operating system, renowned for its high – speed and high – reliability multitasking capabilities in industrial applications, the IS215UCCAH3A offers seamless operation. It is a key computing engine within the Mark VI controller, enabling effective management of heavy – duty gas and steam turbines. Mounted in a cPCI enclosure, it communicates with its I/O packs via onboard network interfaces, ensuring smooth data flow and control within the system.

Technical Specifications

Reliable Processing Power: The GE IS215UCCAH3A comes equipped with a 650 MHz Intel Celeron processor. This ensures that it can handle complex application code running on the QNX Neutrino operating system without a hitch, providing reliable performance for continuous operation in industrial settings.

Efficient Communication: With its 10BaseT/100BaseTX ethernet port for connectivity to the Unit Data Highway (UDH), the IS215UCCAH3A enables fast and stable data transfer between the controller and other components in the system. The two COM ports further enhance its communication capabilities, allowing for connection with a variety of devices.

Convenient Physical Design: The board has two slots for mezzanine cards on its front faceplate, providing expandability options. Additionally, it has ejectors and injectors, though it’s crucial to lock the injectors after board insertion to ensure proper booting. The presence of status LEDs also allows for easy monitoring of the board’s operational status.

The GE IS215UCCAH3A finds extensive use in power generation plants. In gas and steam turbine control systems, it serves as a core controller within the Mark VI Speedtronic Series. Here, it manages the operation of turbines, ensuring optimal performance, efficiency, and safety. For instance, it can precisely regulate the speed and power output of turbines based on real – time data from sensors. In oil and gas refineries, the IS215UCCAH3A is used to control various processes. It can manage the operation of pumps, compressors, and other critical equipment, helping to maintain the smooth flow of operations and prevent potential breakdowns. Overall, its application in these industrial scenarios is vital for maintaining the integrity and productivity of complex industrial processes.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IS215UCCAH3A, ensure that the CPCI enclosure is properly prepared. Check for any physical damage to the enclosure and clean it if necessary. Verify that all the required jumper settings on the IS215UCCAH3A board are correctly configured as per the manufacturer’s guidelines in user guides and manuals. Also, make sure that the lithium battery on the board, which powers the CMOS, is in good condition.

Maintenance recommendations: Regularly monitor the operating temperature of the IS215UCCAH3A as it should remain within the 0 – 60 degrees Celsius range. Check the status LEDs on the board to identify any potential issues. Since the board is air – cooled by a fan at the bottom of the CPCI rack, ensure that the fan is working properly. If the fan fails, it can lead to overheating and potential damage to the controller. Periodically review the jumper settings to confirm they haven’t been accidentally changed.
